RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)

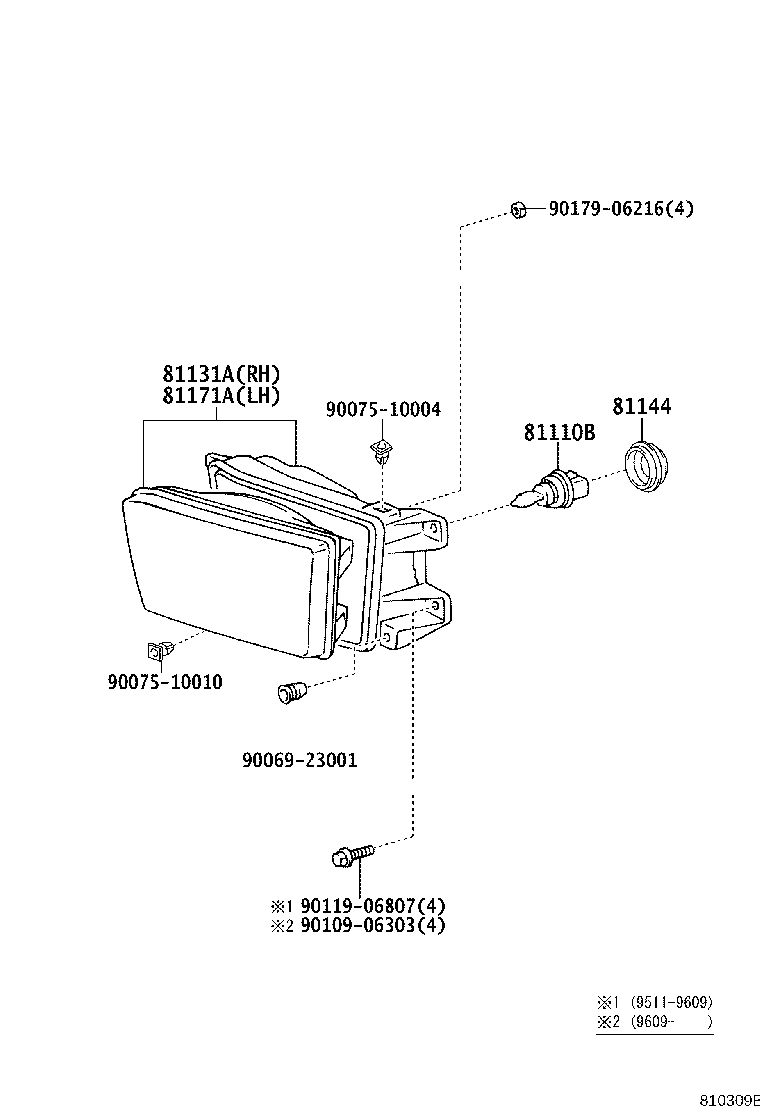

Click highlighted areas on diagram

diagram 81110B 81131A 81144 81171A 9006923001 9007510004 9007510010 9010906303 9011906807 9017906216
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

KDN185,KZN185,RZN18#,VZN18#

12V 60/55W,*HAL *WH

 2
81131A - UNIT, HEADLAMP, RH
81130-35240

KZN185,RZN185,VZN185

 1
81130-35241

KZN185,RZN185,VZN185

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

KDN185,KZN185,RZN18#,VZN18#

 2
81171A - UNIT, HEADLAMP, LH
81170-35220

KZN185,RZN185,VZN185

 1
81170-35221

KZN185,RZN185,VZN185

 1
Common parts
90069-23001
90075-10004
90075-10010
90109-06303
90119-06807
90179-06216
