RZN185W-GAMVK (1995)
Toyota Hilux Surf

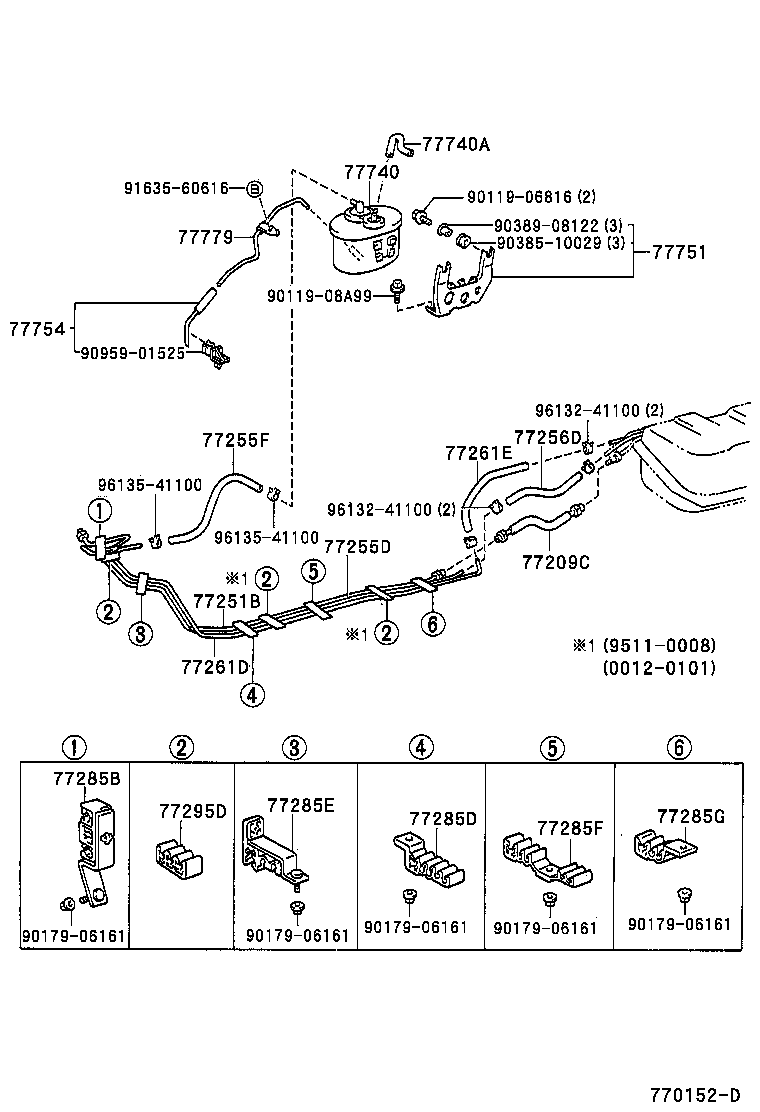

ILLUST NO. 2 OF 2(9511-0112)RZN18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-35330 |
RZN18#,VZN18# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D150 |
RZN18# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35740 |
RZN18#,VZN18# |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
RZN18#,VZN18# *H,L=300 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 23273-75040 |
RZN18#,VZN18# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35520 |
RZN18#,VZN18# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-35100 |
RZN18#,VZN18# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35230 |
RZN18#,VZN18# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35280 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35260 |
RZN18#,VZN18# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35290 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35300 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35110 |
RZN18#,VZN18# |
3 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-35320 |
RZN18#,VZN18# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-75110 |
RZN18# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35100 |
RZN18#,VZN18# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35330 |
RZN18# |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-35030 |
RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90119-06816 | ||||
| 90119-08A99 | ||||
| 90179-06161 | ||||
| 90385-10029 | ||||
| 90389-08122 | ||||
| 90959-01525 | ||||
| 91635-60616 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||

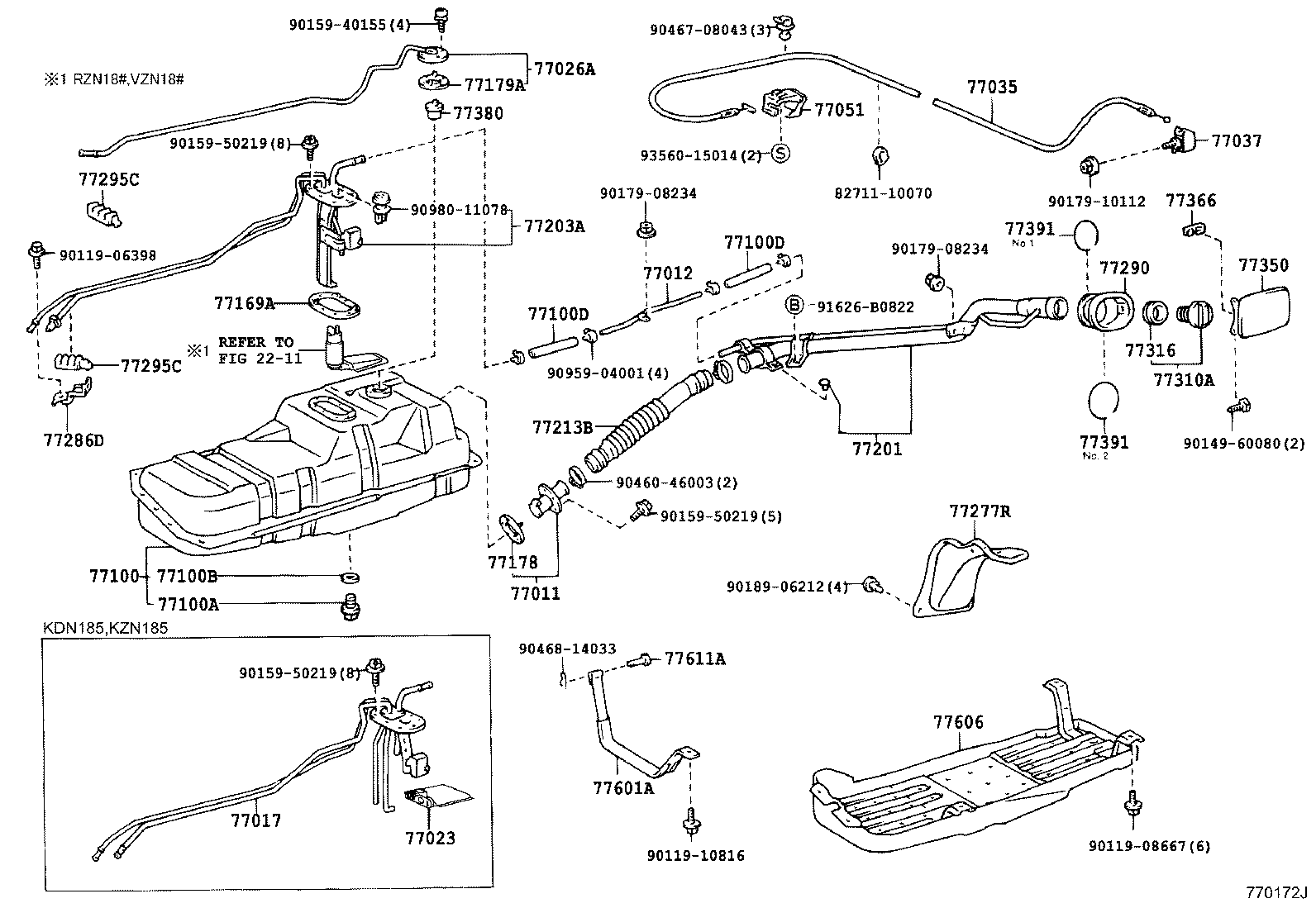

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-35090 |
RZN18#,VZN18# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-35080 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D300 |
RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 77001-3D290 |
KDN185,KZN185,RZN18#,VZN18# ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77279-35040 |
KDN185,KZN185,RZN18#,VZN18# 長さ=170 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77279-35040 |
KDN185,KZN185,RZN18#,VZN18# 長さ=170 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
KZN185,RZN18#,VZN18# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35500 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35460 |
RZN18#,VZN18# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
KDN185,KZN185,RZN18#,VZN18# 長さ=368 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-35060 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
RZN18#,VZN18# |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
RZN18#,VZN18# |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
RZN18#,VZN18# |
1 | ||
| 77310-35070 |
RZN185,VZN185 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-35010 |
KDN185,KZN185,RZN18#,VZN18# NO.2 |
1 | ||
| 77391-14020 |
KDN185,KZN185,RZN18#,VZN18# NO.1 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-35010 |
KDN185,KZN185,RZN18#,VZN18# NO.2 |
1 | ||
| 77391-14020 |
KDN185,KZN185,RZN18#,VZN18# NO.1 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-35060 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-35010 |
KZN185,RZN18#,VZN18# |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08118 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-06398 | ||||
| 90119-08667 | ||||
| 90119-10816 | ||||
| 90149-60080 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90179-08234 | ||||
| 90179-10112 | ||||
| 90189-06212 | ||||
| 90460-46003 | ||||
| 90467-08043 | ||||
| 90468-14033 | ||||
| 90959-04001 | ||||
| 90980-11078 | ||||
| 91626-B0822 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 2211 | ||||
