RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

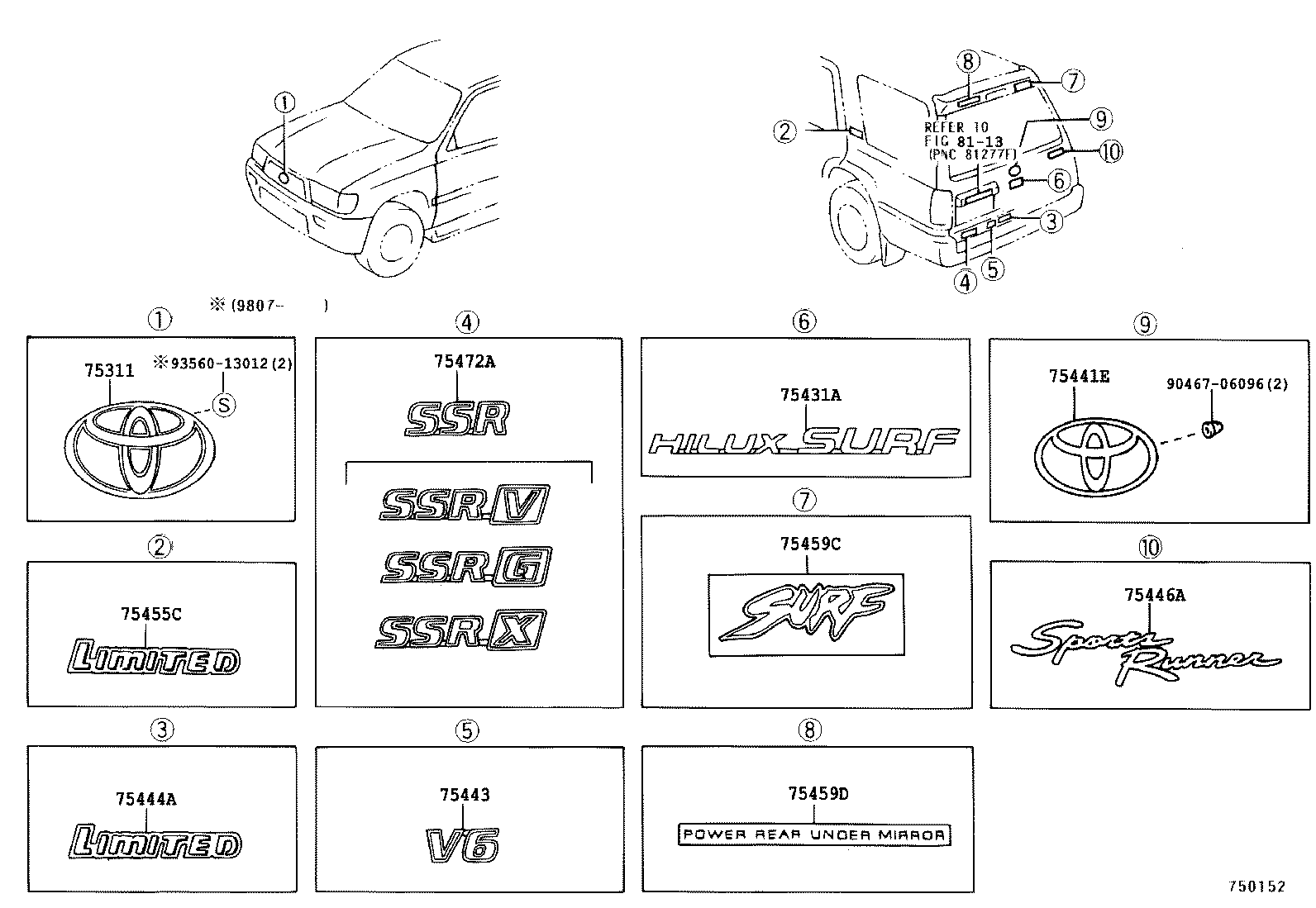

Click highlighted areas on diagram

diagram 75311 75431A 75441E 75443 75444A 75446A 75455C 75459C 75459D 75472A 8113 9046706096 9356013012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-35140

KZN185,RZN185,VZN185

 1
75431A - EMBLEM, BACK DOOR, NO.1
75431-35010

KZN185,RZN185,VZN185

 1
75459C - MARK, REAR VISOR NO.1
75459-35020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
75459D - MARK, REAR VISOR NO.2
75459-35030B2

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

SILVER ME,3K4 ,751 ,8L7

 1
75459-35030B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

DARK GRAY ME,1A5 ,8L6 ,926

 1
75472A - PLATE, REAR BODY NAME, NO.2
75442-35030

KZN185,RZN185..SSR

SSR

 1
75442-35040

KZN185,RZN185..SSRV

SSR V

 1
Common parts
90467-06096
93560-13012
Linked diagrams
8113
