RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

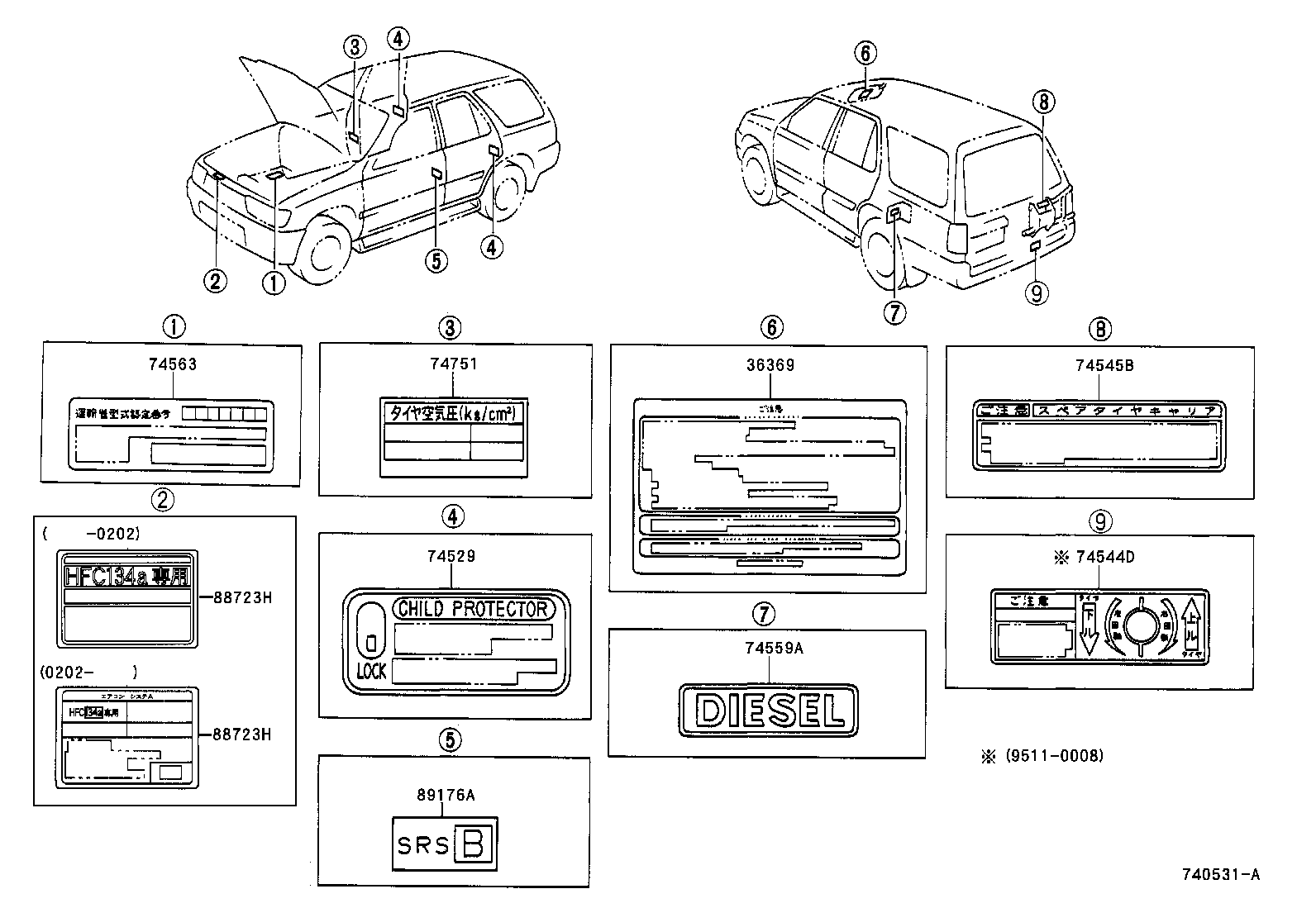

Click highlighted areas on diagram

diagram 36369 74529 74544D 74545B 74559A 74563 74751 88723H 88723H 89176A
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-35440

KZN185,RZN185..WIB..(SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ﾏﾙﾁ ﾓ-ﾄﾞ 4WD)

 1
36369-35370

KZN185,RZN185..SSR,SSRV,SSRX

 1
36369-35430

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

KDN185,KZN185,RZN18#,VZN18#

 2
74544D - PLATE, TIRE CARRIER CAUTION
74544-35080

KZN185,RZN18#,VZN18#

 1
74545B - LABEL, TIRE CARRIER NOTICE, NO.2
74545-35020

KZN185,RZN185,VZN185..WIB

 1
74545-35030

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-26260

RZN185

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-35411

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
42661-35410

KZN185,RZN185,VZN185..WIB

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20030

KDN185,KZN185,RZN18#,VZN18#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20030

KDN185,KZN185,RZN18#,VZN18#

 1
