RZN185W-GAMVK (1995)
Toyota Hilux Surf

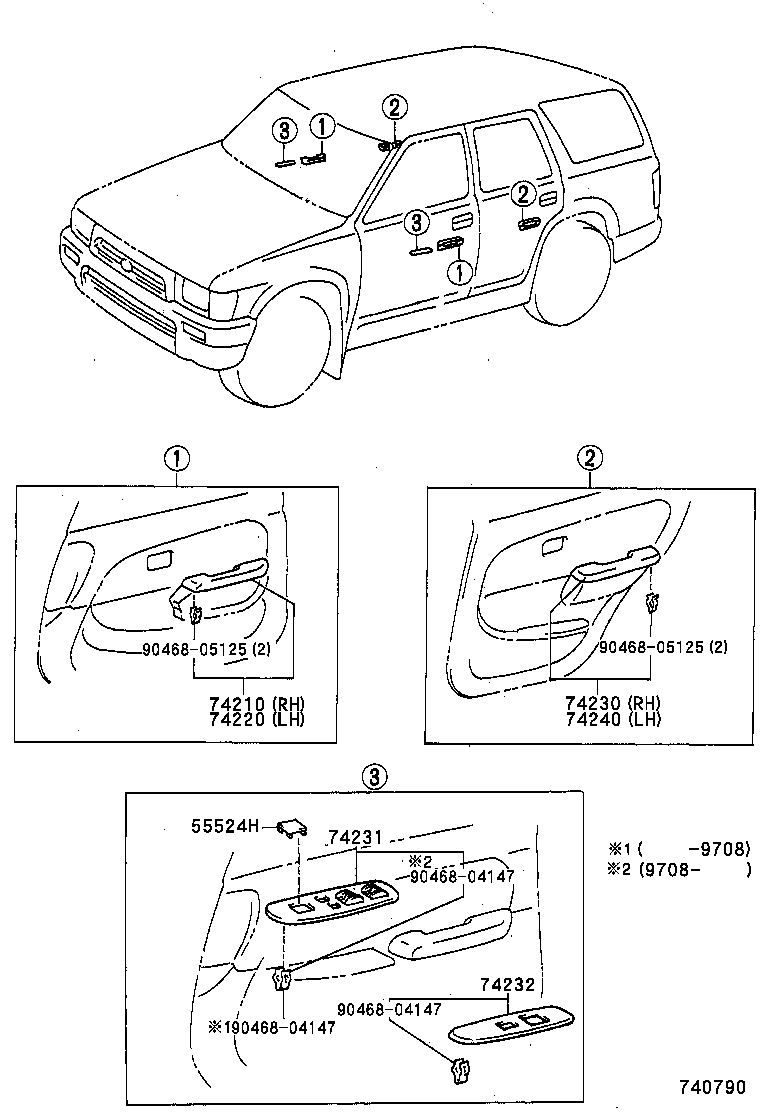

ILLUST NO. 1 OF 2(9511- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524H - COVER, SWITCH BASE HOLE | ||||
| 55524-35010C0 |
KZN185,RZN185..SSR BLACK,TRIM1# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-35070E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74210-35070B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| 74210-35060B0 |
KZN185,RZN185..SSR MOONMIST,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-35070E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74220-35060B0 |
KZN185,RZN185..SSR MOONMIST,TRIM1# |
1 | ||
| 74220-35070B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-35060B0 |
KZN185,RZN185..SSR MOONMIST,TRIM1# |
1 | ||
| 74250-35070B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| 74250-35070E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-35020C0 |
KZN185,RZN185..SSR,SSRV,SSRX BLACK,TRIM1# |
1 | ||
| 74231-35110C0 |
KZN185,RZN185..SSR,SSRV,SSRX BLACK,TRIM1# |
1 | ||
| 74231-35070C0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX BLACK,TRIM1#,4# |
1 | ||
| 74231-35070C0 |
KZN185,RZN185..SSR BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-35070C0 |
KZN185,RZN185..SSR BLACK,TRIM1# |
1 | ||
| 74232-35070C0 |
KZN185,RZN185..SSR,SSRV,SSRX BLACK,TRIM1# |
1 | ||
| 74232-35070C0 |
KZN185,RZN185,VZN185..SSRV,SSRX BLACK,TRIM1#,4# |
1 | ||
| 74232-35030C0 |
KZN185,RZN185..SSR,SSRV,SSRX BLACK,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-35060B0 |
KZN185,RZN185..SSR MOONMIST,TRIM1# |
1 | ||
| 74260-35070E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74260-35070B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 90468-05125 | ||||

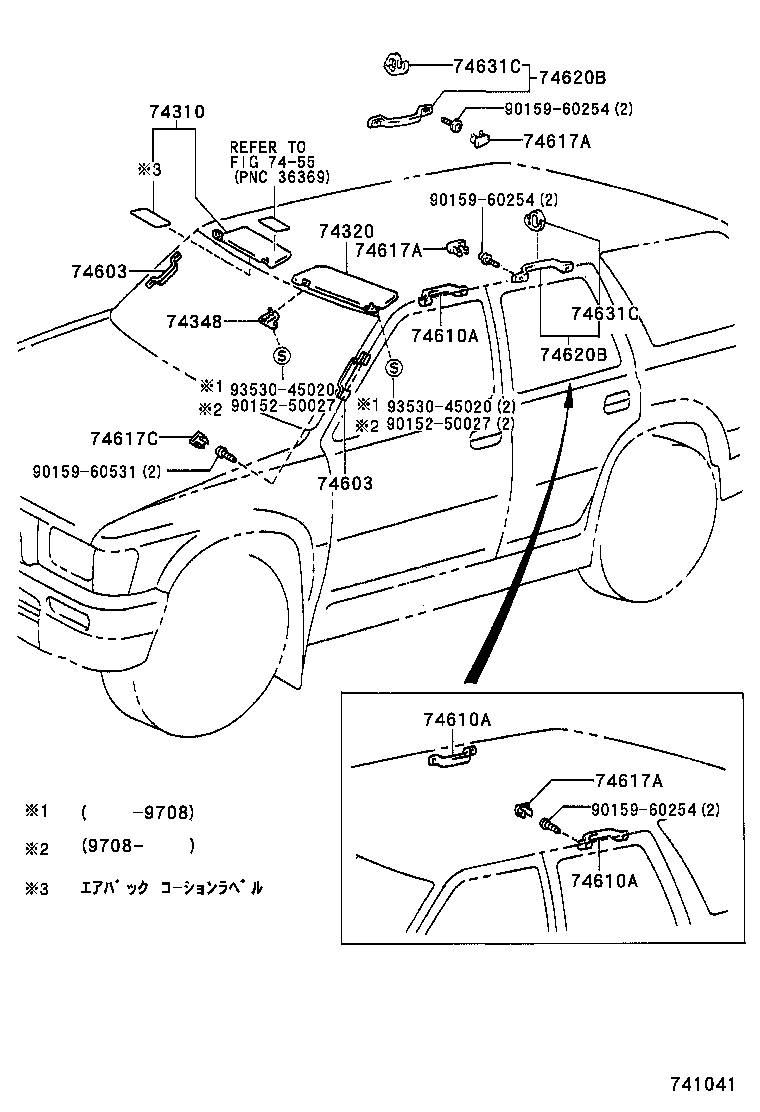

ILLUST NO. 2 OF 2(9511- )
ﾊﾞｲｻﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-35430B0 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| 74310-35140B1 |
KZN185,RZN185,VZN185 MOONMIST,TRIM1# |
1 | ||
| 74310-35170B0 |
KZN185,RZN185,VZN185 MOONMIST,TRIM1# |
1 | ||
| 74310-35430E0 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX LT. OAK,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-35120B1 |
KZN185,RZN185,VZN185 MOONMIST,TRIM1# |
1 | ||
| 74320-35150B0 |
KZN185,RZN185,VZN185 MOONMIST,TRIM1# |
1 | ||
| 74320-35490E0 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX LT. OAK,TRIM4# |
1 | ||
| 74320-35490B0 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOONMIST,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020B8 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74348-22020E1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-35020E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74610-35020B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-35020E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74610-35020B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
3 | ||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 74610-16010E3 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
3 | ||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 74610-16010E3 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
3 | ||
| 74610-16010B4 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 74610-16010E3 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-16010E7 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
6 | ||
| 74617-16010P1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
6 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-16010E7 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
6 | ||
| 74617-16010P1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
6 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-16010E7 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
6 | ||
| 74617-16010P1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-16010E7 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
4 | ||
| 74617-16010P1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-35010B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74620-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-35010B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74620-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-35010B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74631-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-35010B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
2 | ||
| 74631-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
2 | ||
| Common parts | ||||
| 90152-50027 | ||||
| 90159-60254 | ||||
| 90159-60531 | ||||
| 93530-45020 | ||||
| Linked diagrams | ||||
| 7455 | ||||
