RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

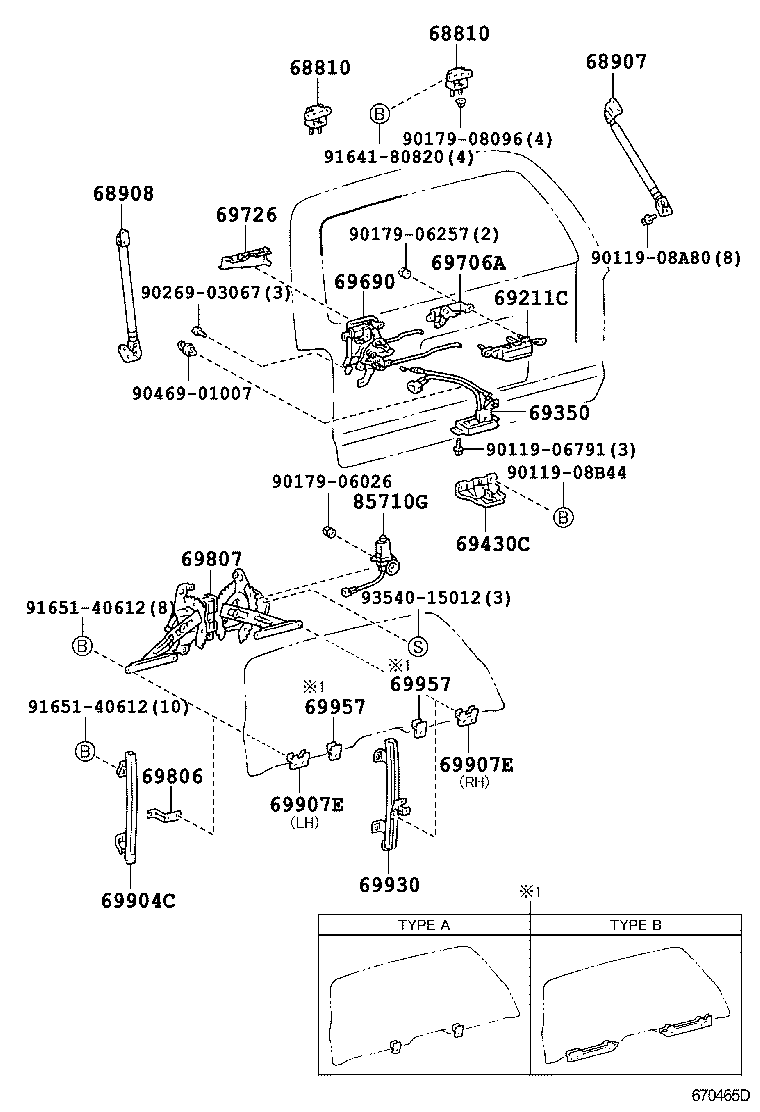

Click highlighted areas on diagram

diagram 68810 68810 68907 68908 69211C 69350 69430C 69690 69706A 69726 69806 69807 69904C 69907E 69907E 69930 69957 69957 85710G 9011906791 9011908A80 9011908B44 9017906026 9017906257 9017908096 9026903067 9046901007 9164180820 9165140612 9165140612 9354015012
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68820-35010

KDN185,KZN185,RZN18#,VZN18#

左側

 1
68810-35010

KDN185,KZN185,RZN18#,VZN18#

右側

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68820-35010

KDN185,KZN185,RZN18#,VZN18#

左側

 1
68810-35010

KDN185,KZN185,RZN18#,VZN18#

右側

 1
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-35040

KZN185,RZN18#,VZN18#..SPR,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾋｰﾀ)

 1
68907-35020

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾋｰﾀ)

 1
68907-35010

KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ)

 1
68907-35030

KZN185,RZN18#,VZN18#..SPR,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-35020

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾋｰﾀ)

 1
68908-35040

KZN185,RZN18#,VZN18#..SPR,SSRG,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾘﾔ ﾋｰﾀ)

 1
68908-35030

KZN185,RZN18#,VZN18#..SPR,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
68908-35010

KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ)

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69350 - LOCK ASSY, BACK DOOR
69350-35010

KZN185,RZN185,VZN185

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-35011

KZN185,RZN185,VZN185

 1
69690-35021

KZN185..WIB..5F..TDE;KZN185,VZN185..WIB..4FC;RZN185..WIB..(SSRV,SSRX)

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69690-35020

KZN185,RZN185,VZN185..WIB

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69690-35010

KZN185,RZN185..SSR,SSRV,SSRX

 1
69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69706-35010

KZN185,RZN185,VZN185

 1
69706-35030

KDN185,KZN185,RZN18#,VZN18#

 1
69726 - PROTECTOR, BACK DOOR LOCK CONTROL
69726-35030

KZN185,RZN185..WIB..(SSRV,SSRX)

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69726-35020

RZN180..SPR;KZN185,RZN185,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
69806 - BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE
69806-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69807 - REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW
69807-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69904C - RAIL SUB-ASSY, BACK DOOR GLASS GUIDE, LH
69904-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69907E - CHANNEL SUB-ASSY, BACK DOOR GLASS
69907-35030

KZN185,RZN185,VZN185

右側,TYPE A:ｲﾗｽﾄ参照

 1
69908-35010

KZN185,RZN185,VZN185

左側,TYPE A:ｲﾗｽﾄ参照

 1
69907-35031

KZN185,RZN185,VZN185

右側,TYPE A:ｲﾗｽﾄ参照

 1
69907E - CHANNEL SUB-ASSY, BACK DOOR GLASS
69907-35030

KZN185,RZN185,VZN185

右側,TYPE A:ｲﾗｽﾄ参照

 1
69908-35010

KZN185,RZN185,VZN185

左側,TYPE A:ｲﾗｽﾄ参照

 1
69907-35031

KZN185,RZN185,VZN185

右側,TYPE A:ｲﾗｽﾄ参照

 1
69930 - RAIL ASSY, BACK DOOR GLASS GUIDE, RH
69930-35010

KDN185,KZN185,RZN18#,VZN18#

 1
69957 - CHANNEL, BACK DOOR GLASS
69957-35010

KZN185,RZN185,VZN185

TYPE A:ｲﾗｽﾄ参照

 2
69957 - CHANNEL, BACK DOOR GLASS
69957-35010

KZN185,RZN185,VZN185

TYPE A:ｲﾗｽﾄ参照

 2
85710G - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35090

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90119-06791
90119-08A80
90119-08B44
90179-06026
90179-06257
90179-08096
90269-03067
90469-01007
91641-80820
91651-40612
93540-15012
