RZN185W-GAMVK (1995)
Toyota Hilux Surf

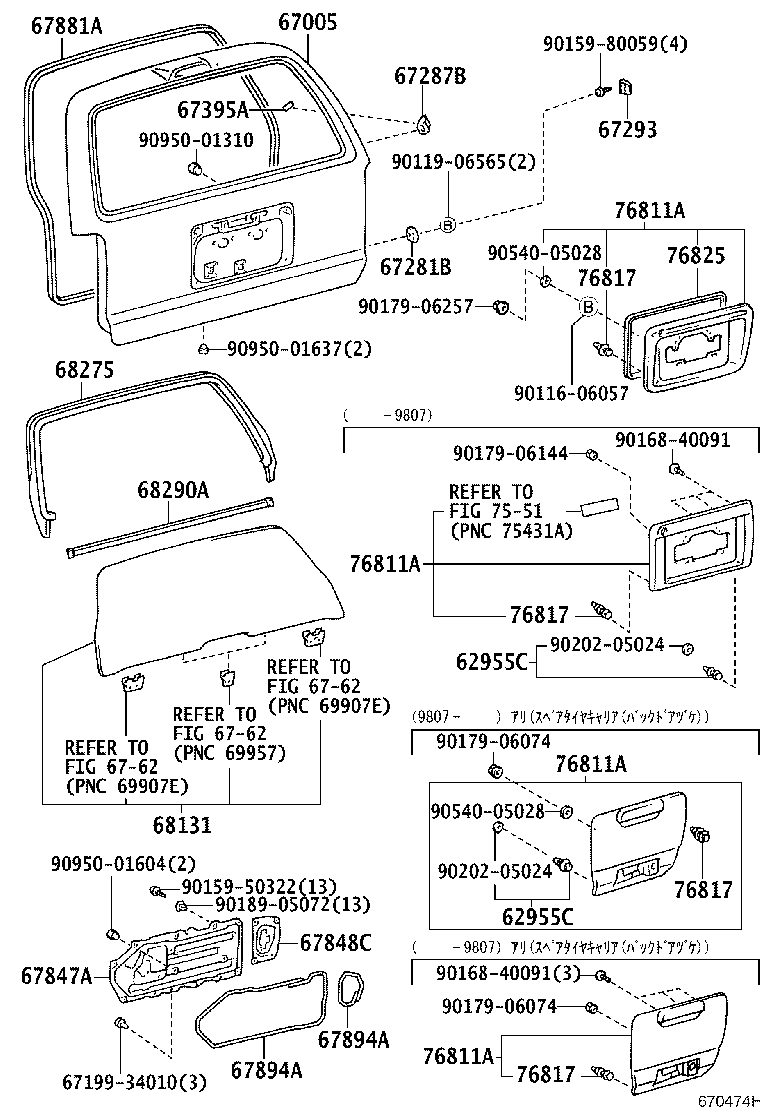

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64780-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 74629A - COVER, ASSIST STRAP HOLE | ||||
| 74629-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 74629-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 74650A - STRAP ASSY, ASSIST | ||||
| 74650-35010B0 |
KZN185,RZN18#,VZN18# BLUISH GRAY,TRIM1# |
1 | ||
| 74650-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-28020 | ||||
| 91635-60625 | ||||
ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955C - RETAINER, BACK DOOR MOULDING | ||||
| 62955-12010 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
2 | ||
| 62955C - RETAINER, BACK DOOR MOULDING | ||||
| 62955-12010 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-35070 |
KZN185,RZN185,VZN185..SSRV,SSRX ｱﾘ(ﾊﾟﾜ- ﾘﾔｱﾝﾀﾞﾐﾗ- ﾂｷ ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-35090 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 67005-35060 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) & ｱﾘ(ﾊﾟﾜ- ﾘﾔｱﾝﾀﾞﾐﾗ- ﾂｷ ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-35080 |
KZN185,RZN185,VZN185..WIB..(SSRV,SSRX) ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ)) |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 67287B - BLOCK, BACK DOOR STOPPER SLIDE | ||||
| 67287-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 67395A - PROTECTOR, BACK DOOR, LOWER | ||||
| 67395-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67894A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 67893-35010 |
KDN185,KZN185,RZN18#,VZN18# 右側 |
1 | ||
| 67894-35010 |
KDN185,KZN185,RZN18#,VZN18# 左側 |
1 | ||
| 67894A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 67893-35010 |
KDN185,KZN185,RZN18#,VZN18# 右側 |
1 | ||
| 67894-35010 |
KDN185,KZN185,RZN18#,VZN18# 左側 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68150-35110 |
KZN185,RZN185..SSR,SSRV *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68150-35131 |
KZN185,RZN185,VZN185 *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68150-35111 |
KZN185,RZN185..SSR,SSRV *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68150-35130 |
KZN185,RZN185,VZN185 *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68275 - RUN, BACK DOOR GLASS | ||||
| 68275-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68290A - WEATHERSTRIP ASSY, BACK DOOR GLASS, OUTER | ||||
| 68290-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76801-35090 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76801-35080D0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),RED MM,3K4 |
1 | ||
| 76801-35080K0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),GRAYISH PURPLE M.M.,926 |
1 | ||
| 76801-35080J0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),LT.BLUE M.M.,8L6 |
1 | ||
| 76801-35080H0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.TEAL GREEN MC.,751 |
1 | ||
| 76801-35080B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),WARM GRAY PEARL ME,1A5 |
1 | ||
| 76801-35080J1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.BLUE M.M.,8L7 |
1 | ||
| 76801-35150 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76801-35090 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76801-35080D0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),RED MM,3K4 |
1 | ||
| 76801-35080K0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),GRAYISH PURPLE M.M.,926 |
1 | ||
| 76801-35080J0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),LT.BLUE M.M.,8L6 |
1 | ||
| 76801-35080H0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.TEAL GREEN MC.,751 |
1 | ||
| 76801-35080B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),WARM GRAY PEARL ME,1A5 |
1 | ||
| 76801-35080J1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.BLUE M.M.,8L7 |
1 | ||
| 76801-35150 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76801-35090 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76801-35080D0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),RED MM,3K4 |
1 | ||
| 76801-35080K0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),GRAYISH PURPLE M.M.,926 |
1 | ||
| 76801-35080J0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),LT.BLUE M.M.,8L6 |
1 | ||
| 76801-35080H0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.TEAL GREEN MC.,751 |
1 | ||
| 76801-35080B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),WARM GRAY PEARL ME,1A5 |
1 | ||
| 76801-35080J1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.BLUE M.M.,8L7 |
1 | ||
| 76801-35150 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76801-35090 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76801-35080D0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),RED MM,3K4 |
1 | ||
| 76801-35080K0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),GRAYISH PURPLE M.M.,926 |
1 | ||
| 76801-35080J0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),LT.BLUE M.M.,8L6 |
1 | ||
| 76801-35080H0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.TEAL GREEN MC.,751 |
1 | ||
| 76801-35080B0 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),WARM GRAY PEARL ME,1A5 |
1 | ||
| 76801-35080J1 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ),DK.BLUE M.M.,8L7 |
1 | ||
| 76801-35150 |
KZN185,RZN185,VZN185 要塗装,ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ)) |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-89101 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-89101 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-89101 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-89101 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| Common parts | ||||
| 67199-34010 | ||||
| 90116-06057 | ||||
| 90119-06565 | ||||
| 90159-50322 | ||||
| 90159-80059 | ||||
| 90168-40091 | ||||
| 90179-06074 | ||||
| 90179-06144 | ||||
| 90179-06257 | ||||
| 90189-05072 | ||||
| 90202-05024 | ||||
| 90540-05028 | ||||
| 90950-01310 | ||||
| 90950-01604 | ||||
| 90950-01637 | ||||
| Linked diagrams | ||||
| 6762 | ||||
| 7551 | ||||
