RZN185W-GAMVK (1995)
Toyota Hilux Surf

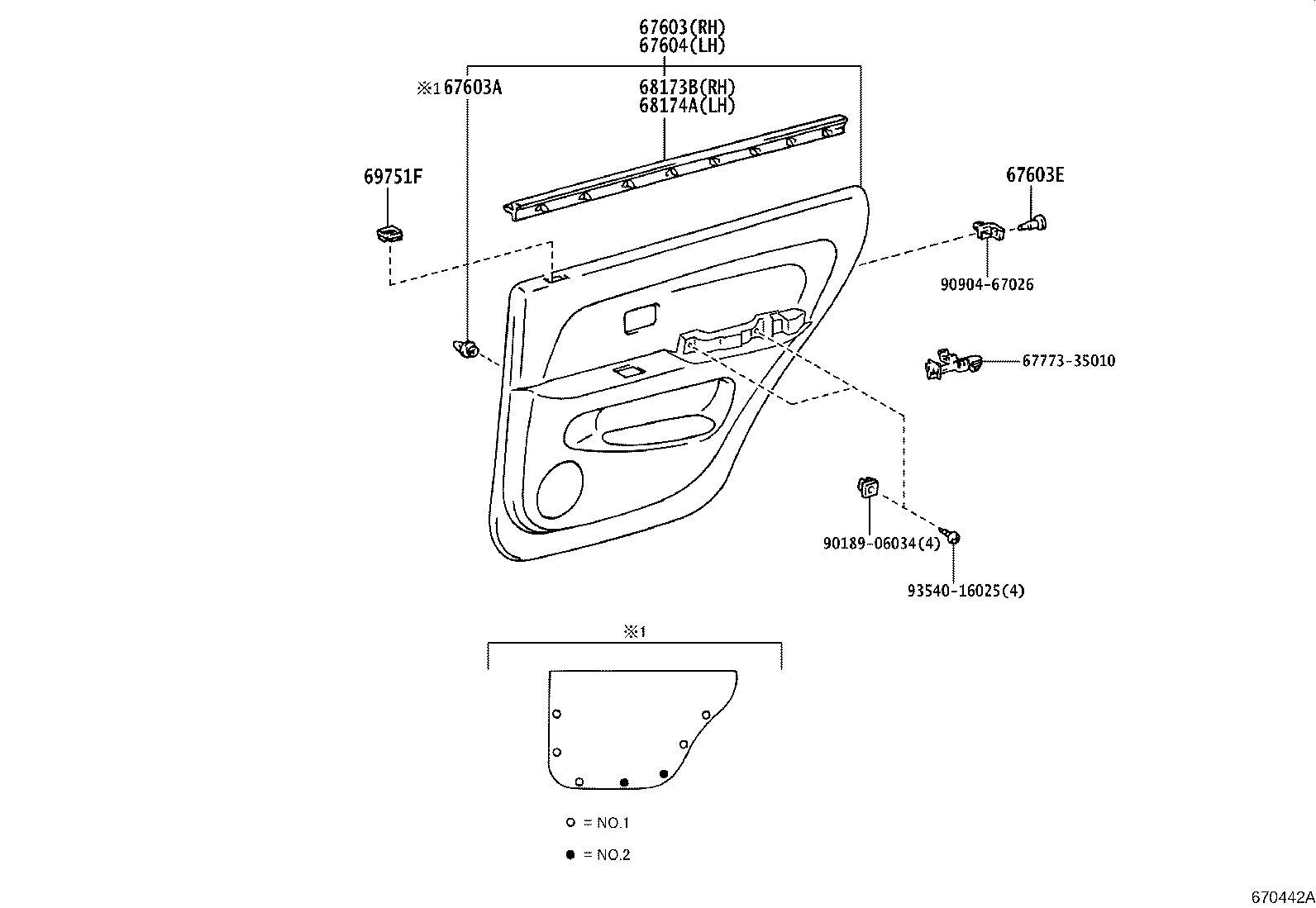

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-35430E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾄﾘﾑ = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 67630-35420B0 |
KZN185,RZN185..SSR ﾄﾘﾑ = TYPE D-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 67630-35430B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾄﾘﾑ = TYPE B-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
KZN185,RZN185,VZN185 |
14 | ||
| 67771-12050 |
KZN185,RZN185,VZN185 NO.1 |
10 | ||
| 67771-28020 |
KZN185,RZN185,VZN185 NO.2 |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066B4 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
4 | ||
| 90467-07066E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-35420B0 |
KZN185,RZN185..SSR ﾄﾘﾑ = TYPE D-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 67640-35430B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾄﾘﾑ = TYPE B-*104,MD.MOON MIST,TRIM1# |
1 | ||
| 67640-35430E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾄﾘﾑ = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-35030E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
2 | ||
| 69751-35030B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
2 | ||
| Common parts | ||||
| 67773-35010 | ||||
| 90189-06034 | ||||
| 90904-67026 | ||||
| 93540-16025 | ||||

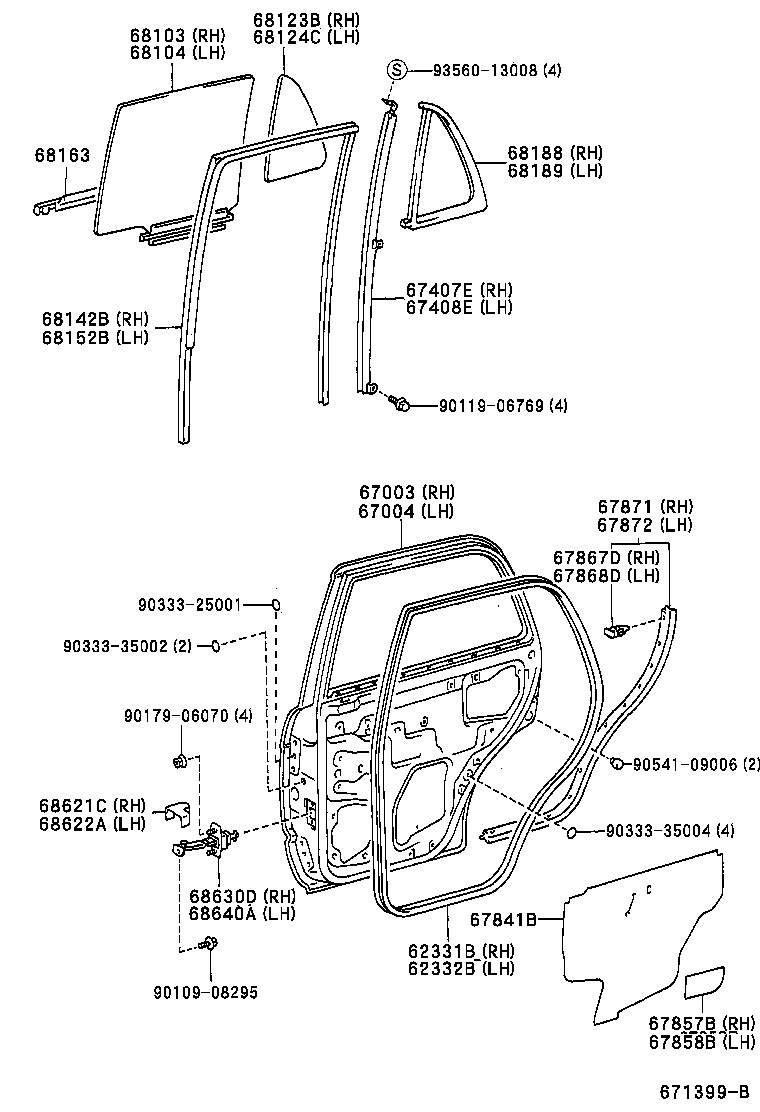

ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62331B - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 62332B - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-35080 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-35080 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-35050 |
RZN180..SPR;KZN185,RZN185,VZN18# 右側 |
1 | ||
| 67841-35030 |
KZN185,RZN185,VZN185 |
2 | ||
| 67842-35020 |
RZN180..SPR;KZN185,RZN185,VZN18# 左側 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-35020 |
KZN185,RZN185..SSR |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-35020 |
KZN185,RZN185..SSR |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDN185,KZN185,RZN18#,VZN18# |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDN185,KZN185,RZN18#,VZN18# |
12 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-35070 |
KZN185,RZN185..SSR,SSRV *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-35060 |
KZN185,RZN185,VZN185 *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-35060 |
KZN185,RZN185,VZN185 *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68114-35070 |
KZN185,RZN185..SSR,SSRV *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-35050 |
KZN185,RZN185..SSR,SSRV *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-35040 |
KZN185,RZN185,VZN185 *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-35040 |
KZN185,RZN185,VZN185 *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68124-35050 |
KZN185,RZN185..SSR,SSRV |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 68142-35011 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 68152-35011 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68164-35010 |
KDN185,KZN185,RZN18#,VZN18# 左側 |
1 | ||
| 68163-35010 |
KDN185,KZN185,RZN18#,VZN18# 右側 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-35011 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68188-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 68189-35011 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06769 | ||||
| 90179-06070 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 93560-13008 | ||||
