RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

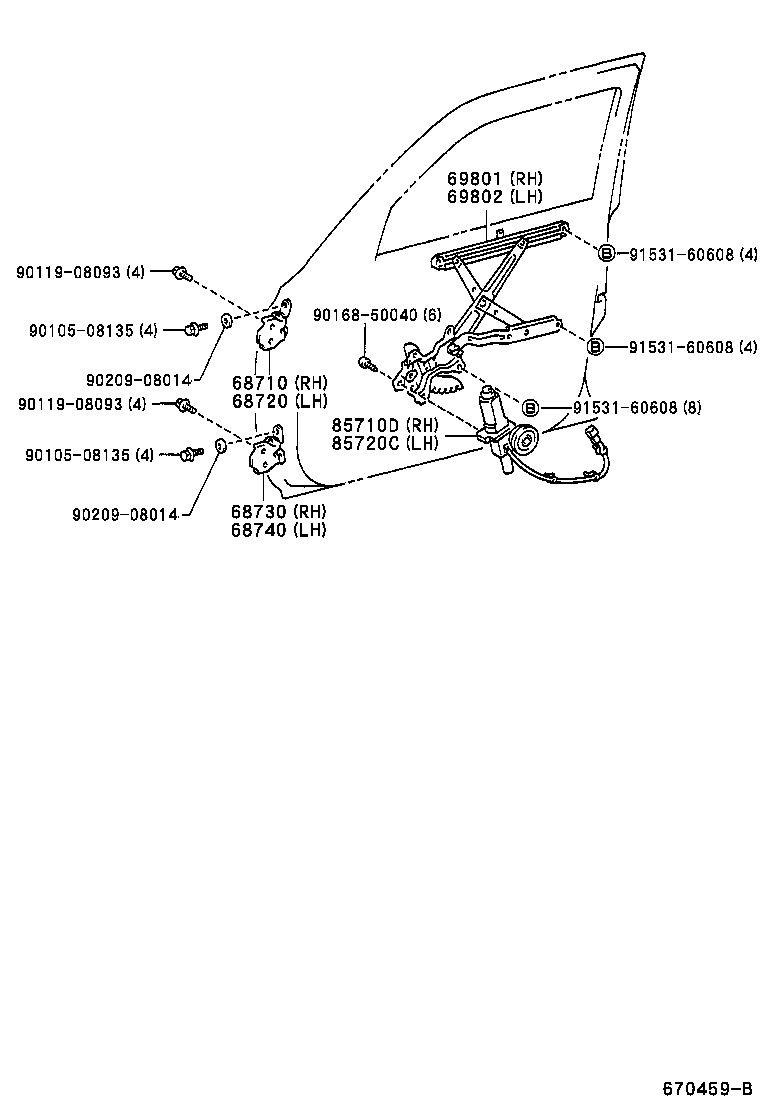

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 85710D 85720C 9010508135 9010508135 9011908093 9011908093 9016850040 9020908014 9020908014 9153160608 9153160608 9153160608
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-04010

KDN185,KZN185,RZN18#,VZN18#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-04010

KDN185,KZN185,RZN18#,VZN18#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-04010

KDN185,KZN185,RZN18#,VZN18#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-04010

KDN185,KZN185,RZN18#,VZN18#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-35091

KDN185,KZN185,RZN18#,VZN18#

 1
69801-35090

KZN185,RZN185,VZN185

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-35100

KZN185,RZN185,VZN185

 1
69802-35101

KDN185,KZN185,RZN18#,VZN18#

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35150

KDN185,KZN185,RZN18#,VZN18#

 1
85710-35100

KZN185,RZN185,VZN185

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35050

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90105-08135
90119-08093
90168-50040
90209-08014
91531-60608
