RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

Click highlighted areas on diagram

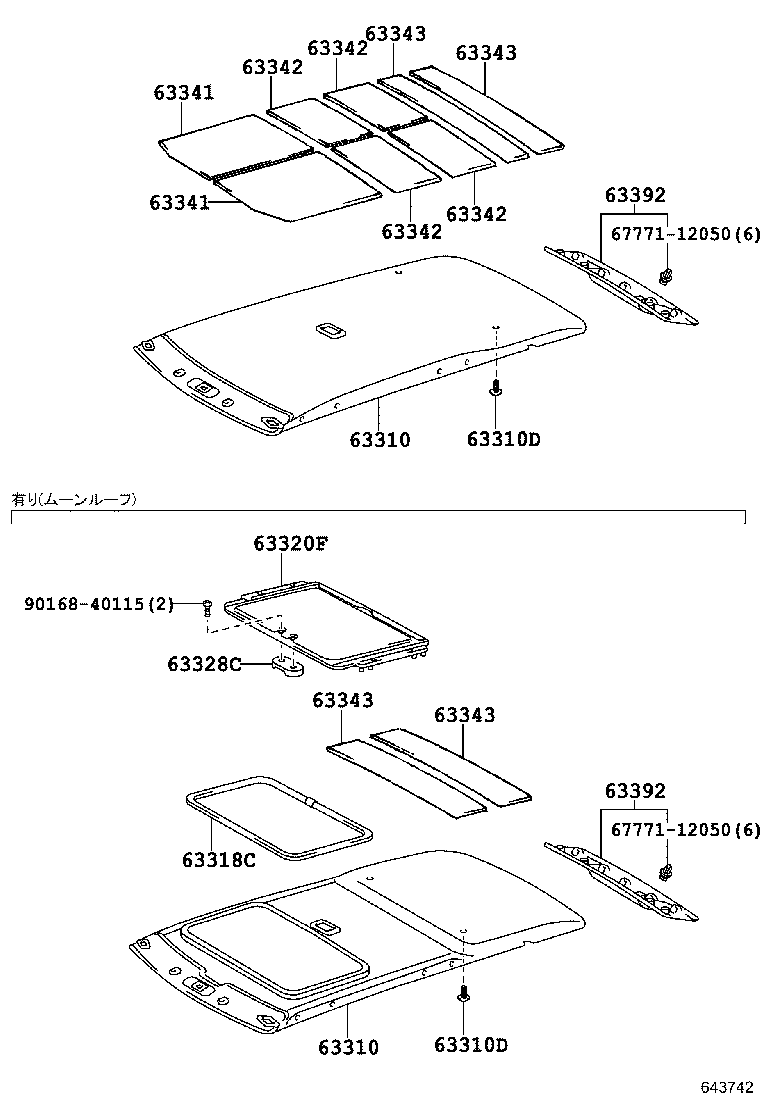

diagram 63310 63310 63310D 63310D 63318C 63320F 63328C 63341 63341 63342 63342 63342 63342 63343 63343 63343 63343 63392 63392 6777112050 6777112050 9016840115
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-35120B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MOONMIST,TRIM1#

 1
63311-35110B1

KZN185,RZN185..SSR,SSRV,SSRX

MOONMIST,TRIM1#

 1
63311-35130B1

KZN185,RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MOONMIST,TRIM1#

 1
63311-35130B1

KZN185,RZN185,VZN185

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MOONMIST,TRIM1#

 1
63311-35110B1

KZN185,RZN185,VZN185

MOONMIST,TRIM1#

 1
63311-35140B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) & ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MOONMIST,TRIM1#

 1
63311-35120E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MEDIUM OAK,TRIM4#

 1
63311-35130E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM OAK,TRIM4#

 1
63311-35110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MEDIUM OAK,TRIM4#

 1
63311-35140E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) & ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MEDIUM OAK,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63311-35120B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MOONMIST,TRIM1#

 1
63311-35110B1

KZN185,RZN185..SSR,SSRV,SSRX

MOONMIST,TRIM1#

 1
63311-35130B1

KZN185,RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MOONMIST,TRIM1#

 1
63311-35130B1

KZN185,RZN185,VZN185

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MOONMIST,TRIM1#

 1
63311-35110B1

KZN185,RZN185,VZN185

MOONMIST,TRIM1#

 1
63311-35140B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) & ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MOONMIST,TRIM1#

 1
63311-35120E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MEDIUM OAK,TRIM4#

 1
63311-35130E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM OAK,TRIM4#

 1
63311-35110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MEDIUM OAK,TRIM4#

 1
63311-35140E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) & ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ OR ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ),MEDIUM OAK,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-09110B0

KZN185,RZN185,VZN185

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 6
90467-09110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 8
90467-09110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM4#

 6
90467-09110B0

KZN185,RZN18#,VZN18#

MOON MIST,TRIM1#

 8
63310D - CLIP, ROOF HEADLINING
90467-09110B0

KZN185,RZN185,VZN185

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 6
90467-09110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 8
90467-09110E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM4#

 6
90467-09110B0

KZN185,RZN18#,VZN18#

MOON MIST,TRIM1#

 8
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

長さ=2483,OAK,TRIM4#

 1
63318-35010B0

KZN185,RZN185,VZN185

長さ=2483,MOONMIST,TRIM1#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-35020E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MEDIUM OAK,TRIM4#

 1
63320-35020B1

KZN185,RZN185,VZN185

MOONMIST,TRIM1#

 1
63328C - KNOB, SUNSHADE TRIM
63328-12020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
63328-12020B1

KZN185,RZN185,VZN185

MOON MIST,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-35090

KDN185,KZN185,RZN18#,VZN18#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-35090

KDN185,KZN185,RZN18#,VZN18#

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-35100

KDN185,KZN185,RZN18#,VZN18#

 4
63342 - PAD, ROOF SILENCER, NO.2
63341-35100

KDN185,KZN185,RZN18#,VZN18#

 4
63342 - PAD, ROOF SILENCER, NO.2
63341-35100

KDN185,KZN185,RZN18#,VZN18#

 4
63342 - PAD, ROOF SILENCER, NO.2
63341-35100

KDN185,KZN185,RZN18#,VZN18#

 4
63343 - PAD, ROOF SILENCER, NO.3
63341-35110

KDN185,KZN185,RZN18#,VZN18#

 2
63343 - PAD, ROOF SILENCER, NO.3
63341-35110

KDN185,KZN185,RZN18#,VZN18#

 2
63343 - PAD, ROOF SILENCER, NO.3
63341-35110

KDN185,KZN185,RZN18#,VZN18#

 2
63343 - PAD, ROOF SILENCER, NO.3
63341-35110

KDN185,KZN185,RZN18#,VZN18#

 2
63392 - TRIM, ROOF HEADLINING, REAR
63392-35020B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
63392-35020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-35020B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
63392-35020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
Common parts
67771-12050
90168-40115
