RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)

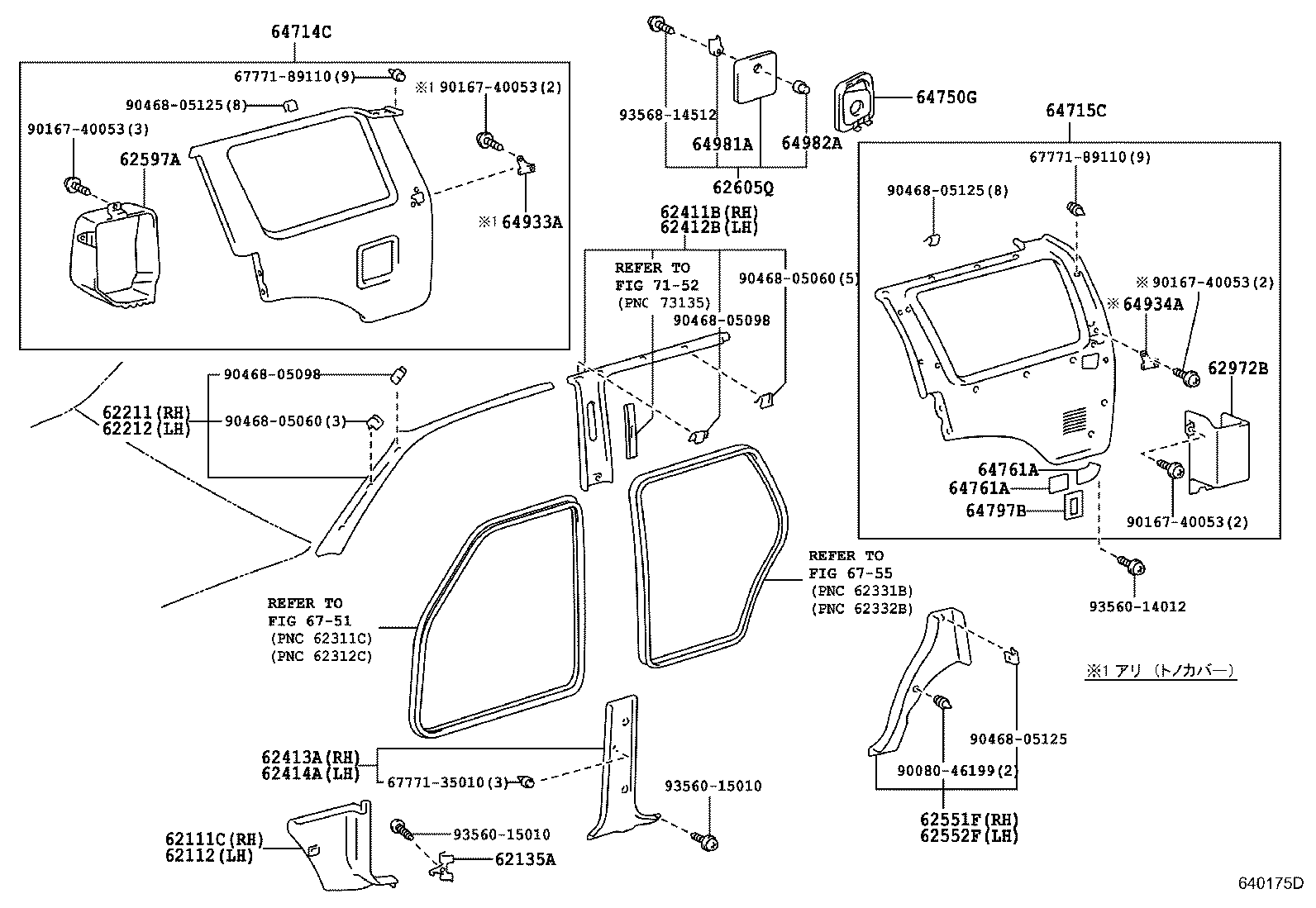

Click highlighted areas on diagram

diagram 62111C 62112 62135A 62211 62212 62411B 62412B 62413A 62414A 62551F 62552F 62597A 62605Q 62972B 64714C 64715C 64750G 64761A 64761A 64797B 64933A 64934A 64981A 64982A 6751 6755 6777135010 6777189110 6777189110 7152 9008046199 9016740053 9016740053 9016740053 9016740053 9046805060 9046805060 9046805098 9046805098 9046805125 9046805125 9046805125 9356014012 9356015010 9356015010 9356814512
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-35010B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
62111-35030E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62111-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62112-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62135A - RETAINER, COWL SIDE COVER
62135-35010

KDN185,KZN185,RZN18#,VZN18#

 2
62211 - GARNISH, FRONT PILLAR, RH
62211-35040B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62211-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-35040B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62212-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62411-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62412-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62413-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62414-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62551F - GARNISH, REAR SEAT SIDE, RH
62551-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62551-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
62552-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62597A - BOX, SIDE TRIM
62597-35010

KZN185,RZN185,VZN185

 1
62605Q - LID SUB-ASSY, QUARTER TRIM, RH
62605-35010B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
62605-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
62972B - DUCT, ROOF SIDE AIR, NO.1 LH
62971-35010

KDN185,KZN185,RZN18#,VZN18#

 1
64714C - COVER, DECK SIDE TRIM, RH
64714-35120B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
64714-35150B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
64714-35150E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-35080E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
64715-35080B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
64750G - GARNISH ASSY, DECK SIDE, REAR RH
64750-35010B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
64750-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
64761A - SILENCER, DECK SIDE TRIM, NO.1
64761-35010

KDN185,KZN185,RZN18#,VZN18#

 4
64761A - SILENCER, DECK SIDE TRIM, NO.1
64761-35010

KDN185,KZN185,RZN18#,VZN18#

 4
64797B - SILENCER, DECK SIDE TRIM, NO.2
64797-35010

KDN185,KZN185,RZN18#,VZN18#

 1
64981A - STOPPER, QUARTER TRIM LID
64981-16021

KZN185,RZN185,VZN185

 1
64982A - KNOB, QUARTER TRIM LID
64982-16020B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
64982-16020E4

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
Common parts
67771-35010
67771-89110
90080-46199
90167-40053
90468-05060
90468-05098
90468-05125
93560-14012
93560-15010
93568-14512
Linked diagrams
6751
6755
7152
