RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

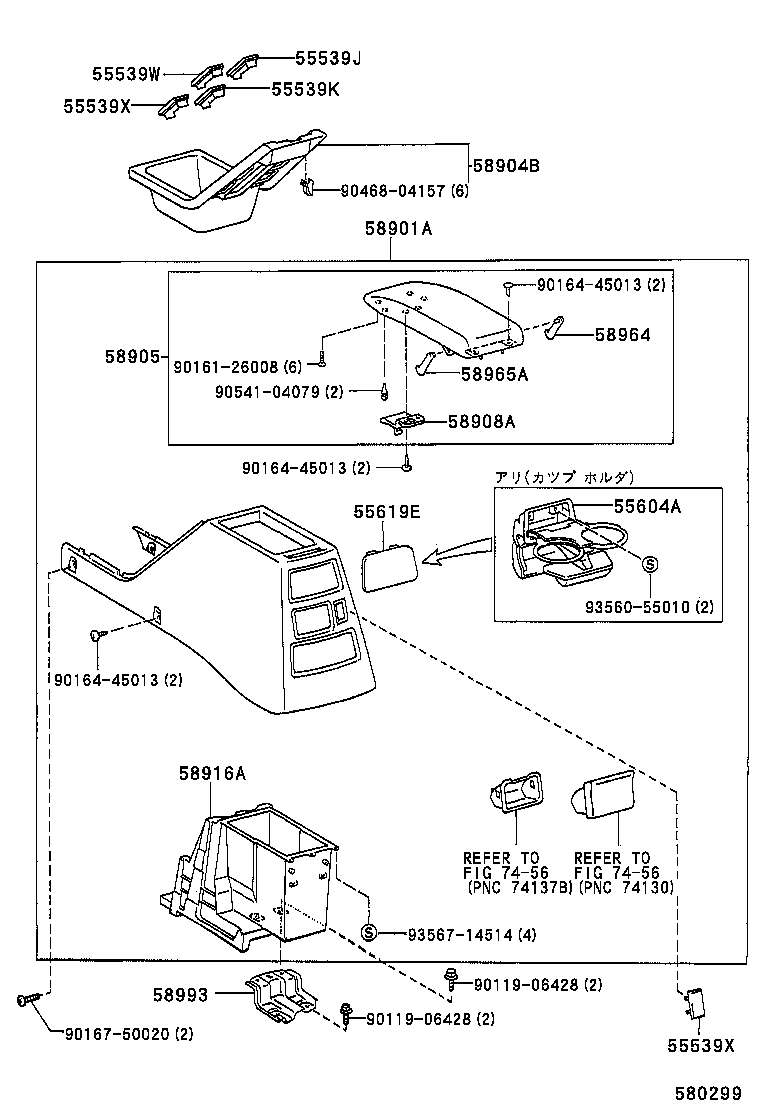

ILLUST NO. 2 OF 2(9511-9807)

Click highlighted areas on diagram

diagram 55539J 55539K 55539W 55539X 55539X 55604A 55619E 58901A 58904B 58905 58908A 58916A 58964 58965A 58993 7456 7456 9011906428 9011906428 9016126008 9016445013 9016445013 9016445013 9016750020 9046804157 9054104079 9356055010 9356714514
Part # Description Qty Price
55539J - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185..5F

 1
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 1
55539-32010C0

KZN185,RZN185..WIB..5F

BLACK,TRIM1#,4#

 1
55539-32010C0

KZN185,RZN185..5F

BLACK,TRIM1#

 1
55539K - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185..SSR,SSRV,SSRX

 1
55539-32010C0

KZN185,RZN185..SSR,SSRV,SSRX

BLACK,TRIM1#

 1
55539-32010C0

KZN185,RZN185,VZN185..SSRV,SSRX

BLACK,TRIM1#,4#

 1
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 1
55539W - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185,VZN185

 1
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 1
55539-32010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
55539-32010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

BLACK,TRIM1#,4#

 1
55539X - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185..SSR,SSRV,SSRX

 2
55539-32010C0

KZN185,RZN185..SSR,SSRV,SSRX

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185,VZN185..SSRV,SSRX

BLACK,TRIM1#,4#

 2
55539X - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185..SSR,SSRV,SSRX

 2
55539-32010C0

KZN185,RZN185..SSR,SSRV,SSRX

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185,VZN185..SSRV,SSRX

BLACK,TRIM1#,4#

 2
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-35030B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
55604-35030E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55619E - COVER, CUP HOLDER HOLE
55619-35020B0

KZN185,RZN185..SSR

MD.MOON MIST,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-35110E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾘﾔ ﾋ-ﾀ & ｶﾂﾌﾟ ﾎﾙﾀﾞ),OAK,TRIM4#

 1
58901-35110B0

KZN185,RZN185,VZN185

ｱﾘ(ﾘﾔ ﾋ-ﾀ & ｶﾂﾌﾟ ﾎﾙﾀﾞ),MD.MOON MIST,TRIM1#

 1
58901-35120E0

KZN185,RZN185,VZN185..SSRV,SSRX

OAK,TRIM4#

 1
58901-35100B0

KZN185,RZN185..SSR

MD.MOON MIST,TRIM1#

 1
58901-35120B0

KZN185,RZN185,VZN185..SSR,SSRV,SSRX

MD.MOON MIST,TRIM1#

 1
58901-35120B0

KZN185,RZN185..SSRV,SSRX

MD.MOON MIST,TRIM1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-35010

KZN185,RZN185,VZN185

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58905-35040B1

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32050

KDN185,KZN185,RZN18#,VZN18#

 1
58916A - INSERT, CONSOLE BOX, REAR
58916-35020

KZN185,RZN185,VZN185

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-16010

KDN185,KZN185,RZN18#,VZN18#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-16010

KDN185,KZN185,RZN18#,VZN18#

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-35030

KZN185,RZN185,VZN185

 1
Common parts
90119-06428
90161-26008
90164-45013
90167-50020
90468-04157
90541-04079
93560-55010
93567-14514
Linked diagrams
7456

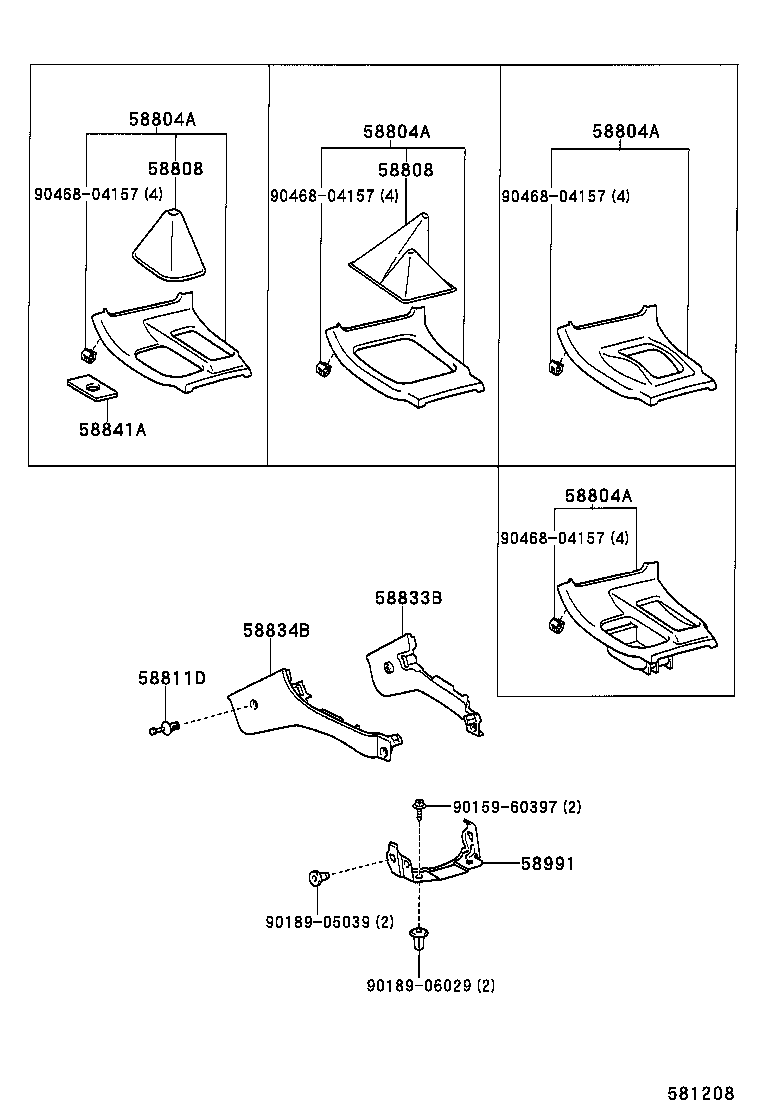

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

diagram 58804A 58804A 58804A 58804A 58808 58808 58811D 58833B 58834B 58841A 58991 9015960397 9018905039 9018906029 9046804157 9046804157 9046804157 9046804157
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35100

KZN185,RZN185..5F..(SSR,SSRV,SSRX)

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35100

KZN185,RZN185..5F..(SSR,SSRV,SSRX)

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35100

KZN185,RZN185..5F..(SSR,SSRV,SSRX)

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35100

KZN185,RZN185..5F..(SSR,SSRV,SSRX)

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-35120

KZN185,RZN185..5F

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-35120

KZN185,RZN185..5F

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07041E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 2
90467-07041B5

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 2
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-35020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58833-35020B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-35020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58834-35020B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-35030

RZN180,VZN180;KZN185,RZN185..5F

 1
Common parts
90159-60397
90189-05039
90189-06029
90468-04157
