RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

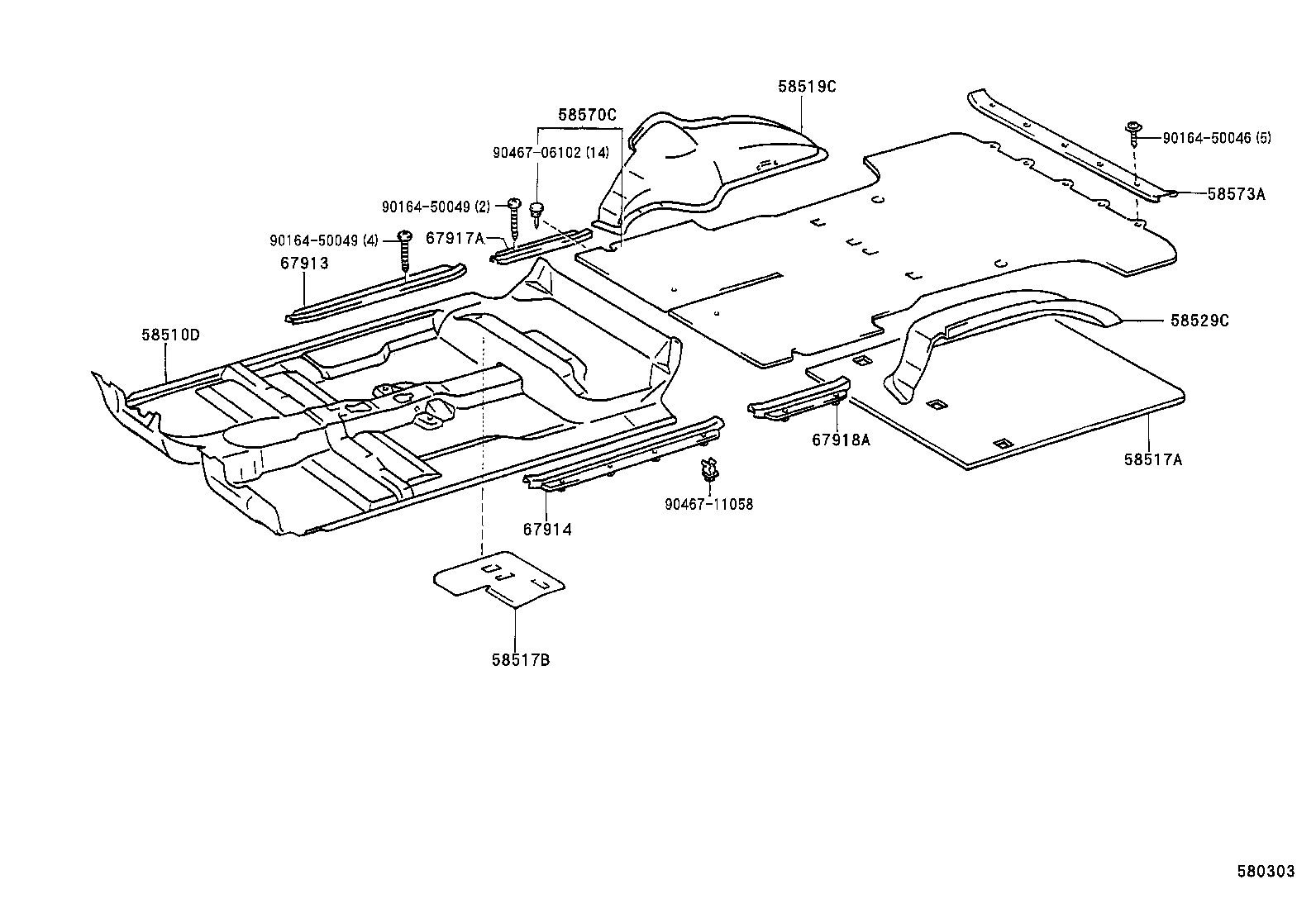

Click highlighted areas on diagram

diagram 58510D 58517A 58517B 58519C 58529C 58570C 58573A 67913 67914 67917A 67918A 9016450046 9016450049 9016450049 9046706102 9046711058
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-3D570E0

KZN185,RZN185,VZN185..SSRV,SSRX

OAK,TRIM4#

 1
58510-3D570B0

KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX

MEDIUM MOON MIST,TRIM1#

 1
58510-3D580E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾘﾔ ﾋ-ﾀ),OAK,TRIM4#

 1
58510-3D580B0

KZN185,RZN18#,VZN18#

ｱﾘ(ﾘﾔ ﾋ-ﾀ),MEDIUM MOON MIST,TRIM1#

 1
58517A - MAT, REAR FLOOR, NO.2
58517-35010

KDN185,KZN185,RZN18#,VZN18#

 1
58517B - CARPET, REAR FLOOR
58571-35020

KDN185,KZN185,RZN18#,VZN18#

 1
58519C - CARPET, REAR WHEEL HOUSE, RH
58519-35040B0

KZN185,RZN185,VZN185

MEDIUM MOON MIST,TRIM1#

 1
58519-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58519-35030B0

KZN185,RZN185,VZN185

MEDIUM MOON MIST,TRIM1#

 1
58529C - CARPET, REAR WHEEL HOUSE, LH
58529-35030B0

KZN185,RZN185,VZN185

MEDIUM MOON MIST,TRIM1#

 1
58529-35040B0

KZN185,RZN185,VZN185

MEDIUM MOON MIST,TRIM1#

 1
58529-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-35050E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
58570-35050B0

KZN185,RZN185,VZN185

MEDIUM MOON MIST,TRIM1#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-35010B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
58573-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
67913-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
67914-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
67917-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
67918-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
Common parts
90164-50046
90164-50049
90467-06102
90467-11058
