RZN185W-GAMVK (1995)
Toyota Hilux Surf

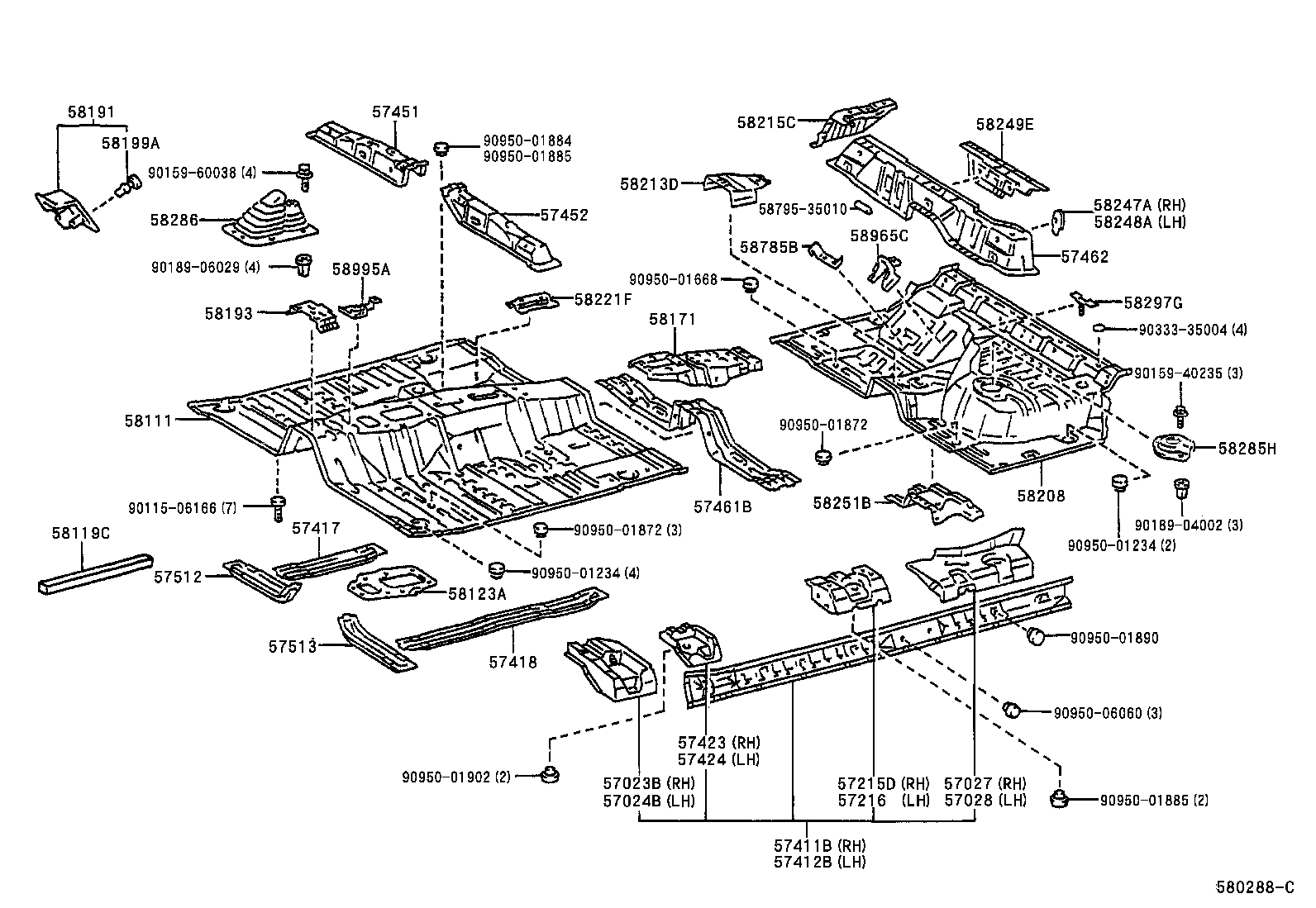

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH | ||||
| 57023-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 57023-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57023-35020 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH | ||||
| 57024-35020 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57024-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 57024-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57027 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH | ||||
| 57027-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57027-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57027-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57028 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH | ||||
| 57028-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57028-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57028-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57215D - BRACKET, BODY MOUNTING, NO.3 RH | ||||
| 57215-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57025-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57215-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57215-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57216 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH | ||||
| 57216-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57216-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57216-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57026-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-35900 |
KZN185,RZN185,VZN185 |
1 | ||
| 57401-35904 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57401-35903 |
KZN185,RZN185,VZN185 |
1 | ||
| 57401-35900 |
KZN185,RZN185,VZN185 |
1 | ||
| 57401-35900 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-35900 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57402-35903 |
KZN185,RZN185,VZN185 |
1 | ||
| 57402-35900 |
KZN185,RZN185,VZN185 |
1 | ||
| 57402-35900 |
KZN185,RZN185,VZN185 |
1 | ||
| 57402-35904 |
KZN185,RZN185,VZN185 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57417-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57417-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57418-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57418-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH | ||||
| 57423-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57423-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57423-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH | ||||
| 57424-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57424-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57424-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 57451-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57451-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-35040 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57452-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57452-35040 |
KZN185,RZN185,VZN185 |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 57407-35020 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57407-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57512-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57512-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57512-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 57513-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 57513-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-35100 |
RZN185..5F |
1 | ||
| 58111-35110 |
RZN185..5F ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 58171-35010 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 58171-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-35030 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 58193-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 58193-35051 |
KZN185,RZN185,VZN185 |
1 | ||
| 58193-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 58193-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-20030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58221F - REINFORCEMENT, FLOOR PANEL, FRONT RH | ||||
| 58221-35010 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58221-35010 |
KZN185,RZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58221-35010 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58221-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58249E - REINFORCEMENT, REAR SEAT MOUNTING | ||||
| 58249-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58285H - COVER, CENTER FLOOR HOLE | ||||
| 58285-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-35110 |
RZN185..5F |
1 | ||
| 58297G - RETAINER, FLOOR CLAMP | ||||
| 58297-35020 |
KDN185,KZN185,RZN18#,VZN18# |
3 | ||
| 58785B - BRACKET, TOOL BAG BAND | ||||
| 58785-89106 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58965C - HOLDER, JACK | ||||
| 58965-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-35020 |
KZN185..5F..SSRG;KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 58995-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 58995-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 58795-35010 | ||||
| 90115-06166 | ||||
| 90159-40235 | ||||
| 90159-60038 | ||||
| 90189-04002 | ||||
| 90189-06029 | ||||
| 90333-35004 | ||||
| 90950-01234 | ||||
| 90950-01668 | ||||
| 90950-01872 | ||||
| 90950-01884 | ||||
| 90950-01885 | ||||
| 90950-01890 | ||||
| 90950-01902 | ||||
| 90950-06060 | ||||

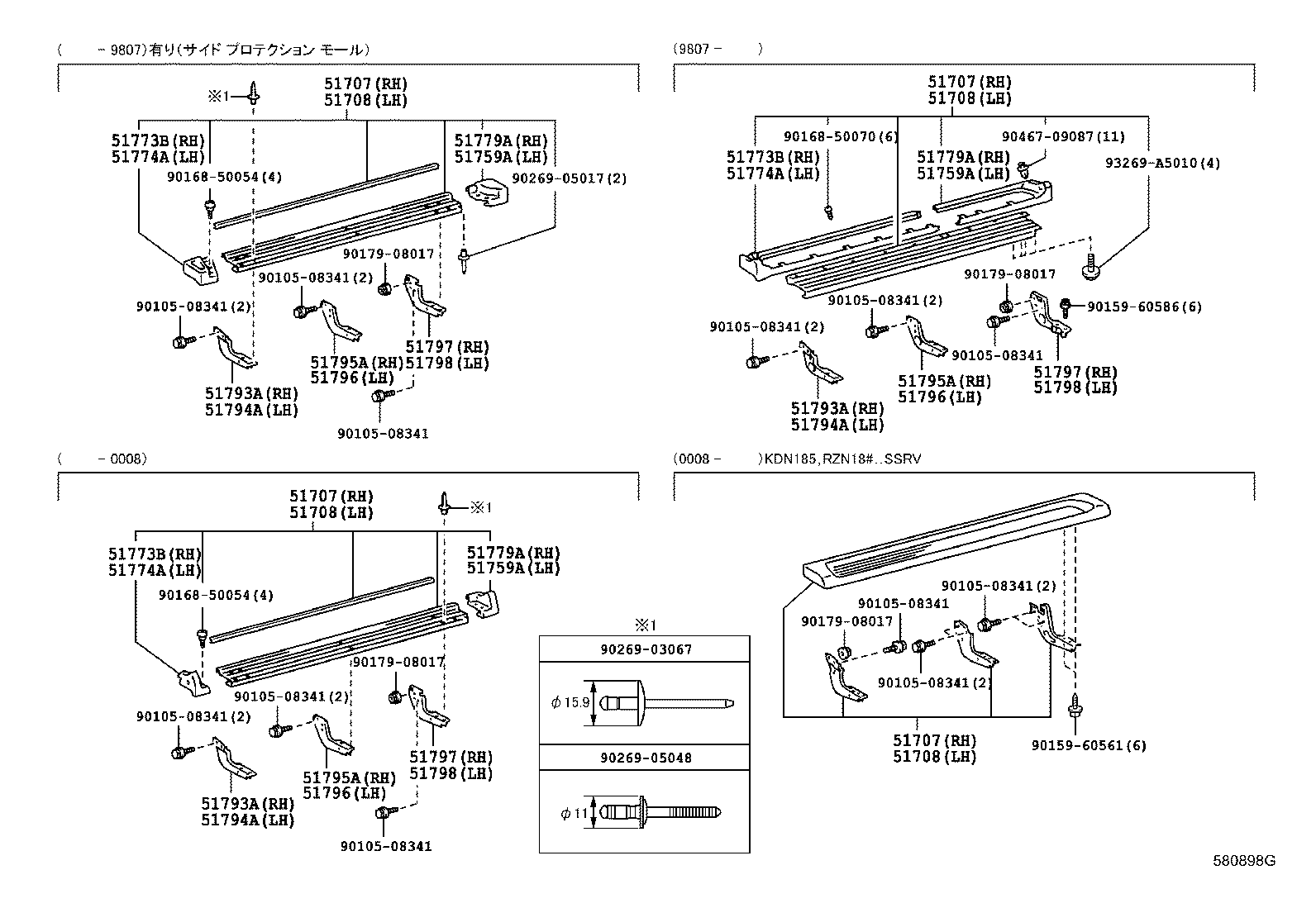

ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51707 - STEP SUB-ASSY, RH | ||||
| 51083-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51083-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51083-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51083-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51084-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51084-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51084-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51084-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35020 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51794-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51794-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51794-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51798-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51798-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51798-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90159-60561 | ||||
| 90159-60586 | ||||
| 90168-50054 | ||||
| 90168-50070 | ||||
| 90179-08017 | ||||
| 90269-03067 | ||||
| 90269-05017 | ||||
| 90269-05048 | ||||
| 90467-09087 | ||||
| 93269-A5010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
