RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

diagram 50540 55301 55303A 55306A 55307C 55331 55349A 55349A 55538D 55950 61181 73960A 9011906022 9011906171 9011908B72 9017608048 9017906009 9017906278 9017908102 9018305094 9046714023 9046715020 9161660616 9162660818 91633J0620 9356755016 9356815014
Part # Description Qty Price
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-35020E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
50540-35020B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-35070E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55301-35070B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55303A - STAY SUB-ASSY, INSTRUMENT PANEL
55303-35010

KDN185,KZN185,RZN18#,VZN18#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-35031

KZN185,RZN185,VZN185

 1
55306-35030

KZN185,RZN185,VZN185

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-35030

KZN185,RZN185,VZN185

 1
55307-35031

KDN185,KZN185,RZN18#,VZN18#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-35100

KZN185,RZN185,VZN185

PLANT NO.P11

 1
55330-35060

KZN185,RZN185,VZN185

 1
55330-35060

KZN185,RZN185,VZN185

PLANT NO.A51-A54

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-35010

KZN185,RZN185,VZN185

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-35010

KZN185,RZN185,VZN185

 1
55538D - COVER, SUNSHINE SENSOR HOLE
55538-35010B0

KZN185,RZN185..SSR,SSRV,SSRX

MD.MOON MIST,TRIM1#

 1
55538-35010E0

KZN185,RZN185..SSRV

OAK,TRIM4#

 1
55538-35010B0

KZN185,RZN185..SSR,SSRV

MD.MOON MIST,TRIM1#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-35010

KDN185,KZN185,RZN18#,VZN18#

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-35020

KDN185,KZN185,RZN18#,VZN18#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0W100

KZN185,RZN185,VZN185

 1
73960-0W230

KZN185,RZN185,VZN185

 1
Common parts
90119-06022
90119-06171
90119-08B72
90176-08048
90179-06009
90179-06278
90179-08102
90183-05094
90467-14023
90467-15020
91616-60616
91626-60818
91633-J0620
93567-55016
93568-15014

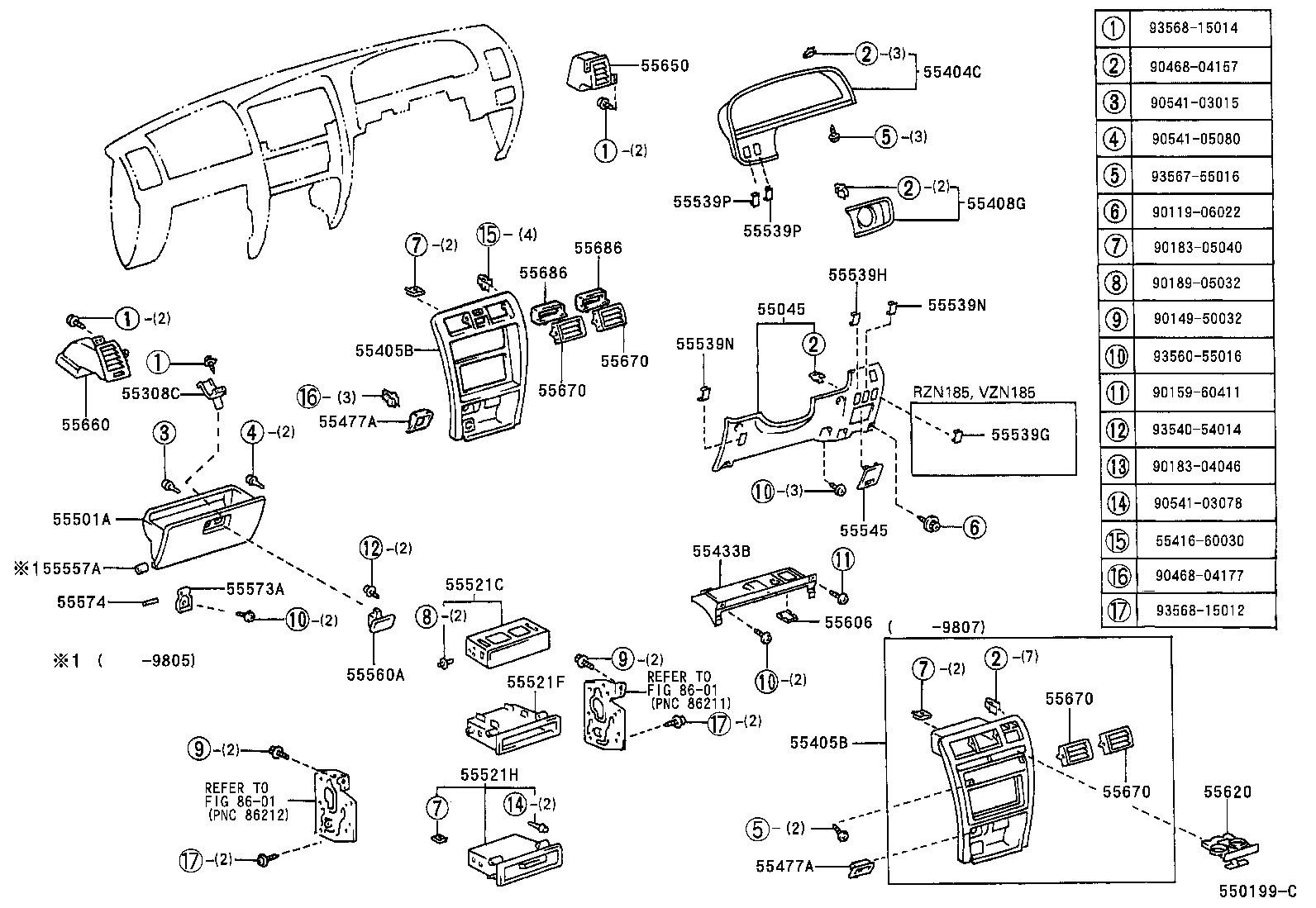

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

diagram 55045 55308C 55404C 55405B 55405B 55408G 5541660030 55433B 55477A 55477A 55501A 55521C 55521F 55521H 55539G 55539H 55539N 55539N 55539P 55539P 55545 55557A 55560A 55573A 55574 55606 55620 55650 55660 55670 55670 55670 55670 55686 55686 8601 8601 9011906022 9014950032 9015960411 9018304046 9018305040 9018905032 9046804157 9046804177 9054103015 9054103078 9054105080 9354054014 9356055016 9356755016 9356815012 9356815014
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-35030B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55045-35031E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55045-35030E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-35010

KDN185,KZN185,RZN18#,VZN18#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-35090

KDN185,KZN185,RZN18#,VZN185..SSR,SSRG,SSRV,SSRX

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-35030

KZN185,RZN185,VZN185

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-35030

KZN185,RZN185,VZN185

 1
55408G - BEZEL SUB-ASSY, STARTER SWITCH
55408-35020

KDN185,KZN185,RZN18#,VZN185..SSR,SSRG,SSRV,SSRX

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-35020

KDN185,KZN185,RZN18#,VZN18#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-35010

KZN185,RZN18#,VZN18#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-35010

KZN185,RZN18#,VZN18#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55550-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55550-35010B0

KZN185,RZN185,VZN185

MD. MOON MIST,TRIM1#

 1
55550-35040E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55521C - COVER, STEREO OPENING
55521-89104

KZN185,RZN185..SSR,SSRV,SSRX

 1
55521-89104

KDN185,KZN185,RZN18#,VZN18#

 1
55521F - COVER, STEREO OPENING, NO.2
55521-35010

KDN185,KZN185,RZN18#,VZN18#

 1
55521H - COVER ASSY, STEREO OPENING
55520-35040

KDN185,KZN185,RZN18#,VZN18#

 1
55539G - COVER, SPARE SWITCH HOLE
55539-32010B2

RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55539-20080E0

RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55539H - COVER, SPARE SWITCH HOLE
55539-20080B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55539-32010B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
55539-20080E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55539N - COVER, SPARE SWITCH HOLE
55539-32010B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 2
55539-20080B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 2
55539-20080E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 2
55539N - COVER, SPARE SWITCH HOLE
55539-32010B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 2
55539-20080B2

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 2
55539-20080E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 2
55539P - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185,VZN185

 2
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

BLACK,TRIM1#,4#

 2
55539-32010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 2
55539P - COVER, SPARE SWITCH HOLE
55539-89105

KZN185,RZN185,VZN185

 2
55539-32010C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 2
55539-32010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

BLACK,TRIM1#,4#

 2
55539-32010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 2
55545 - COVER, FUSE BOX OPENING
55545-35010B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
55545-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-35010

KZN185,RZN185,VZN185

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-34010B1

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
55560-34010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-32010

KDN185,KZN185,RZN18#,VZN18#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
90254-04016

KDN185,KZN185,RZN18#,VZN18#

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-35010

KZN185,RZN185,VZN185

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-35040

KZN185,RZN185,VZN185

 1
55620-35050

KZN185,RZN185,VZN185

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-35030

KDN185,KZN185,RZN18#,VZN18#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-35050

KDN185,KZN185,RZN18#,VZN18#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55063-35010

KZN185,RZN18#,VZN18#

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55063-35010

KZN185,RZN18#,VZN18#

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55063-35010

KZN185,RZN18#,VZN18#

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55063-35010

KZN185,RZN18#,VZN18#

 2
Common parts
55416-60030
90119-06022
90149-50032
90159-60411
90183-04046
90183-05040
90189-05032
90468-04157
90468-04177
90541-03015
90541-03078
90541-05080
93540-54014
93560-55016
93567-55016
93568-15012
93568-15014
Linked diagrams
8601
