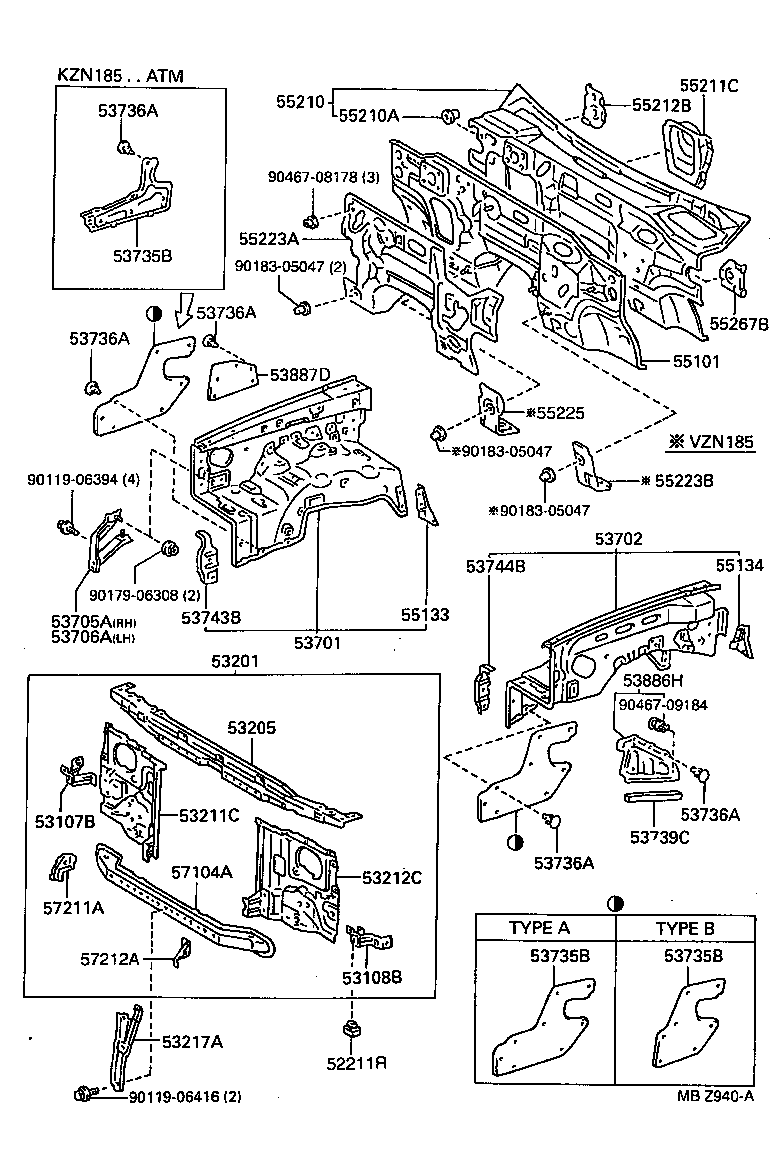

RZN185W-GAMVK (1995)
Toyota Hilux Surf
(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211R - CUSHION, BODY MOUNTING, NO.1 | ||||
| 52211-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53107B - BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH | ||||
| 53107-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53108B - BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH | ||||
| 53108-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-35100 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-35011 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53205-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53202-35090 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53203-35100 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-35540 |
RZN185 |
1 | ||
| 53701-35500 |
RZN185 ｱﾘ(ABS) |
1 | ||
| 53701-35501 |
RZN185,VZN185 ｱﾘ(ABS) |
1 | ||
| 53701-35502 |
RZN185,VZN185 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-35540 |
RZN185,VZN185 |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 53735B - SEAL, FRONT FENDER APRON, UPPER | ||||
| 53735-35020 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
2 | ||
| 53735-35030 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ B |
1 | ||
| 53735-35020 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ A |
1 | ||
| 53735B - SEAL, FRONT FENDER APRON, UPPER | ||||
| 53735-35020 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
2 | ||
| 53735-35030 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ B |
1 | ||
| 53735-35020 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ A |
1 | ||
| 53735B - SEAL, FRONT FENDER APRON, UPPER | ||||
| 53735-35020 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
2 | ||
| 53735-35030 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ B |
1 | ||
| 53735-35020 |
RZN185;KZN185..5F..(SSR,SSRV,SSRX) ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L),ﾀｲﾌﾟ A |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
KZN185..5F;RZN185,VZN185 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
20 | ||
| 90467-10186 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
KZN185..5F;RZN185,VZN185 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
20 | ||
| 90467-10186 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
KZN185..5F;RZN185,VZN185 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
20 | ||
| 90467-10186 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
KZN185..5F;RZN185,VZN185 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
20 | ||
| 90467-10186 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
KZN185..5F;RZN185,VZN185 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26R + 85D26L) |
20 | ||
| 90467-10186 |
KZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX |
21 | ||
| 53739C - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53886H - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-60010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53886-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53887D - SEAL, FRONT FENDER SPLASH SHIELD, NO.1 | ||||
| 53887-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-35929 |
RZN185..5F |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-35150 |
KZN185,RZN185,VZN185 |
1 | ||
| 55210A - CLIP | ||||
| 90467-13035 |
KDN185,KZN185,RZN18#,VZN18# |
5 | ||
| 55211C - COVER, DASH PANEL INSULATOR | ||||
| 55211-35020 |
KZN185,RZN18#,VZN18# |
1 | ||
| 55212B - COVER, DASH PANEL INSULATOR, NO.2 | ||||
| 55212-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 55225 - INSULATOR, DASH PANEL HEAT | ||||
| 55225-35060 |
RZN185,VZN185 |
1 | ||
| 55267B - COVER, DASH PANEL INSULATOR, NO.3 | ||||
| 55267-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57211A - BRACKET, BODY MOUNTING, NO.1 RH | ||||
| 57211-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 57212A - BRACKET, BODY MOUNTING, NO.1 LH | ||||
| 57212-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90119-06394 | ||||
| 90119-06416 | ||||
| 90179-06308 | ||||
| 90183-05047 | ||||
| 90467-08178 | ||||
| 90467-09184 | ||||
