RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

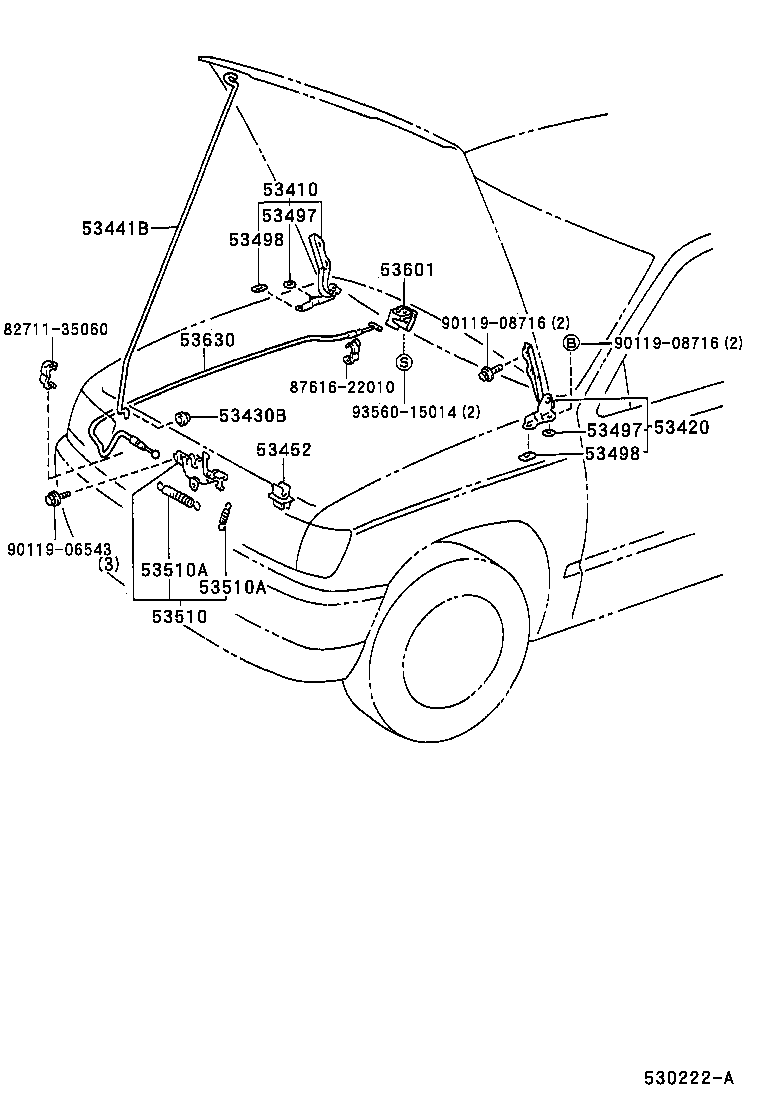

Click highlighted areas on diagram

diagram 53410 53420 53430B 53441B 53452 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 8271135060 8761622010 9011906543 9011908716 9011908716 9356015014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-35020

KDN185,KZN185,RZN18#,VZN18#

 1
53420 - HINGE ASSY, HOOD, LH
53420-35020

KDN185,KZN185,RZN18#,VZN18#

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-15028

KDN185,KZN185,RZN18#,VZN18#

 1
53441B - SUPPORT, HOOD
53441-35020

KZN185,RZN18#,VZN18#

 1
53452 - HOLDER, HOOD STAY
53452-90351

KDN185,KZN185,RZN18#,VZN18#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-35010

KDN185,KZN185,RZN18#,VZN18#

 2
53497 - PAD, HOOD HINGE, NO.1
53497-35010

KDN185,KZN185,RZN18#,VZN18#

 2
53498 - PAD, HOOD HINGE, NO.2
53497-35010

KDN185,KZN185,RZN18#,VZN18#

 2
53498 - PAD, HOOD HINGE, NO.2
53497-35010

KDN185,KZN185,RZN18#,VZN18#

 2
53510 - LOCK ASSY, HOOD
53510-35090

KDN185,KZN185,RZN18#,VZN18#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

KDN185,KZN185,RZN18#,VZN18#

線径=2.0,ｺｲﾙ巻数=17

 1
90506-09055

KDN185,KZN185,RZN18#,VZN18#

線径=0.9,ｺｲﾙ巻数=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

KDN185,KZN185,RZN18#,VZN18#

線径=2.0,ｺｲﾙ巻数=17

 1
90506-09055

KDN185,KZN185,RZN18#,VZN18#

線径=0.9,ｺｲﾙ巻数=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-10020E3

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
53601-10020B3

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
82711-35060
87616-22010
90119-06543
90119-08716
93560-15014
