RZN185W-GAMVK (1995)
Toyota Hilux Surf

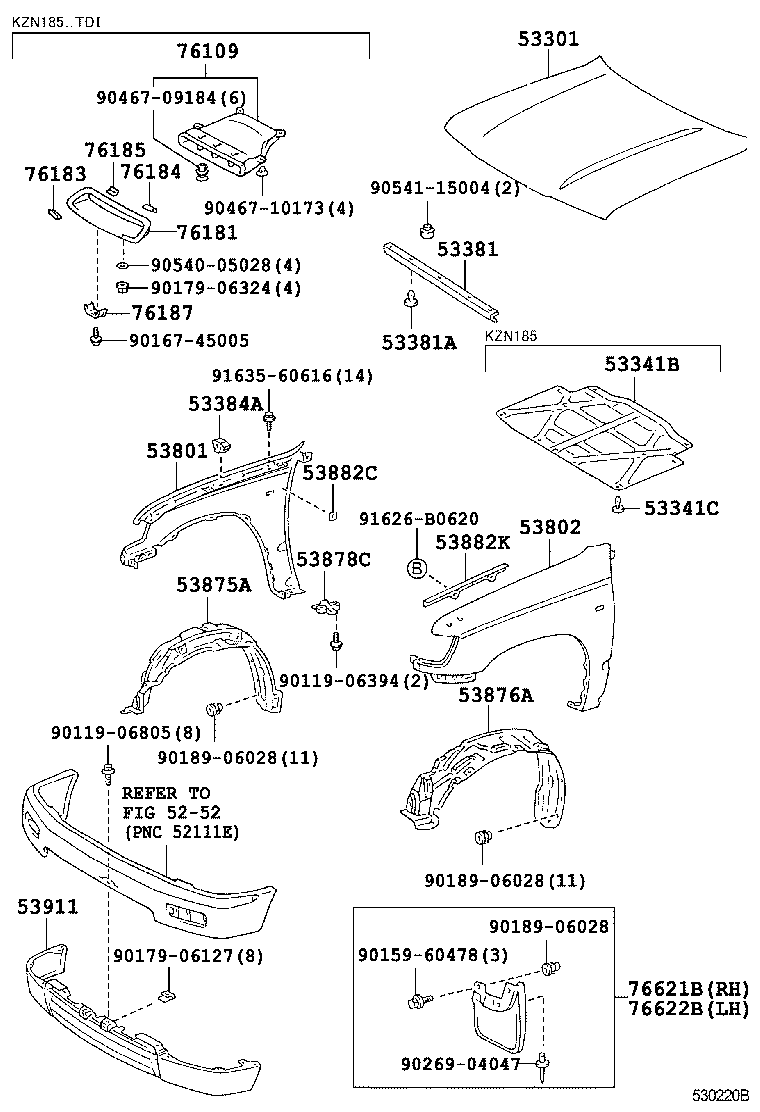

ILLUST NO. 1 OF 2(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35040 |
KZN185,RZN18#,VZN18#..EFI,TDE |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
KDN185,KZN185,RZN18#,VZN18# |
5 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-35100 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-35160 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
KZN185,RZN18#,VZN18# |
6 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-35180D0 |
KZN185,RZN185,VZN185..WIB RED MM,TRIM16&3K4 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#&1A5 |
1 | ||
| 53911-35140 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#,4#&1A5 |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-39395 |
KZN185,RZN185..SSR |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-39395 |
KZN185,RZN185..SSR |
1 | ||
| Common parts | ||||
| 90119-06394 | ||||
| 90119-06805 | ||||
| 90159-60478 | ||||
| 90167-45005 | ||||
| 90179-06127 | ||||
| 90179-06324 | ||||
| 90189-06028 | ||||
| 90269-04047 | ||||
| 90467-09184 | ||||
| 90467-10173 | ||||
| 90540-05028 | ||||
| 90541-15004 | ||||
| 91626-B0620 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 5252 | ||||

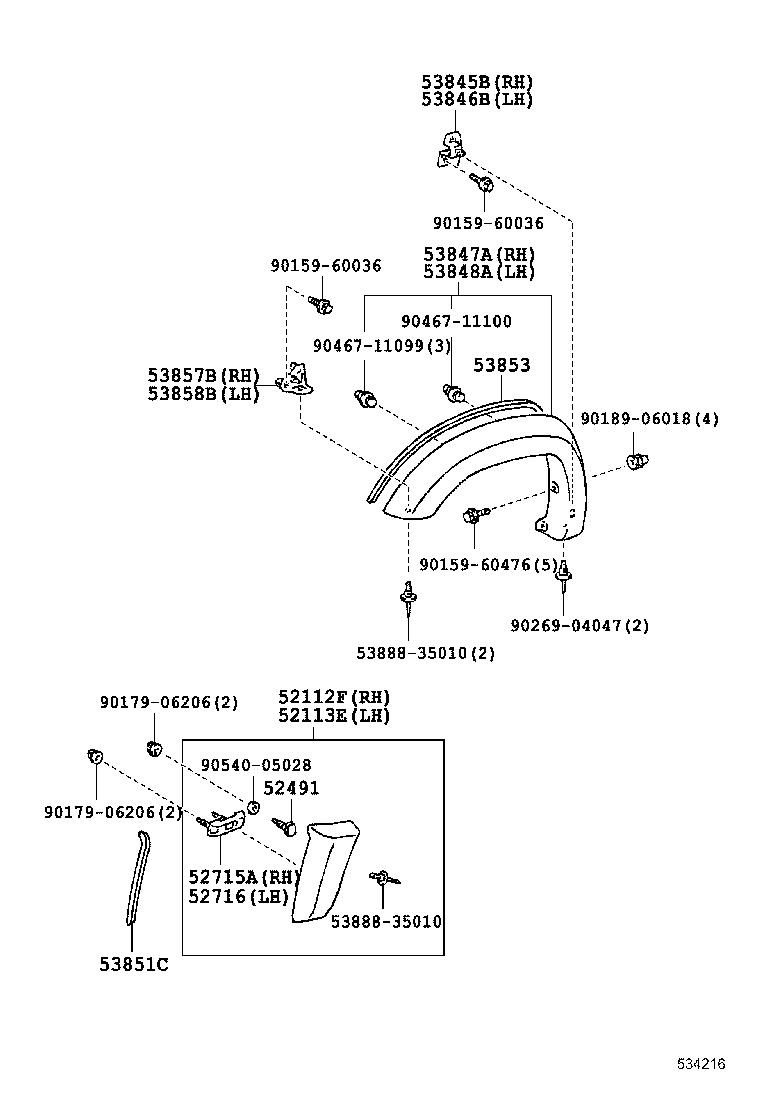

ILLUST NO. 2 OF 2(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52491 - BOLT, BUMPER PAD | ||||
| 52491-35010 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
4 | ||
| 52715A - RETAINER, FRONT BUMPER MOULDING, NO.1 RH | ||||
| 52715-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52716 - RETAINER, FRONT BUMPER MOULDING, NO.1 LH | ||||
| 52716-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53845B - EXTENSION, FRONT WHEEL OPENING, NO.1 RH | ||||
| 53845-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53846B - EXTENSION, FRONT WHEEL OPENING, NO.1 LH | ||||
| 53846-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53087-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53088-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-35010 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53851-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53851-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-35020 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53853-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53853-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53858-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| Common parts | ||||
| 53888-35010 | ||||
| 90159-60036 | ||||
| 90159-60476 | ||||
| 90179-06206 | ||||
| 90189-06018 | ||||
| 90269-04047 | ||||
| 90467-11099 | ||||
| 90467-11100 | ||||
| 90540-05028 | ||||
