RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-ｶﾞ-ﾄﾞ)

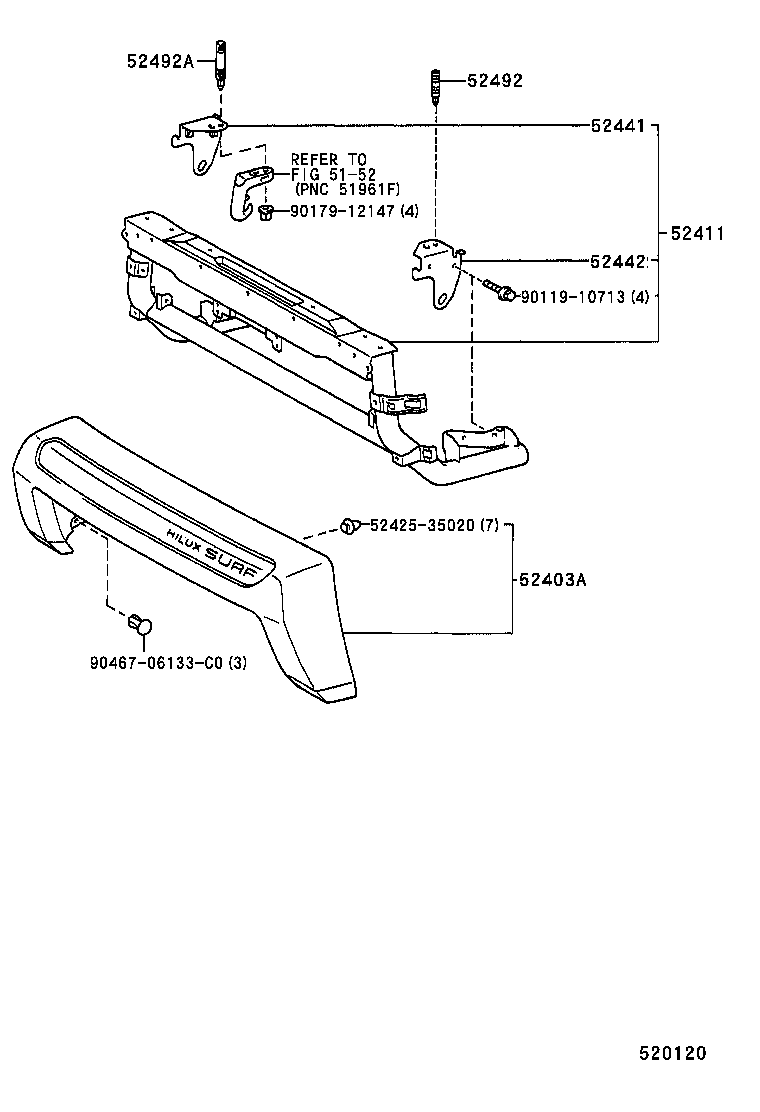

diagram 5152 52403A 52411 5242535020 52441 52442 52492 52492A 9011910713 9017912147 9046706133C0
Part # Description Qty Price
52403A - PAD SUB-ASSY, FRONT BUMPER GUARD
52403-35020B0

KZN185,RZN185,VZN185

WARM GRAY PEAL ME,1A5

 1
52403-35020B0

KZN185,RZN185,VZN185..WIB

WARM GRAY PEAL ME,1A5

 1
52403-35010

KZN185,RZN185,VZN185..WIB

 1
52403-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
52403-35020D0

KZN185,RZN185,VZN185..WIB

RED MM,3K4

 1
52411 - GUARD, FRONT BUMPER
52401-35020

KZN185,RZN185,VZN185..WIB

 1
52401-35020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
52441 - BASE, FRONT BUMPER GUARD, NO.1 RH
52441-35030

KZN185,RZN185,VZN185..WIB

 1
52441-35030

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
52442 - BASE, FRONT BUMPER GUARD, NO.1 LH
52442-35030

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
52442-35030

KZN185,RZN185,VZN185..WIB

 1
52492 - BOLT, BUMPER PAD, NO.2
52492-35010

KZN185,RZN185,VZN185..WIB

 2
52492-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 2
52492A - BOLT, BUMPER PAD, NO.3
52492-35020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 2
52492-35020

KZN185,RZN185,VZN185..WIB

 2
Common parts
52425-35020
90119-10713
90179-12147
90467-06133C0
Linked diagrams
5152

(9511-9807)

Click highlighted areas on diagram

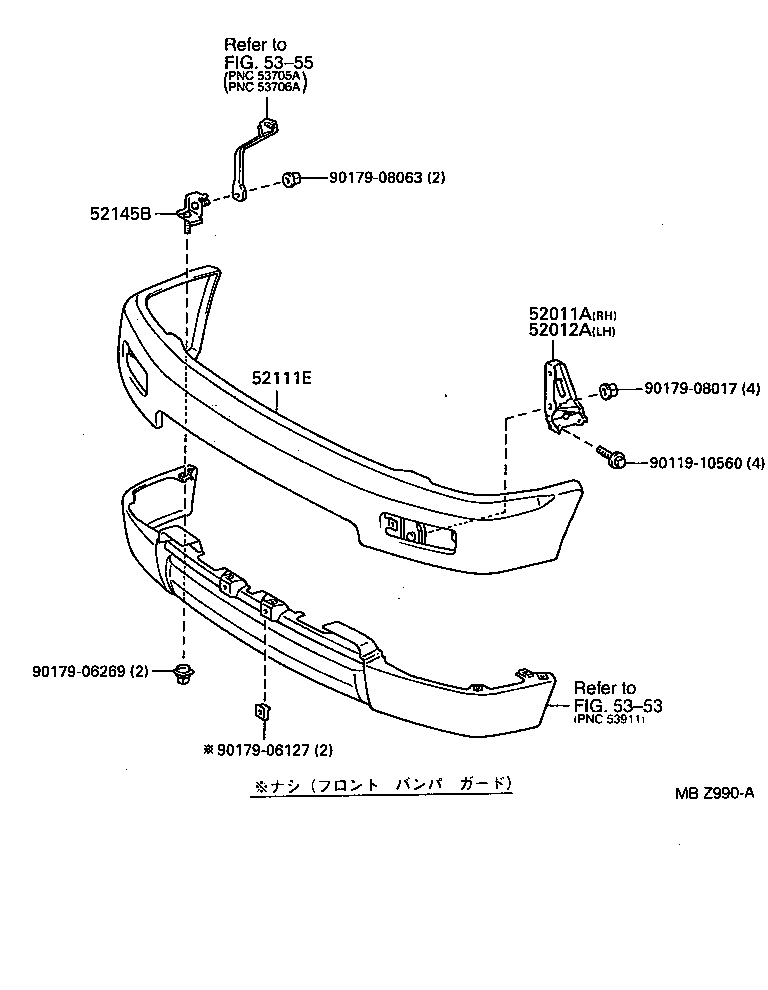

diagram 52011A 52012A 52111E 52145B 5353 5355 9011910560 9017906127 9017906269 9017908017 9017908063
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-35050

KZN185,RZN185,VZN185

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52142-35050

KZN185,RZN185,VZN185

 1
52111E - BAR, FRONT BUMPER
52101-35330

KZN185,RZN185,VZN185..WIB

塗装不要

 1
52101-35350D0

KZN185,RZN185,VZN185..WIB

RED MM,3K4

 1
52101-35350B0

KZN185,RZN185,VZN185..WIB

WARM GRAY PEARL ME.,1A5

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-35030

KZN185,RZN185,VZN185

左側

 1
52145-35030

KZN185,RZN185,VZN185

右側

 1
Common parts
90119-10560
90179-06127
90179-06269
90179-08017
90179-08063
Linked diagrams
5353
5355
