RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

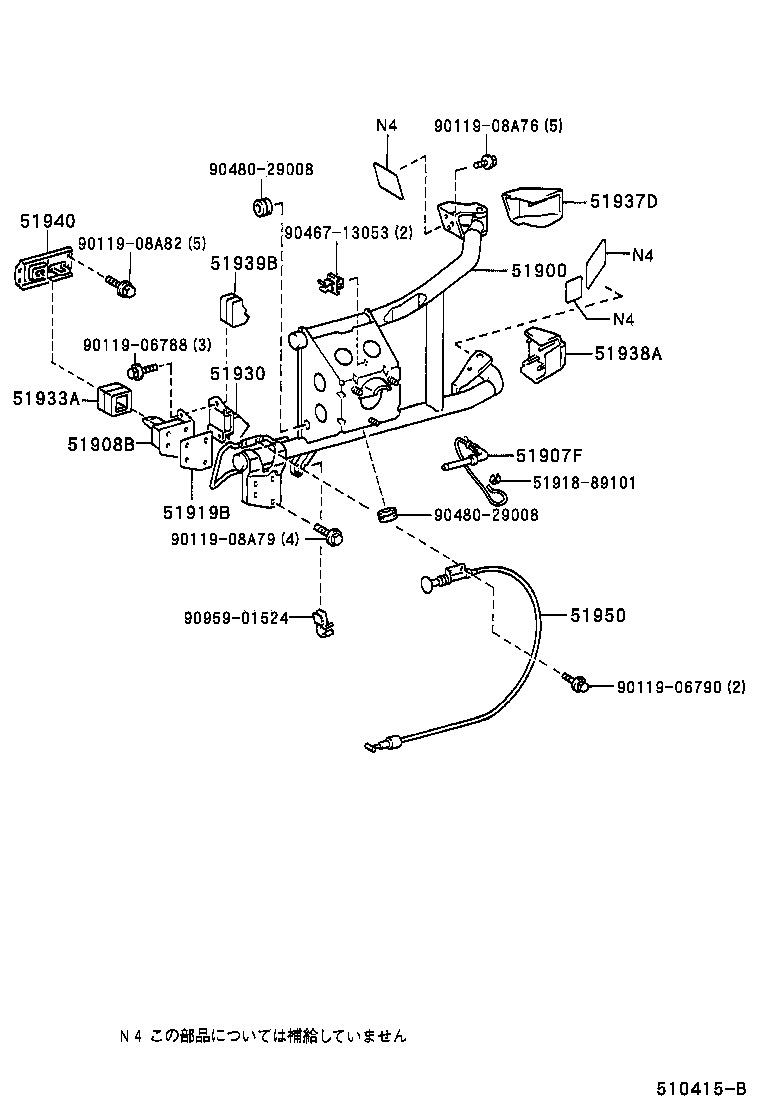

Click highlighted areas on diagram

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ (ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

diagram 51900 51907F 51908B 5191889101 51919B 51930 51933A 51937D 51938A 51939B 51940 51950 9011906788 9011906790 9011908A76 9011908A79 9011908A82 9046713053 9048029008 9048029008 9095901524
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-35090

KZN185,RZN185,VZN185..WIB

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
51900-35230

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
51907F - STOPPER SUB-ASSY, SPARE WHEEL CARRIER
51907-35030

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51908B - RETAINER SUB-ASSY, SPARE WHEEL CARRIER LOCK
51908-35020

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51930 - LOCK ASSY, SPARE WHEEL CARRIER
51930-35050

KZN185,RZN185,VZN185..WIB

 1
51930-35051

KZN185,RZN185,VZN185..WIB

 1
51933A - STOPPER, SPARE WHEEL, NO.1
51933-35170

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51933-35180

KZN185,RZN185,VZN185..WIB

 1
51937D - COVER, SPARE WHEEL CARRIER HINGE, UPPER
51937-35040

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51938A - HANGER, SPARE WHEEL CARRIER LOCK SPRING
51938-35050

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51939B - COVER, SPARE WHEEL CARRIER LOCK
51939-89102

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51940 - STRIKER ASSY, SPARE WHEEL CARRIER LOCK
51940-35010

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
51950 - CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL
51950-35010

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
Common parts
51918-89101
90119-06788
90119-06790
90119-08A76
90119-08A79
90119-08A82
90467-13053
90480-29008
90959-01524

(9511- )

Click highlighted areas on diagram

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

diagram 51900 51915A 51915A 51933C 51933C 9165160818 9165160818 9165160818
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-35090

KZN185,RZN185,VZN185..WIB

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
51900-35230

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
51915A - BASE, SPARE WHEEL CARRIER
51915-35040

KZN185,RZN18#,VZN18#

 2
51915A - BASE, SPARE WHEEL CARRIER
51915-35040

KZN185,RZN18#,VZN18#

 2
Common parts
91651-60818
