RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

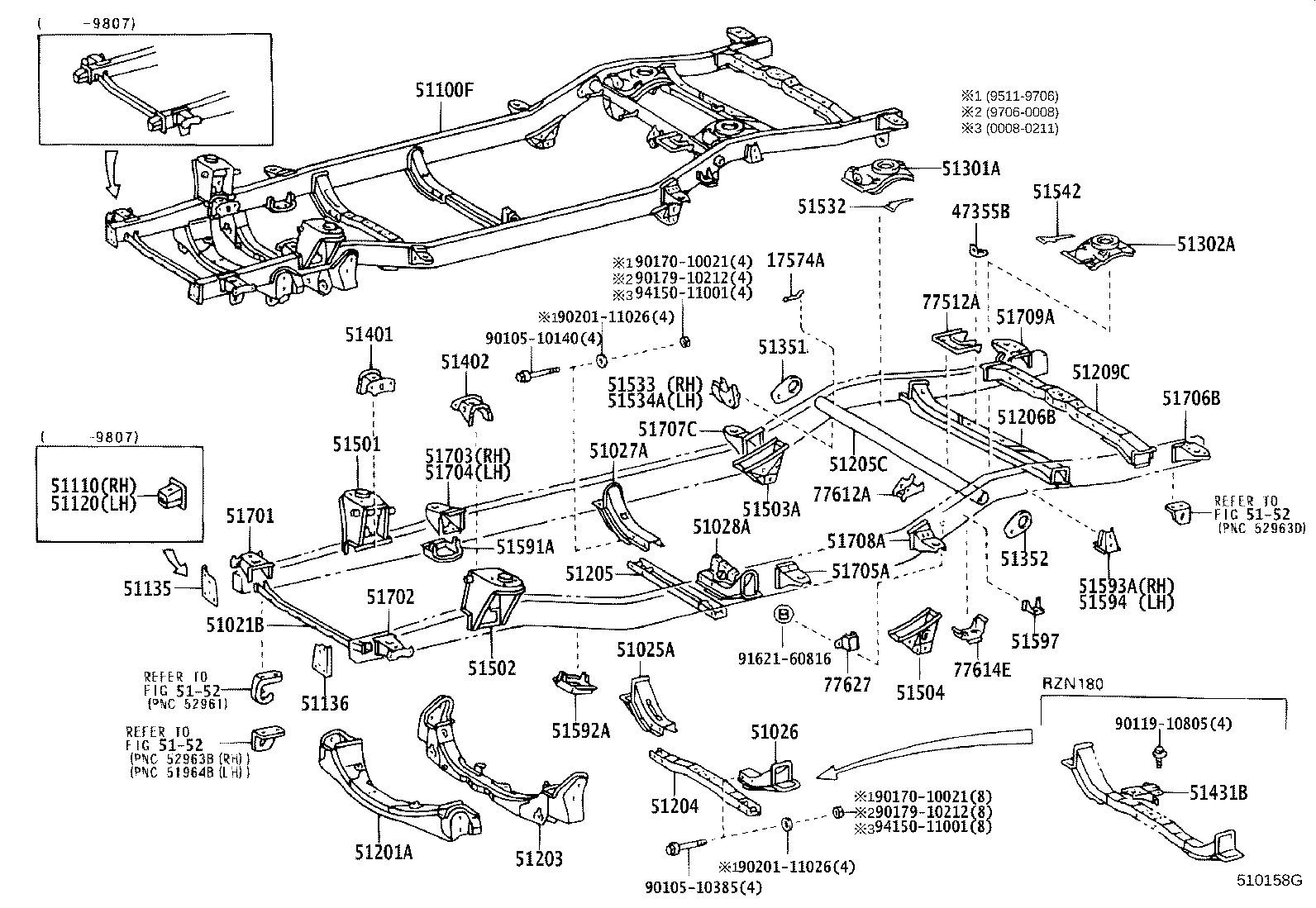

Click highlighted areas on diagram

diagram 17574A 47355B 51021B 51025A 51026 51027A 51028A 51100F 51110 51120 51135 51136 51201A 51203 51204 51205 51205C 51206B 51209C 51301A 51302A 51351 51352 51401 51402 51431B 51501 51502 51503A 51504 5152 5152 5152 51532 51533 51534A 51542 51591A 51592A 51593A 51594 51597 51701 51702 51703 51704 51705A 51706B 51707C 51708A 51709A 77512A 77612A 77614E 77627 9010510140 9010510385 9011910805 9017010021 9017010021 9017910212 9017910212 9020111026 9020111026 9162160816 9415011001 9415011001
Part # Description Qty Price
17574A - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-67010

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 2
47355B - BRACKET, FLEXIBLE HOSE, NO.5
47355-35100

KZN185,RZN18#,VZN18#

 1
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-35040

KZN185,RZN185,VZN185

 1
51021-60010

KDN185,KZN185,RZN18#,VZN18#

 1
51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH
51025-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH
51026-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51027-35010

KDN185,KZN185,RZN18#,VZN18#

 1
51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51028-35010

KDN185,KZN185,RZN18#,VZN18#

 1
51100F - FRAME SUB-ASSY
51003-3D790

RZN185..5F

 1
51003-3D820

RZN185..WIB..5F

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｶﾞ-ﾄﾞ)

 1
51003-3D791

RZN185..5F

 1
51003-3D792

RZN185..5F

 1
51110 - EXTENSION ASSY, SIDE RAIL, RH
51110-35010

KZN185,RZN185,VZN185

 1
51120 - EXTENSION ASSY, SIDE RAIL, LH
51120-35010

KZN185,RZN185,VZN185

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-35261

KDN185,KZN185,RZN18#,VZN18#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35350

KDN185,KZN185,RZN18#,VZN18#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-35320

KZN185,RZN185,VZN185

 1
51203-35321

KDN185,KZN185,RZN185,VZN18#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35530

KDN185,KZN185,RZN18#,VZN18#

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-35090

KDN185,KZN185,RZN18#,VZN18#

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-35040

KZN185,RZN18#,VZN18#

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-35170

KZN185,RZN18#,VZN18#

 1
51301A - BRACKET SUB-ASSY, REAR SPRING, REAR RH
51301-35030

KDN185,KZN185,RZN18#,VZN18#

 1
51302A - BRACKET SUB-ASSY, REAR SPRING, REAR LH
51302-35040

KDN185,KZN185,RZN18#,VZN18#

 1
51351 - GUSSET, CROSSMEMBER, NO.5 RH
51351-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51352 - GUSSET, CROSSMEMBER, NO.5 LH
51351-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35320

RZN18#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-35320

RZN18#

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35100

KDN185,KZN185,RZN18#,VZN18#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35100

KDN185,KZN185,RZN18#,VZN18#

 1
51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51503-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51504-35010

KDN185,KZN185,RZN18#,VZN18#

 1
51533 - BRACKET, UPPER CONTROL LINK, RH
51533-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51534A - BRACKET, UPPER CONTROL LINK, LH
51534-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51591A - SUPPORT, STABILIZER, RH
51591-35060

KDN185,KZN185,RZN18#,VZN18#

 1
51592A - SUPPORT, STABILIZER, LH
51592-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51593A - BRACKET, REAR SPRING BUMPER, RH
51593-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51594 - BRACKET, REAR SPRING BUMPER, LH
51594-35020

KDN185,KZN185,RZN18#,VZN18#

 1
51597 - BRACKET, REAR STABILIZER SUPPORT, FRONT
51597-35010

KDN185,KZN185,RZN18#,VZN18#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35140

KDN185,KZN185,RZN18#,VZN18#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-35140

KDN185,KZN185,RZN18#,VZN18#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35110

KZN185,RZN18#,VZN18#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-35110

KZN185,RZN18#,VZN18#

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35160

KDN185,KZN185,RZN18#,VZN18#

 2
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-35030

KDN185,KZN185,RZN18#,VZN18#

 1
51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51707-35071

KDN185,KZN185,RZN18#,VZN18#

 1
51707-35070

KZN185,RZN185,VZN185

 1
51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51708-35071

KDN185,KZN185,RZN18#,VZN18#

 1
51708-35070

KZN185,RZN185,VZN185

 1
51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING
51709-35030

KDN185,KZN185,RZN18#,VZN18#

 1
77512A - BRACKET, FUEL TANK, REAR
77512-35080

KDN185,KZN185,RZN18#,VZN18#

 1
77612A - BRACKET, FUEL TANK BAND
77612-35040

KDN185,KZN185,RZN18#,VZN18#

 1
77614E - BRACKET, FUEL TANK BAND, NO.2
77614-35030

KDN185,KZN185,RZN18#,VZN18#

 1
77627 - SPACER, FUEL TANK BAND
77627-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90105-10140
90105-10385
90119-10805
90170-10021
90179-10212
90201-11026
91621-60816
94150-11001
Linked diagrams
5152
