RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

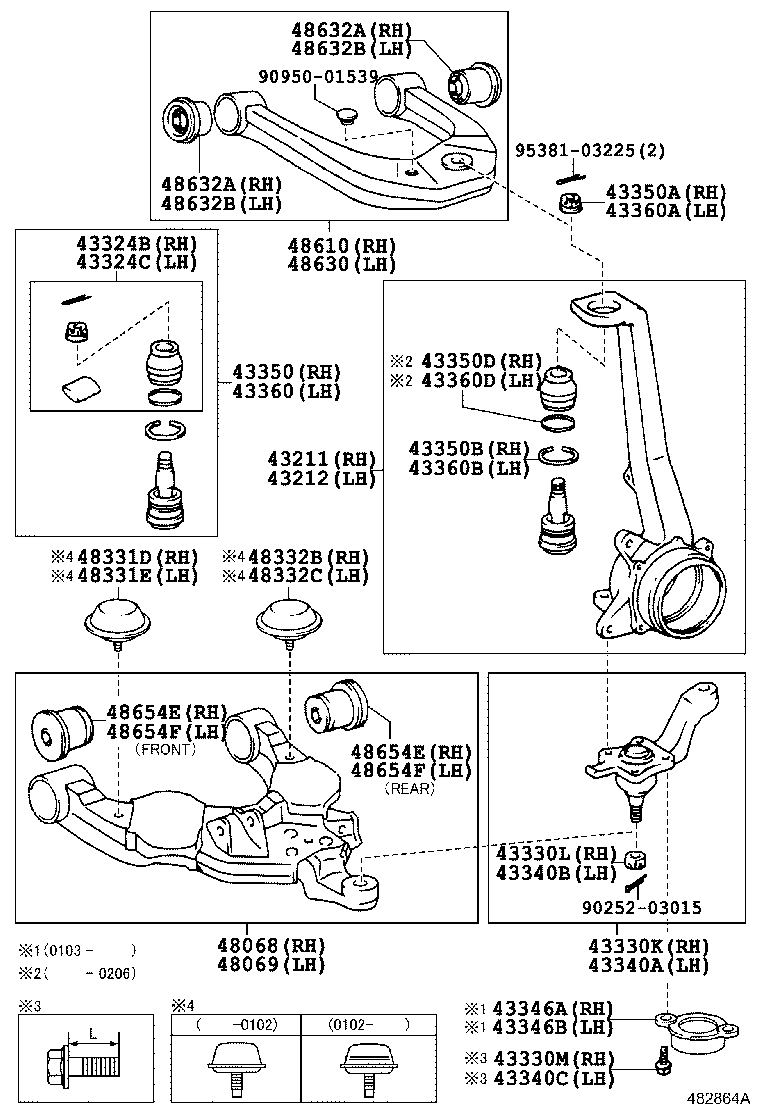

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

diagram 43211 43212 43324B 43324C 43330K 43330L 43330M 43340A 43340B 43340C 43346A 43346B 43350 43350A 43350B 43350D 43360 43360A 43360B 43360D 48068 48069 48331D 48331E 48332B 48332C 48610 48630 48632A 48632A 48632B 48632B 48654E 48654E 48654F 48654F 9025203015 9095001539 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-35070

KZN185,RZN185..SSR,SSRV,SSRX

 1
43201-35080

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 1
43212 - KNUCKLE, STEERING, LH
43202-35070

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 1
43202-35060

KZN185,RZN185..SSR,SSRV,SSRX

 1
43324B - COVER, FRONT UPPER BALL JOINT DUST, RH
43324-39015

KDN185,KZN185,RZN18#,VZN18#

 1
43324C - COVER, FRONT UPPER BALL JOINT DUST, LH
43324-39015

KDN185,KZN185,RZN18#,VZN18#

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39415

KDN185,KZN185,RZN18#,VZN18#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-16050

KDN185,KZN185,RZN18#,VZN18#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-10406

KDN185,KZN185,RZN18#,VZN18#

 4
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-39325

KDN185,KZN185,RZN18#,VZN18#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-16050

KDN185,KZN185,RZN18#,VZN18#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-10406

KDN185,KZN185,RZN18#,VZN18#

 4
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43310-39016

KDN185,KZN185,RZN18#,VZN18#

 1
43350A - NUT (FOR FRONT UPPER BALL JOINT RH)
90171-14010

KDN185,KZN185,RZN18#,VZN18#

 1
43350B - RING, SNAP (FOR FRONT UPPER BALL JOINT RH)
90520-39180

KDN185,KZN185,RZN18#,VZN18#

 1
43350D - WIRE (FOR FRONT UPPER BALL JOINT RH)
90580-10001

KDN185,KZN185,RZN18#,VZN18#

 1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43310-39016

KDN185,KZN185,RZN18#,VZN18#

 1
43360A - NUT (FOR FRONT UPPER BALL JOINT LH)
90171-14010

KDN185,KZN185,RZN18#,VZN18#

 1
43360B - RING, SNAP (FOR FRONT UPPER BALL JOINT LH)
90520-39180

KDN185,KZN185,RZN18#,VZN18#

 1
43360D - WIRE (FOR FRONT UPPER BALL JOINT LH)
90580-10001

KDN185,KZN185,RZN18#,VZN18#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-35080

KZN185,RZN185,VZN185

 1
48068-35081

KDN185,KZN185,RZN18#,VZN18#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-35080

KZN185,RZN185,VZN185

 1
48069-35081

KDN185,KZN185,RZN18#,VZN18#

 1
48331D - BUMPER, FRONT SPRING, NO.1 RH
48304-35150

KDN185,KZN185,RZN18#,VZN18#

 1
48331E - BUMPER, FRONT SPRING, NO.1 LH
48304-35150

KDN185,KZN185,RZN18#,VZN18#

 1
48332B - BUMPER, FRONT SPRING, NO.2 RH
48305-35040

KDN185,KZN185,RZN18#,VZN18#

 1
48332C - BUMPER, FRONT SPRING, NO.2 LH
48305-35040

KDN185,KZN185,RZN18#,VZN18#

 1
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-35040

KDN185,KZN185,RZN18#,VZN18#

 1
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-35020

KDN185,KZN185,RZN18#,VZN18#

 1
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-35080

KDN185,KZN185,RZN18#,VZN18#

 2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-35080

KDN185,KZN185,RZN18#,VZN18#

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-35080

KDN185,KZN185,RZN18#,VZN18#

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-35080

KDN185,KZN185,RZN18#,VZN18#

 2
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48061-35050

KDN185,KZN185,RZN18#,VZN18#

ﾘﾔ

 1
48061-35040

KDN185,KZN185,RZN18#,VZN18#

ﾌﾛﾝﾄ

 1
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48061-35050

KDN185,KZN185,RZN18#,VZN18#

ﾘﾔ

 1
48061-35040

KDN185,KZN185,RZN18#,VZN18#

ﾌﾛﾝﾄ

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48061-35050

KDN185,KZN185,RZN18#,VZN18#

ﾘﾔ

 1
48061-35040

KDN185,KZN185,RZN18#,VZN18#

ﾌﾛﾝﾄ

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48061-35050

KDN185,KZN185,RZN18#,VZN18#

ﾘﾔ

 1
48061-35040

KDN185,KZN185,RZN18#,VZN18#

ﾌﾛﾝﾄ

 1
Common parts
90252-03015
90950-01539
95381-03225

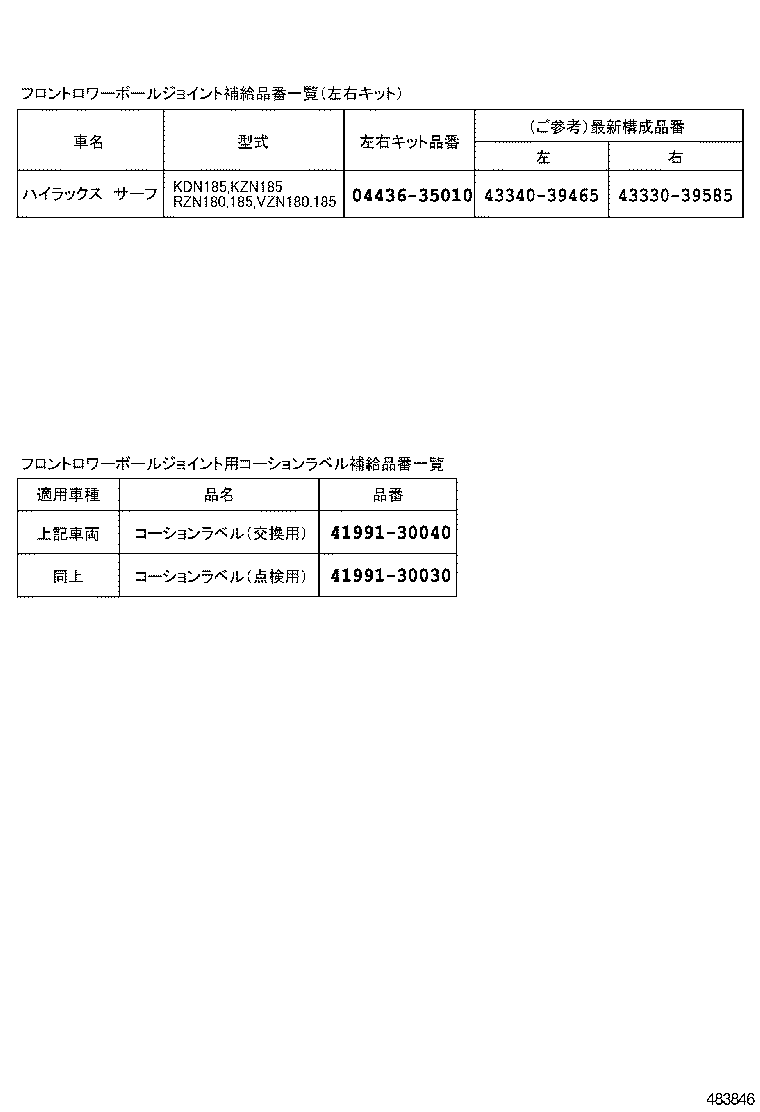

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

diagram 0443635010 4199130030 4199130040
Part # Description Qty Price
Common parts
04436-35010
41991-30030
41991-30040
