RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )RZN18#,VZN18#

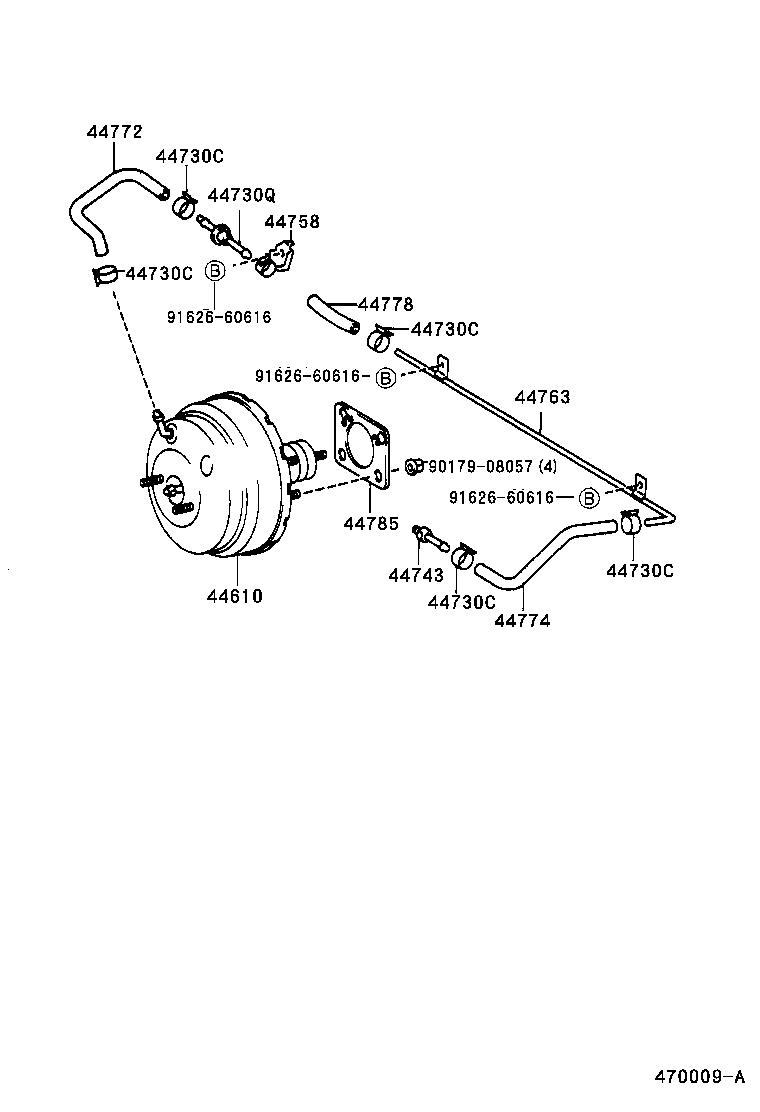

Click highlighted areas on diagram

diagram 44610 44730C 44730C 44730C 44730C 44730C 44730Q 44743 44758 44763 44772 44774 44778 44785 9017908057 9162660616 9162660616 9162660616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D670

RZN185,VZN185

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN18#,VZN18#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN18#,VZN18#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN18#,VZN18#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN18#,VZN18#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

RZN18#,VZN18#

 5
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-10010

KDN185,KZN185,RZN18#,VZN18#

 1
44743 - UNION(FOR VACUUM PUMP)
90404-51319

RZN18#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35070

KDN185,KZN185,RZN18#,VZN18#

 1
44763 - TUBE, BOOSTER VACUUM
44763-35030

RZN18#,VZN18#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-35320

KDN185,KZN185,RZN18#,VZN18#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-35060

RZN18#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
95446-09100

KDN185,KZN185,RZN18#,VZN18#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90179-08057
91626-60616
