RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

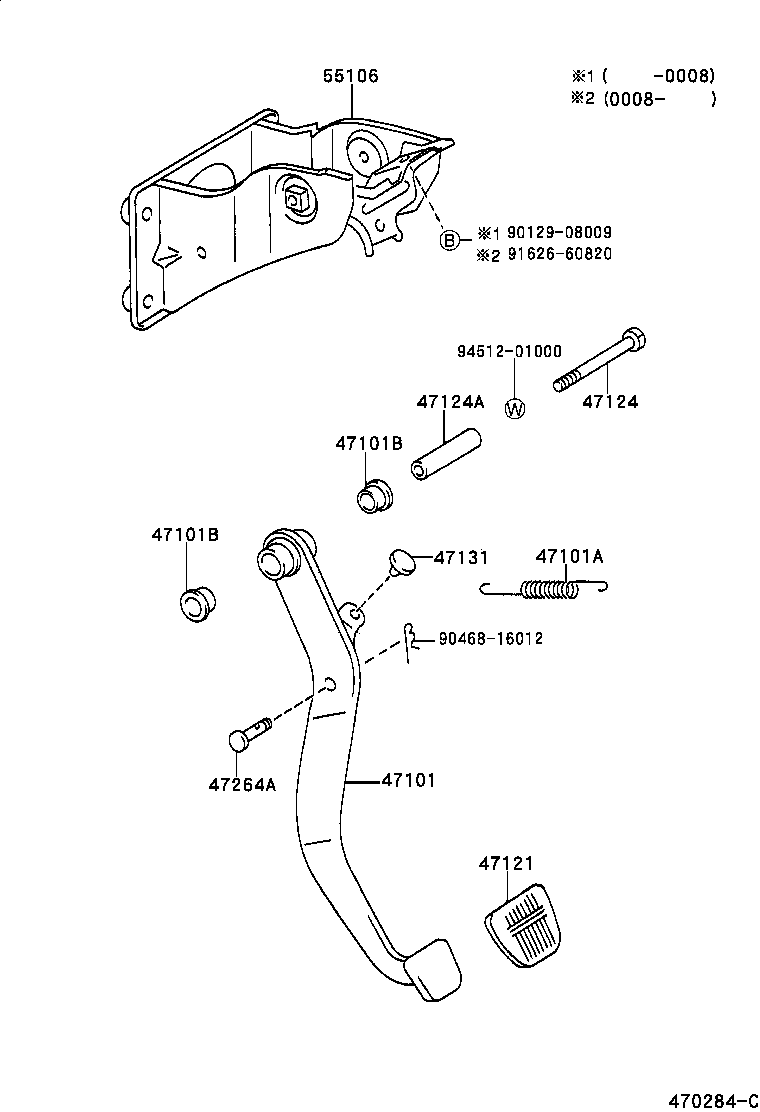

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9012908009 9046816012 9162660820 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35350

KZN185,RZN185..5F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-17002

KZN185,RZN185,VZN185

 1
90905-07021

KDN185,KZN185,RZN18#,VZN18#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KDN185,KZN185,RZN18#,VZN18#

 2
90386-13020

KZN185,RZN185,VZN185

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KDN185,KZN185,RZN18#,VZN18#

 2
90386-13020

KZN185,RZN185,VZN185

 2
47121 - PAD, BRAKE PEDAL
31321-14020

KZN185,RZN185..5F

 1
47124 - SHAFT, BRAKE PEDAL
91112-61060

KZN185,RZN185,VZN185

 1
90101-10039

KDN185,KZN185,RZN18#,VZN18#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

KDN185,KZN185,RZN18#,VZN18#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

KDN185,KZN185,RZN18#,VZN18#

 1
47264A - PIN(FOR PUSH ROD)
47148-35010

KDN185,KZN185,RZN18#,VZN18#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-35100

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90129-08009
90468-16012
91626-60820
94512-01000
