RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

Click highlighted areas on diagram

3-SPOKE, MOMO

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-43020E0

KZN185,RZN185,VZN185..SSRV,SSRX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-26210C0

KZN185,RZN185..SSR,SSRV,SSRX

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-35361E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
45130-26250C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDN185,KZN185,RZN18#,VZN18#

 1

(9708- )

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45186 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-43020E0

KZN185,RZN185,VZN185..SSRV,SSRX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-26210C0

KZN185,RZN185..SSR,SSRV,SSRX

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-35361E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
45130-26250C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDN185,KZN185,RZN18#,VZN18#

 1

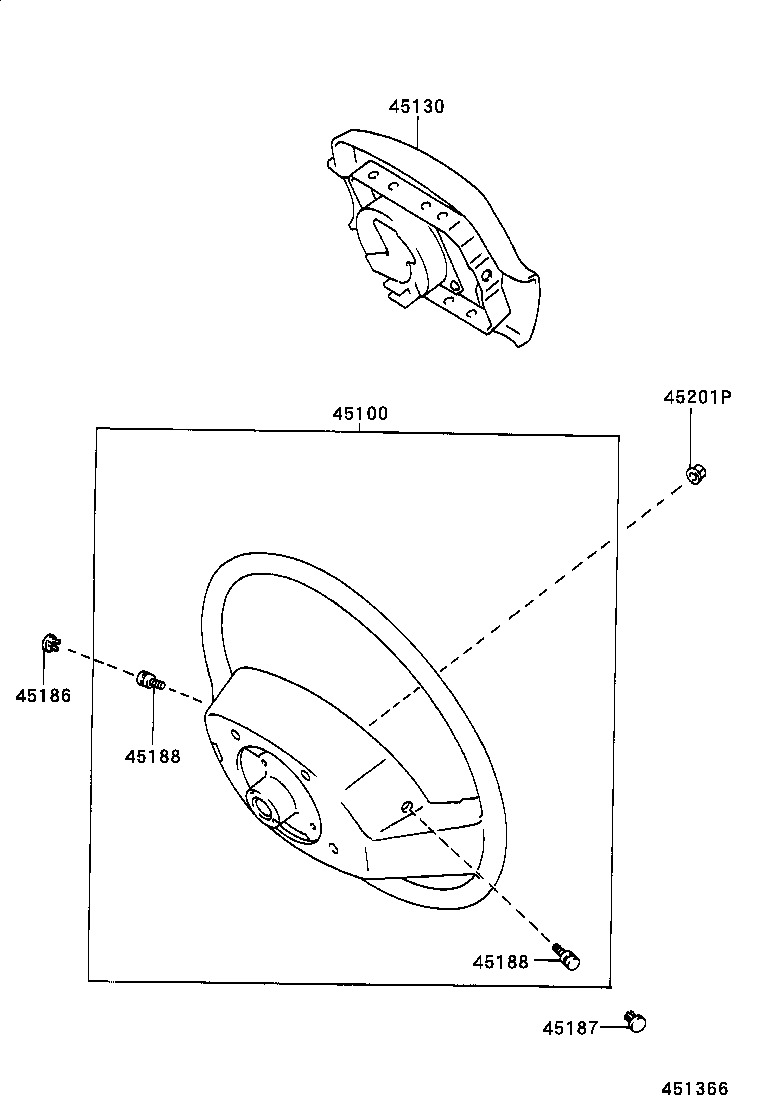

(9511-9708)

Click highlighted areas on diagram

2-SPOKE,ﾅｼ(ｸﾙ-ｽﾞ ｺﾝﾄﾛ-ﾙ)

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-43020E0

KZN185,RZN185,VZN185..SSRV,SSRX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-26210C0

KZN185,RZN185..SSR,SSRV,SSRX

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-35361E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
45130-26250C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KZN185,RZN185..SSR,SSRV,SSRX

長さ=15.5

 2
90148-60011

KZN185,RZN185,VZN185

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDN185,KZN185,RZN18#,VZN18#

 1
