RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

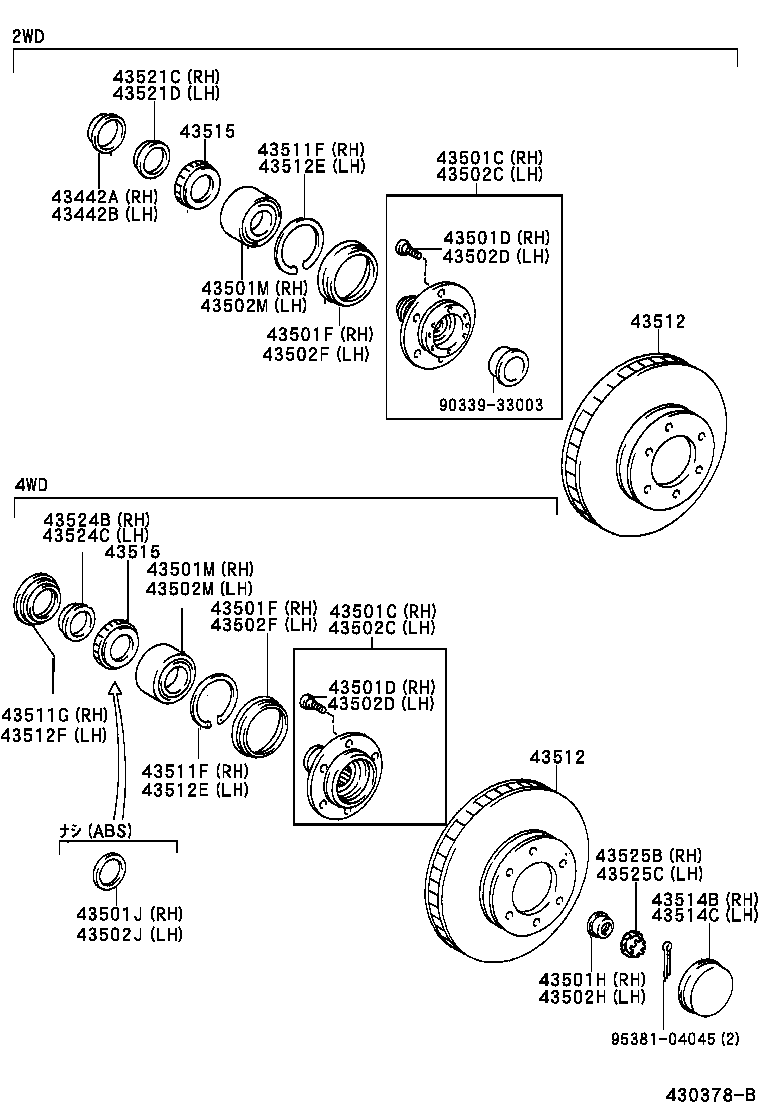

Click highlighted areas on diagram

diagram 43442A 43442B 43501C 43501C 43501D 43501D 43501F 43501F 43501H 43501J 43501M 43501M 43502C 43502C 43502D 43502D 43502F 43502F 43502H 43502J 43502M 43502M 43511F 43511F 43511G 43512 43512 43512E 43512E 43512F 43514B 43514C 43515 43515 43521C 43521D 43524B 43524C 43525B 43525C 9033933003 9538104045
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-35170

KDN185,KZN185,RZN185,VZN185

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-35170

KDN185,KZN185,RZN185,VZN185

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

KDN185,KZN185,RZN18#,VZN18#

 6
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

KDN185,KZN185,RZN18#,VZN18#

 6
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90312-95001

KDN185,KZN185,RZN18#,VZN18#

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90312-95001

KDN185,KZN185,RZN18#,VZN18#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90179-28007

KDN185,KZN185,RZN185,VZN185

 1
43501J - SPACER (FOR FRONT AXLE HUB RH)
90560-52001

KZN185,RZN185..SSR,SSRV,SSRX

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90369-54001

KDN185,KZN185,RZN18#,VZN18#

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90369-54001

KDN185,KZN185,RZN18#,VZN18#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-35170

KDN185,KZN185,RZN185,VZN185

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-35170

KDN185,KZN185,RZN185,VZN185

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

KDN185,KZN185,RZN18#,VZN18#

 6
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

KDN185,KZN185,RZN18#,VZN18#

 6
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90312-95001

KDN185,KZN185,RZN18#,VZN18#

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90312-95001

KDN185,KZN185,RZN18#,VZN18#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90179-28007

KDN185,KZN185,RZN185,VZN185

 1
43502J - SPACER (FOR FRONT AXLE HUB LH)
90560-52001

KZN185,RZN185..SSR,SSRV,SSRX

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90369-54001

KDN185,KZN185,RZN18#,VZN18#

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90369-54001

KDN185,KZN185,RZN18#,VZN18#

 1
43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-99114

KDN185,KZN185,RZN18#,VZN18#

 1
43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-99114

KDN185,KZN185,RZN18#,VZN18#

 1
43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
90316-69001

KDN185,KZN185,RZN185,VZN185

 1
43512 - DISC, FRONT
43512-35210

KDN185,KZN185,RZN18#,VZN18#..WIB

 2
43512 - DISC, FRONT
43512-35210

KDN185,KZN185,RZN18#,VZN18#..WIB

 2
43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-99114

KDN185,KZN185,RZN18#,VZN18#

 1
43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-99114

KDN185,KZN185,RZN18#,VZN18#

 1
43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
90316-69001

KDN185,KZN185,RZN185,VZN185

 1
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-28010

KDN185,KZN185,RZN185,VZN185

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-28010

KDN185,KZN185,RZN185,VZN185

 1
43515 - ROTOR, SKID CONTROL, FRONT
43515-35010

KDN185,KZN185,RZN18#,VZN18#

 2
43515 - ROTOR, SKID CONTROL, FRONT
43515-35010

KDN185,KZN185,RZN18#,VZN18#

 2
43524B - SPACER, FRONT WHEEL INNER BEARING, RH
43524-35010

KDN185,KZN185,RZN185,VZN185

 1
43524C - SPACER, FRONT WHEEL INNER BEARING, LH
43524-35010

KDN185,KZN185,RZN185,VZN185

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-35010

KDN185,KZN185,RZN185,VZN185

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-35010

KDN185,KZN185,RZN185,VZN185

 1
Common parts
90339-33003
95381-04045
