RZN185W-GAMVK (1995)
Toyota Hilux Surf
(9511- )KDN185,KZN185,RZN185,VZN185
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35050 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
KDN185,KZN185,RZN18#,VZN18# 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
KZN185,RZN185,VZN185 30G,長さ=62.2 |
1 | ||
| 90937-01208 |
KZN185,RZN185,VZN185 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
KZN185,RZN185,VZN185 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01205 |
KZN185,RZN185,VZN185 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01203 |
KZN185,RZN185,VZN185 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01202 |
KZN185,RZN185,VZN185 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01211 |
KZN185,RZN185,VZN185 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01206 |
KZN185,RZN185,VZN185 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01147 |
KDN185,KZN185,RZN18#,VZN18# 2G,厚さ=2.0 |
1 | ||
| 90937-01204 |
KZN185,RZN185,VZN185 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01151 |
KDN185,KZN185,RZN18#,VZN18# 12G,長さ=24.9 |
1 | ||
| 90937-01136 |
KDN185,KZN185,RZN18#,VZN18# 20G,長さ=41.4 |
1 | ||
| 90937-01154 |
KDN185,KZN185,RZN18#,VZN18# 18G,長さ=37.3 |
1 | ||
| 90937-01155 |
KDN185,KZN185,RZN18#,VZN18# 22G,長さ=45.6 |
1 | ||
| 90937-01209 |
KZN185,RZN185,VZN185 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01148 |
KDN185,KZN185,RZN18#,VZN18# 4G,厚さ=2.0 |
1 | ||
| 90937-01150 |
KDN185,KZN185,RZN18#,VZN18# 8G,長さ=16.6 |
1 | ||
| 90937-01210 |
KZN185,RZN185,VZN185 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01156 |
KDN185,KZN185,RZN18#,VZN18# 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
KDN185,KZN185,RZN18#,VZN18# 26G,長さ=53.9 |
1 | ||
| 90937-01153 |
KDN185,KZN185,RZN18#,VZN18# 16G,長さ=33.2 |
1 | ||
| 90937-01152 |
KDN185,KZN185,RZN18#,VZN18# 14G,長さ=29.0 |
1 | ||
| 90937-01158 |
KDN185,KZN185,RZN18#,VZN18# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
KDN185,KZN185,RZN18#,VZN18# 10G,長さ=20.7 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01184 |
KDN185,KZN185,RZN185,VZN185 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KDN185,KZN185,RZN185,VZN185 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KDN185,KZN185,RZN185,VZN185 16G,厚さ=4.5 |
1 | ||
| 90937-01269 |
KDN185,KZN185,RZN185,VZN185 40G,長さ=25.6 |
1 | ||
| 90937-01199 |
KDN185,KZN185,RZN185,VZN185 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01200 |
KDN185,KZN185,RZN185,VZN185 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01194 |
KDN185,KZN185,RZN185,VZN185 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KDN185,KZN185,RZN185,VZN185 12G,厚さ=4.5 |
1 | ||
| 90937-01273 |
KDN185,KZN185,RZN185,VZN185 56G,長さ=28.7 |
1 | ||
| 90937-01271 |
KDN185,KZN185,RZN185,VZN185 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
KDN185,KZN185,RZN185,VZN185 52G,長さ=26.7 |
1 | ||
| 90937-01268 |
KDN185,KZN185,RZN185,VZN185 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01274 |
KDN185,KZN185,RZN185,VZN185 60G,長さ=28.7 |
1 | ||
| 90937-01198 |
KDN185,KZN185,RZN185,VZN185 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01270 |
KDN185,KZN185,RZN185,VZN185 44G,長さ=22.6 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-35130 |
RZN185..5F |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
KDN185,KZN185,RZN185,VZN185 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
KDN185,KZN185,RZN185,VZN185 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
KDN185,KZN185,RZN185,VZN185 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN185,KZN185,RZN185,VZN185 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN185,KZN185,RZN185,VZN185 |
8 | ||
| 37302A - YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35040 |
KZN185,RZN185,VZN185 |
2 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35040 |
KZN185,RZN185,VZN185 |
2 | ||
| 37331A - COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUS | ||||
| 37305-60020 |
RZN185..SSRV,SSRX;KZN185,VZN185..4FC |
1 | ||
| 37305-35020 |
KZN185,RZN185..5F ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 37305-35020 |
KZN185,RZN185..5F |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26053 |
KZN185,RZN185,VZN185 厚さ=2.30−2.32 |
8 | ||
| 90520-26058 |
KZN185,RZN185,VZN185 厚さ=2.40−2.42 |
8 | ||
| 90520-26055 |
KZN185,RZN185,VZN185 厚さ=2.34−2.36 |
8 | ||
| 90520-26059 |
KZN185,RZN185,VZN185 厚さ=2.42−2.44 |
8 | ||
| 90520-26050 |
KZN185,RZN185,VZN185 厚さ=2.44−2.46 |
8 | ||
| 90520-26051 |
KZN185,RZN185,VZN185 厚さ=2.46−2.48 |
8 | ||
| 90520-26056 |
KZN185,RZN185,VZN185 厚さ=2.36−2.38 |
8 | ||
| 90520-26052 |
KZN185,RZN185,VZN185 厚さ=2.28−2.30 |
8 | ||
| 90520-26054 |
KZN185,RZN185,VZN185 厚さ=2.32−2.34 |
8 | ||
| 90520-26057 |
KZN185,RZN185,VZN185 厚さ=2.38−2.40 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26053 |
KZN185,RZN185,VZN185 厚さ=2.30−2.32 |
8 | ||
| 90520-26058 |
KZN185,RZN185,VZN185 厚さ=2.40−2.42 |
8 | ||
| 90520-26055 |
KZN185,RZN185,VZN185 厚さ=2.34−2.36 |
8 | ||
| 90520-26059 |
KZN185,RZN185,VZN185 厚さ=2.42−2.44 |
8 | ||
| 90520-26050 |
KZN185,RZN185,VZN185 厚さ=2.44−2.46 |
8 | ||
| 90520-26051 |
KZN185,RZN185,VZN185 厚さ=2.46−2.48 |
8 | ||
| 90520-26056 |
KZN185,RZN185,VZN185 厚さ=2.36−2.38 |
8 | ||
| 90520-26052 |
KZN185,RZN185,VZN185 厚さ=2.28−2.30 |
8 | ||
| 90520-26054 |
KZN185,RZN185,VZN185 厚さ=2.32−2.34 |
8 | ||
| 90520-26057 |
KZN185,RZN185,VZN185 厚さ=2.38−2.40 |
8 | ||
| 37402C - BEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-35050 |
KZN185,RZN185..WIB..(EFI,TDE) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
8 | ||
| 37402-30011 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) |
8 | ||
| 37402-30021 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402C - BEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-35050 |
KZN185,RZN185..WIB..(EFI,TDE) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
8 | ||
| 37402-30011 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) |
8 | ||
| 37402-30021 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
(9511- )KDN185,KZN185,RZN185,VZN185

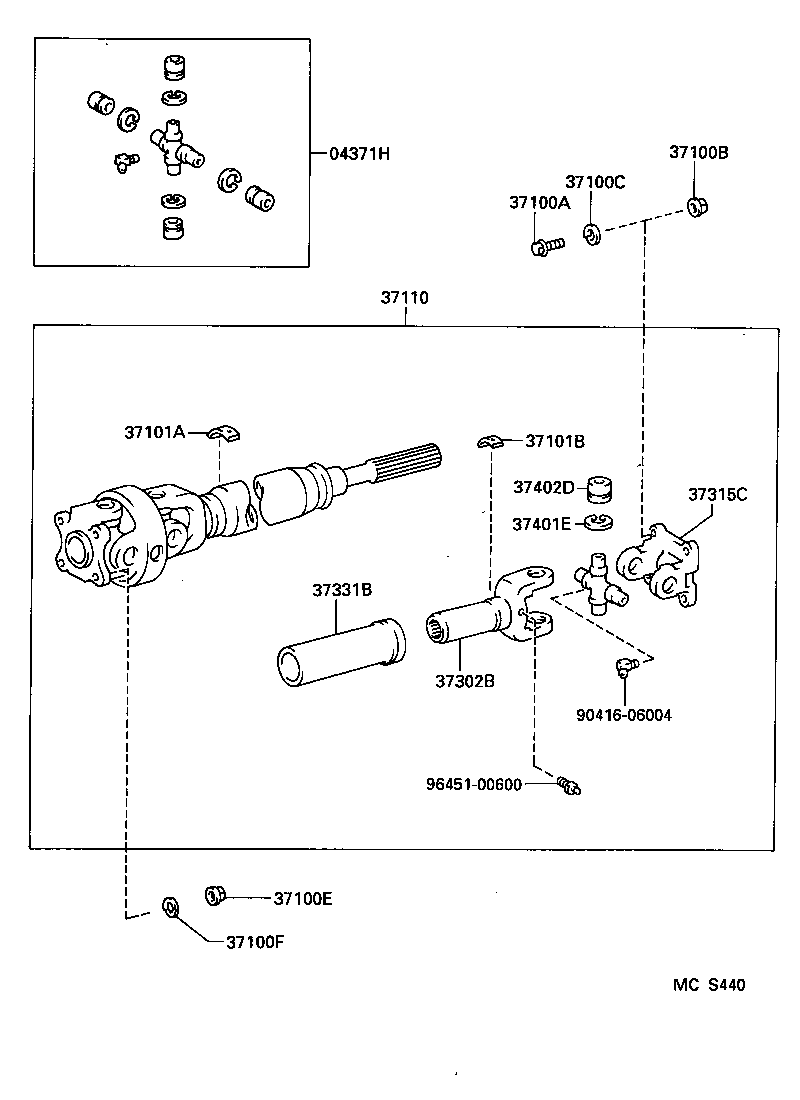

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35050 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 04371-35060 |
RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 04371-35050 |
KZN185,RZN185..5F..(SSR,SSRV,SSRX) |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
KDN185,KZN185,RZN185,VZN185 |
4 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
KDN185,KZN185,RZN185,VZN185 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
KDN185,KZN185,RZN18#,VZN18# 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
KZN185,RZN185,VZN185 30G,長さ=62.2 |
1 | ||
| 90937-01208 |
KZN185,RZN185,VZN185 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
KZN185,RZN185,VZN185 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01205 |
KZN185,RZN185,VZN185 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01203 |
KZN185,RZN185,VZN185 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01202 |
KZN185,RZN185,VZN185 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01211 |
KZN185,RZN185,VZN185 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01206 |
KZN185,RZN185,VZN185 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01147 |
KDN185,KZN185,RZN18#,VZN18# 2G,厚さ=2.0 |
1 | ||
| 90937-01204 |
KZN185,RZN185,VZN185 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01151 |
KDN185,KZN185,RZN18#,VZN18# 12G,長さ=24.9 |
1 | ||
| 90937-01136 |
KDN185,KZN185,RZN18#,VZN18# 20G,長さ=41.4 |
1 | ||
| 90937-01154 |
KDN185,KZN185,RZN18#,VZN18# 18G,長さ=37.3 |
1 | ||
| 90937-01155 |
KDN185,KZN185,RZN18#,VZN18# 22G,長さ=45.6 |
1 | ||
| 90937-01209 |
KZN185,RZN185,VZN185 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01148 |
KDN185,KZN185,RZN18#,VZN18# 4G,厚さ=2.0 |
1 | ||
| 90937-01150 |
KDN185,KZN185,RZN18#,VZN18# 8G,長さ=16.6 |
1 | ||
| 90937-01210 |
KZN185,RZN185,VZN185 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01156 |
KDN185,KZN185,RZN18#,VZN18# 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
KDN185,KZN185,RZN18#,VZN18# 26G,長さ=53.9 |
1 | ||
| 90937-01153 |
KDN185,KZN185,RZN18#,VZN18# 16G,長さ=33.2 |
1 | ||
| 90937-01152 |
KDN185,KZN185,RZN18#,VZN18# 14G,長さ=29.0 |
1 | ||
| 90937-01158 |
KDN185,KZN185,RZN18#,VZN18# 28G,長さ=58.1 |
1 | ||
| 90937-01132 |
KDN185,KZN185,RZN18#,VZN18# 10G,長さ=20.7 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01184 |
KDN185,KZN185,RZN185,VZN185 4G,厚さ=1.6 |
1 | ||
| 90937-01191 |
KDN185,KZN185,RZN185,VZN185 8G,厚さ=1.6 |
1 | ||
| 90937-01193 |
KDN185,KZN185,RZN185,VZN185 16G,厚さ=4.5 |
1 | ||
| 90937-01269 |
KDN185,KZN185,RZN185,VZN185 40G,長さ=25.6 |
1 | ||
| 90937-01199 |
KDN185,KZN185,RZN185,VZN185 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01200 |
KDN185,KZN185,RZN185,VZN185 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01194 |
KDN185,KZN185,RZN185,VZN185 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
KDN185,KZN185,RZN185,VZN185 12G,厚さ=4.5 |
1 | ||
| 90937-01273 |
KDN185,KZN185,RZN185,VZN185 56G,長さ=28.7 |
1 | ||
| 90937-01271 |
KDN185,KZN185,RZN185,VZN185 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
KDN185,KZN185,RZN185,VZN185 52G,長さ=26.7 |
1 | ||
| 90937-01268 |
KDN185,KZN185,RZN185,VZN185 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01274 |
KDN185,KZN185,RZN185,VZN185 60G,長さ=28.7 |
1 | ||
| 90937-01198 |
KDN185,KZN185,RZN185,VZN185 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01270 |
KDN185,KZN185,RZN185,VZN185 44G,長さ=22.6 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-3D270 |
RZN185..5F |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
KZN185,RZN18#,VZN18# |
1 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26051 |
KZN185,RZN18#,VZN18# 厚さ=2.46−2.48 |
4 | ||
| 90520-26054 |
KZN185,RZN18#,VZN18# 厚さ=2.32−2.34 |
4 | ||
| 90520-26053 |
KZN185,RZN18#,VZN18# 厚さ=2.30−2.32 |
4 | ||
| 90520-26055 |
KZN185,RZN18#,VZN18# 厚さ=2.34−2.36 |
4 | ||
| 90520-26052 |
KZN185,RZN18#,VZN18# 厚さ=2.28−2.30 |
4 | ||
| 90520-26057 |
KZN185,RZN18#,VZN18# 厚さ=2.38−2.40 |
4 | ||
| 90520-26050 |
KZN185,RZN18#,VZN18# 厚さ=2.44−2.46 |
4 | ||
| 90520-26059 |
KZN185,RZN18#,VZN18# 厚さ=2.42−2.44 |
4 | ||
| 90520-26058 |
KZN185,RZN18#,VZN18# 厚さ=2.40−2.42 |
4 | ||
| 90520-26056 |
KZN185,RZN18#,VZN18# 厚さ=2.36−2.38 |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30021 |
KZN185,RZN185..SSR,SSRV,SSRX ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
4 | ||
| 37402-30011 |
KZN185,RZN185..5F..(SSR,SSRV,SSRX) |
4 | ||
| 37402-30021 |
KZN185,RZN185..5F..(SSR,SSRV,SSRX) ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
4 | ||
| 37402-30011 |
KZN185,RZN185..SSR,SSRV,SSRX |
4 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
