RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

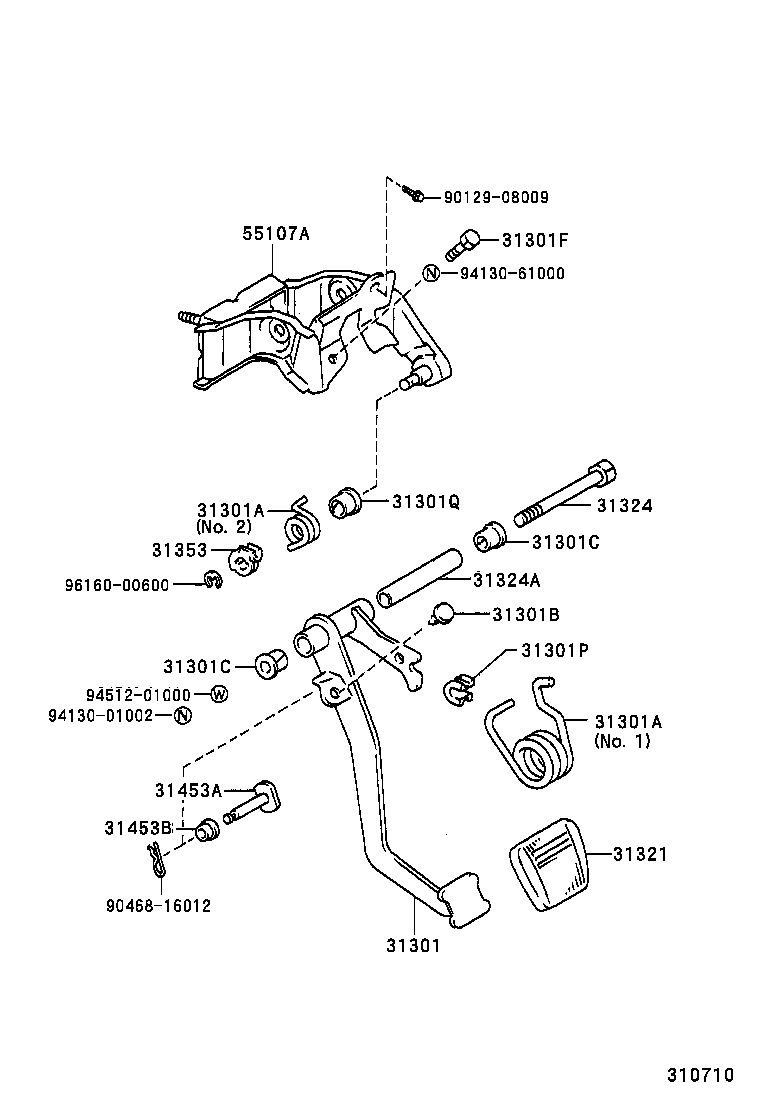

ILLUST NO. 1 OF 2(9511-0008)5F

Click highlighted areas on diagram

diagram 31301 31301A 31301A 31301B 31301C 31301C 31301F 31301P 31301Q 31321 31324 31324A 31353 31453A 31453B 55107A 9012908009 9046816012 9413001002 9413061000 9451201000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-35060

KZN185,RZN185..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03035

RZN185..5F

NO.1

 1
90949-03017

KZN185,RZN185..5F

NO.2

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03035

RZN185..5F

NO.1

 1
90949-03017

KZN185,RZN185..5F

NO.2

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KZN185,RZN185..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KZN185,RZN185..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KZN185,RZN185..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KZN185,RZN185..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

KZN185,RZN185..5F

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-13015

KZN185,RZN185..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

KZN185,RZN185..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10177

KZN185,RZN185..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082

KZN185,RZN185..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010

KZN185,RZN185..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

KZN185,RZN185..5F

長さ=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

KZN185,RZN185..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35070

KZN185,RZN185..5F

 1
Common parts
90129-08009
90468-16012
94130-01002
94130-61000
94512-01000
96160-00600

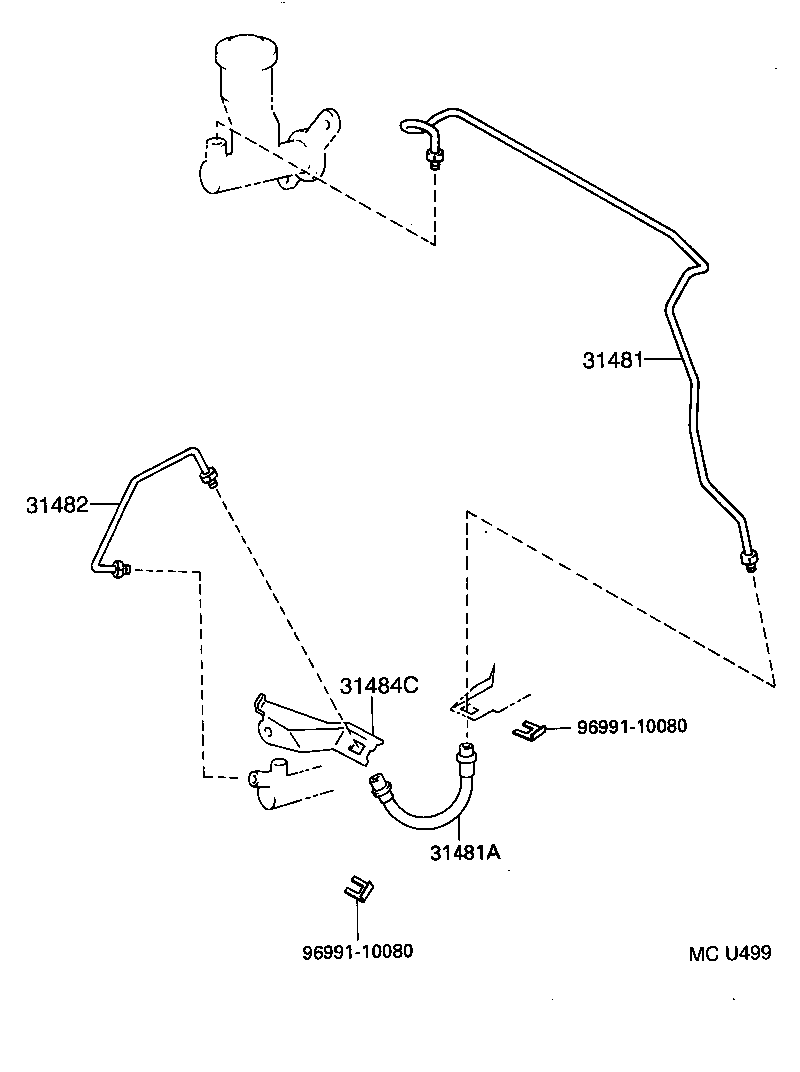

ILLUST NO. 2 OF 2(9511-9611)5F ; (9611-0008)RZN185..5F

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484C 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35430

KZN185,RZN185..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01091

KZN185,RZN185..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35390

RZN185..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35280

RZN185..5F

 1
Common parts
96991-10080
