RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)3RZFE

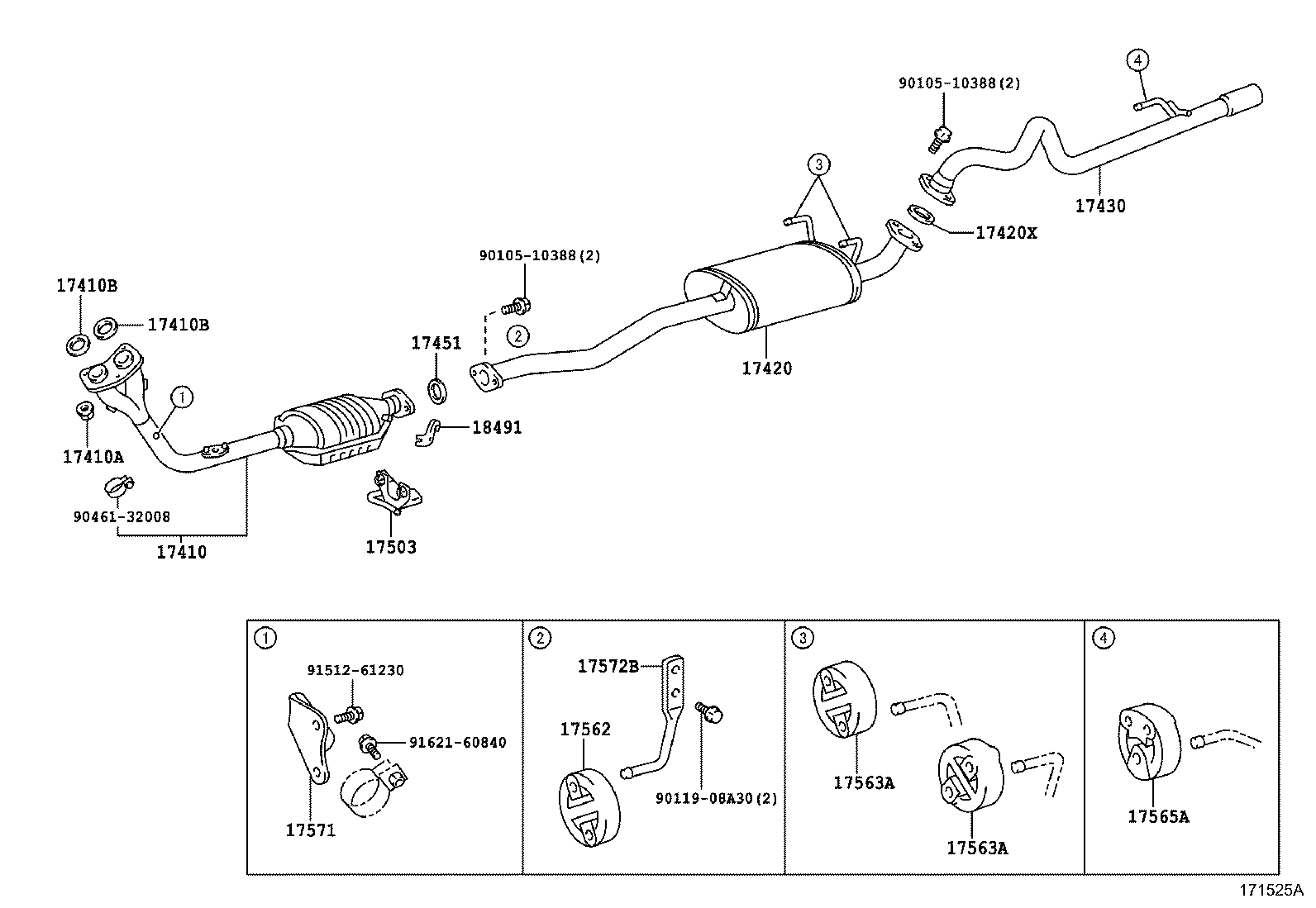

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17420X 17430 17451 17503 17562 17563A 17563A 17565A 17571 17572B 18491 9010510388 9010510388 9011908A30 9046132008 9151261230 9162160840
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-75111

3RZFE..RZN185

 1
17401-75110

3RZFE..RZN185

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1K#,3RZFE..KDN185,KZN185,RZN18#

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFE..RZN18#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

3RZFE..RZN18#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-75040

3RZFE..RZN185

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06057

3RZFE..RZN18#

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-75190

3RZFE..RZN185

 1
17451 - GASKET, EXHAUST PIPE
90917-06057

3RZFE..RZN18#

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-62050

3RZFE..RZN18#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74290

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46010

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46010

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3RZFE,5VZFE..RZN185,VZN185

 1
17566-35030

3RZFE..RZN18#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-75080

3RZFE..RZN18#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-67030

1KZTE,3RZFE..KZN185,RZN185

 1
17572-67020

1KZTE,3RZFE..KZN185,RZN185

 1
17572-67020

1KZTE,3RZFE..KZN185,RZN185

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-74020

3RZFE,5VZFE..RZN185,VZN185

 1
18491-28010

3RZFE,5VZFE..RZN185,VZN185

 1
Common parts
90105-10388
90119-08A30
90461-32008
91512-61230
91621-60840
