RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)3RZFE

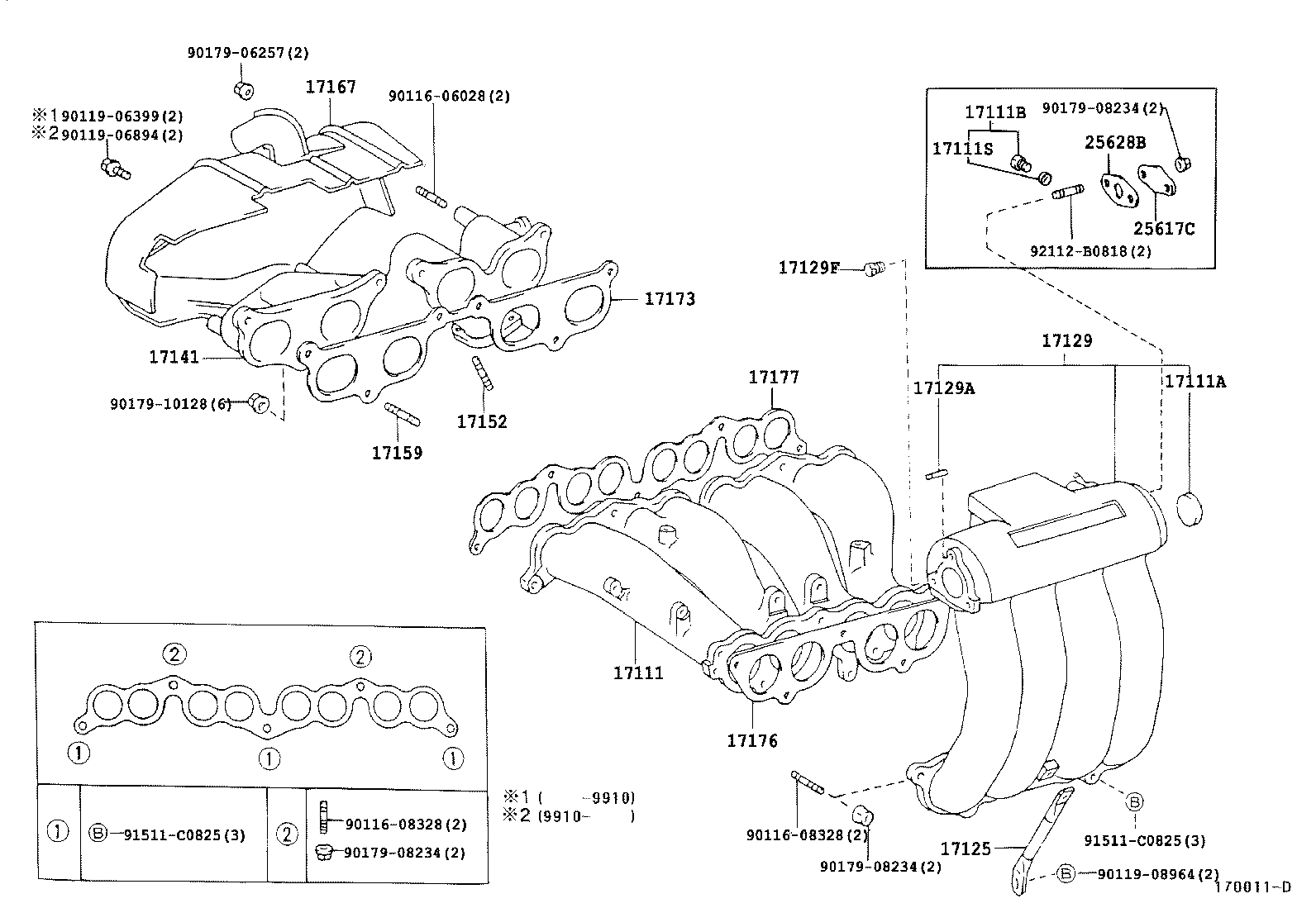

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17111S 17125 17129 17129A 17129F 17141 17152 17159 17167 17173 17176 17177 25617C 25628B 9011606028 9011608328 9011608328 9011906399 9011906894 9011908964 9017906257 9017908234 9017908234 9017908234 9017910128 91511C0825 91511C0825 92112B0818
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-75030

3RZFE..RZN185

 1
17111A - PLUG, NO.1
96411-43500

3RZFE..RZN18#

 2
17111B - PLUG, NO.2
90341-10009

3RZFE..RZN18#

 1
17111S - GASKET(FOR MANIFOLD PLUG)
90430-09005

3RZFE..RZN18#

 1
17125 - STAY, SURGE TANK, NO.1
17125-75030

3RZFE..RZN18#

 1
17129 - TANK, INTAKE AIR SURGE
17109-75012

3RZFE..RZN185

 1
17129A - UNION, NO.1
90406-06001

3RZFE..RZN18#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51006

3RZFE..RZN185

 1
17141 - MANIFOLD, EXHAUST
17141-75040

3RZFE..RZN18#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

3RZFE..RZN18#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

3RZFE..RZN18#

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75011

3RZFE..RZN18#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

3RZFE..RZN18#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-75010

3RZFE..RZN18#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75020

3RZFE..RZN18#

 1
25617C - PLATE, EGR HOLE COVER
25617-74020

3RZFE..RZN18#

 1
25628B - GASKET, EGR INLET
25628-75010

3RZFE..RZN18#

 1
Common parts
90116-06028
90116-08328
90119-06399
90119-06894
90119-08964
90179-06257
90179-08234
90179-10128
91511-C0825
92112-B0818
