RZN180W-GAPXK (1998)

Toyota Hilux Surf

Production Jul 1998 - Nov 2002
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

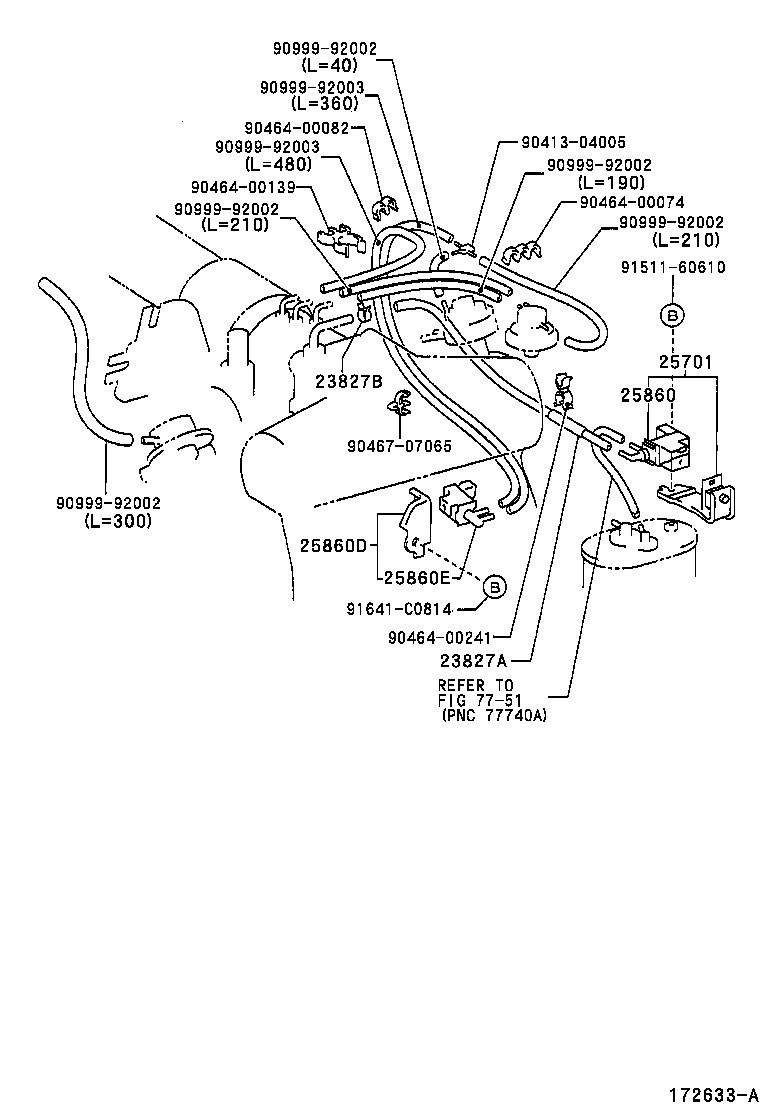

(0008-0112)3RZFE

Click highlighted areas on diagram

diagram 23827A 23827B 25701 25860 25860D 25860E 7751 9041304005 9046400074 9046400082 9046400139 9046400241 9046707065 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9151160610 91641C0814
Part # Description Qty Price
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75050

3RZFE..RZN18#

 1
23827-75260

3RZFE..RZN18#

 1
23827-75200

3RZFE..RZN18#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

3RZFE..RZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75230

3RZFE..RZN18#

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060

3RZFE..RZN18#

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12065

3RZFE..RZN18#

 1
Common parts
90413-04005
90464-00074
90464-00082
90464-00139
90464-00241
90467-07065
90999-92002
90999-92003
91511-60610
91641-C0814
Linked diagrams
7751

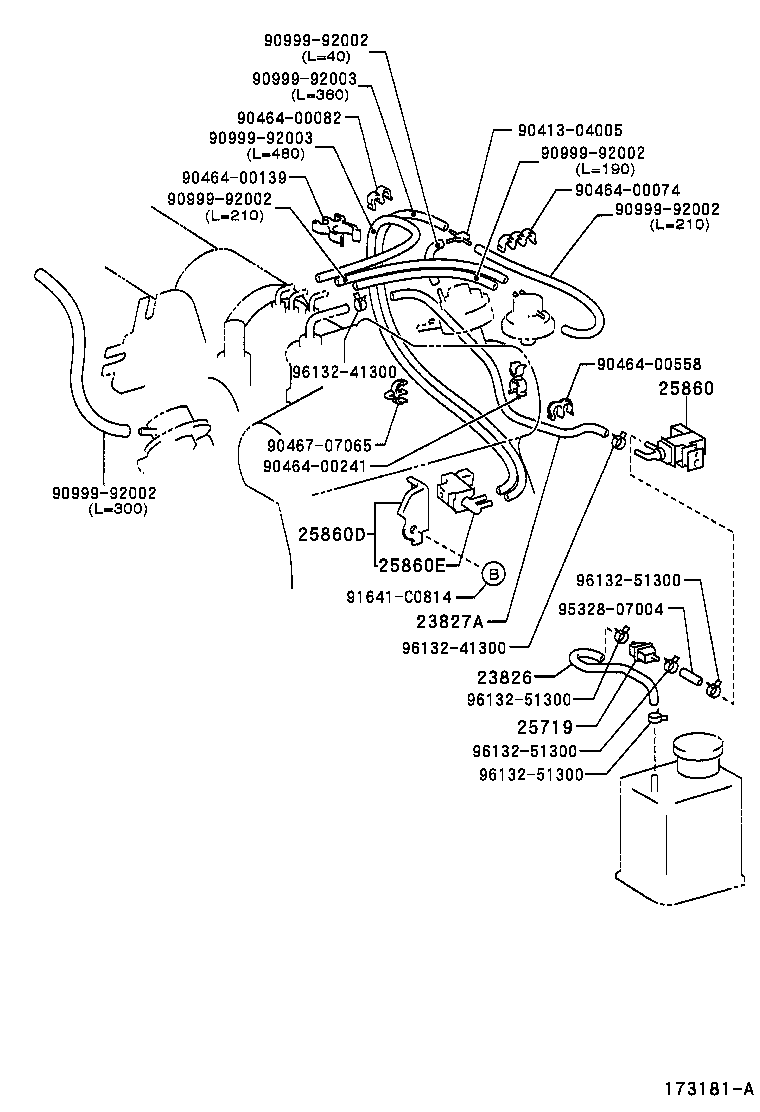

(0112- )3RZFE

Click highlighted areas on diagram

diagram 23826 23827A 25719 25860 25860D 25860E 9041304005 9046400074 9046400082 9046400139 9046400241 9046400558 9046707065 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 91641C0814 9532807004 9613241300 9613241300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-62060

3RZFE..RZN18#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75050

3RZFE..RZN18#

 1
23827-75260

3RZFE..RZN18#

 1
23827-75200

3RZFE..RZN18#

 1
25719 - TANK, VACUUM SURGE
25719-50030

3RZFE..RZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75230

3RZFE..RZN18#

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060

3RZFE..RZN18#

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12065

3RZFE..RZN18#

 1
Common parts
90413-04005
90464-00074
90464-00082
90464-00139
90464-00241
90464-00558
90467-07065
90999-92002
90999-92003
91641-C0814
95328-07004
96132-41300
96132-51300

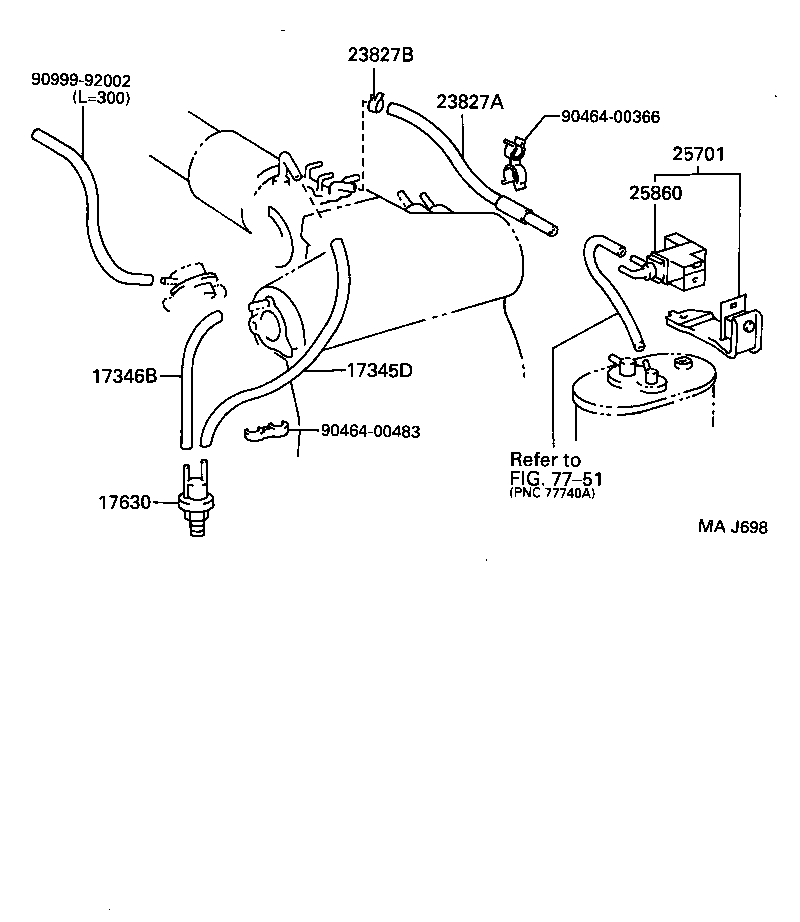

(9511-0008)3RZFE

Click highlighted areas on diagram

diagram 17345D 17346B 17630 23827A 23827B 25701 25860 7751 9046400366 9046400483 9099992002
Part # Description Qty Price
17345D - HOSE, AIR, NO.5
17345-75010

3RZFE..RZN18#

 1
17346B - HOSE, AIR, NO.6
17346-75010

3RZFE..RZN18#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75050

3RZFE..RZN18#

 1
23827-75260

3RZFE..RZN18#

 1
23827-75200

3RZFE..RZN18#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

3RZFE..RZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75230

3RZFE..RZN18#

 1
Common parts
90464-00366
90464-00483
90999-92002
Linked diagrams
7751
