RZN180W-GAPXK (1998)
Toyota Hilux Surf

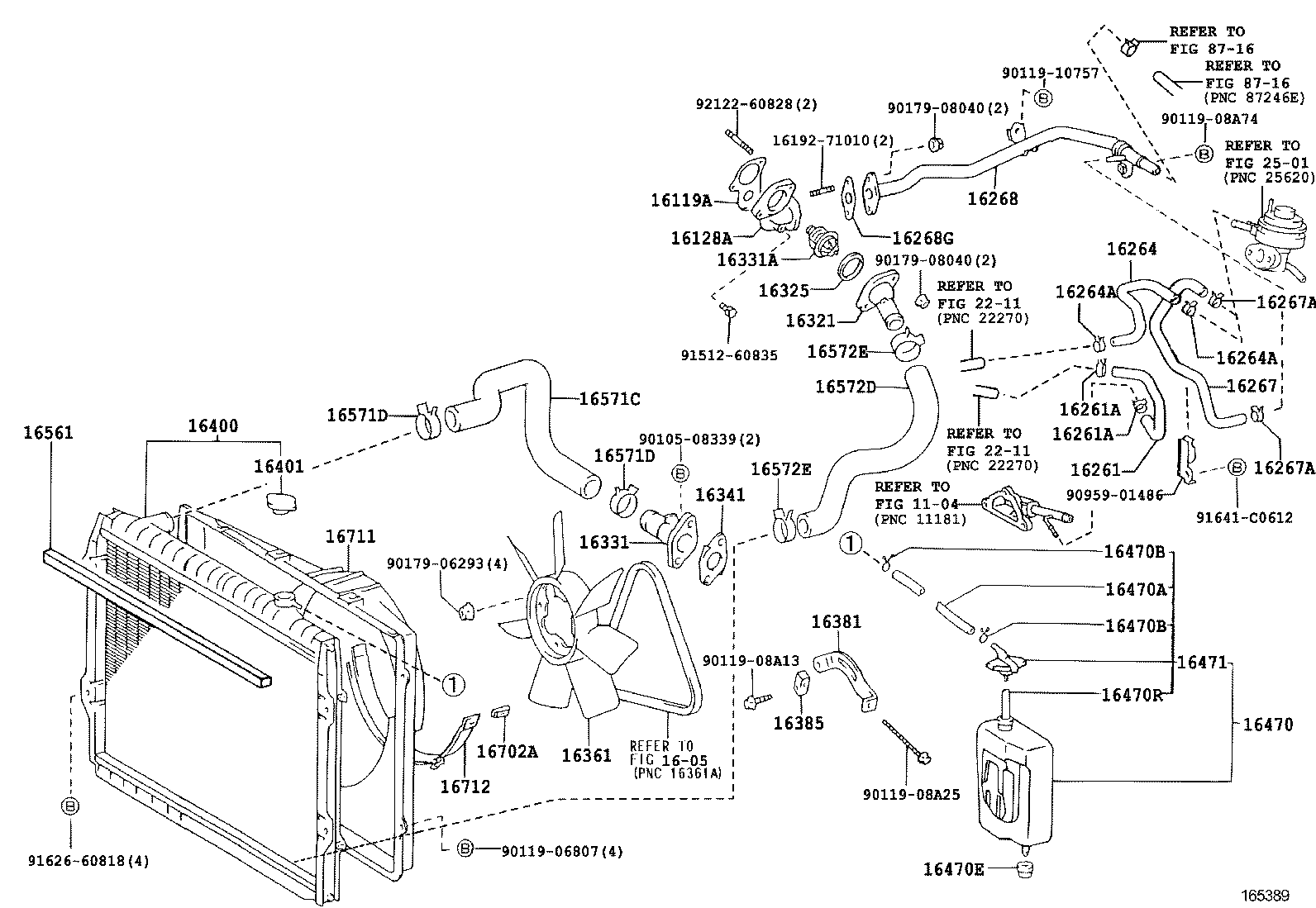

ILLUST NO. 1 OF 2(9511-0008)3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
3RZFE..RZN18# |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZFE..RZN18# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75040 |
3RZFE..RZN18# |
1 | ||
| 16261-75100 |
3RZFE..RZN18# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-75010 |
3RZFE..RZN18# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75080 |
3RZFE..RZN18# |
1 | ||
| 16268-75020 |
3RZFE..RZN18# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
3RZFE..RZN18# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZFE..RZN18# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZFE..RZN18# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZFE..RZN18# |
1 | ||
| 16361 - FAN | ||||
| 16361-75020 |
3RZFE..RZN18# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75050 |
3RZFE..RZN18# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZFE..RZN18# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75190 |
3RZFE..RZN18#..4FC |
1 | ||
| 16400-75191 |
3RZFE..RZN18# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3RZFE..RZN18# |
1 | ||
| 16401-62100 |
3RZFE..RZN18# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
3RZFE..RZN18# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZFE..RZN18# *H,L=390 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZFE..RZN18# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZFE..RZN18# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
3RZFE..RZN18# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZFE..RZN18# *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
3RZFE..RZN18# |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-75010 |
3RZFE..RZN18# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C021 |
3RZFE..RZN18# |
1 | ||
| 16571-75180 |
3RZFE..RZN18# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75090 |
3RZFE..RZN18# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
3RZFE..RZN18# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C031 |
3RZFE..RZN18# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0C011 |
3RZFE..RZN18# |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90105-08339 | ||||
| 90119-06807 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A74 | ||||
| 90119-10757 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90959-01486 | ||||
| 91512-60835 | ||||
| 91626-60818 | ||||
| 91641-C0612 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1605 | ||||
| 2211 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0008- )3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
3RZFE..RZN18# |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZFE..RZN18# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75040 |
3RZFE..RZN18# |
1 | ||
| 16261-75100 |
3RZFE..RZN18# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75070 |
3RZFE..RZN18# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-75010 |
3RZFE..RZN18# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3RZFE..RZN18# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75080 |
3RZFE..RZN18# |
1 | ||
| 16268-75020 |
3RZFE..RZN18# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
3RZFE..RZN18# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZFE..RZN18# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZFE..RZN18# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZFE..RZN18# |
1 | ||
| 16361 - FAN | ||||
| 16361-75020 |
3RZFE..RZN18# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75050 |
3RZFE..RZN18# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZFE..RZN18# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75190 |
3RZFE..RZN18#..4FC |
1 | ||
| 16400-75191 |
3RZFE..RZN18# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3RZFE..RZN18# |
1 | ||
| 16401-62100 |
3RZFE..RZN18# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
3RZFE..RZN18# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZFE..RZN18# *H,L=390 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZFE..RZN18# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3RZFE..RZN18# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
3RZFE..RZN18# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3RZFE..RZN18# *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
3RZFE..RZN18# |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-75010 |
3RZFE..RZN18# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C021 |
3RZFE..RZN18# |
1 | ||
| 16571-75180 |
3RZFE..RZN18# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75090 |
3RZFE..RZN18# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
3RZFE..RZN18# |
2 | ||
| 90466-37001 |
3RZFE..RZN18# |
2 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
3RZFE..RZN18# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C031 |
3RZFE..RZN18# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0C011 |
3RZFE..RZN18# |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90105-08339 | ||||
| 90119-06807 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A74 | ||||
| 90119-10757 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90959-01486 | ||||
| 91512-60835 | ||||
| 91626-60818 | ||||
| 91641-C0612 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1605 | ||||
| 2211 | ||||
| 2501 | ||||
| 8716 | ||||
