RZN180W-GAPVK (2000)

Toyota Hilux Surf

Production Aug 2000 - Nov 2002
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

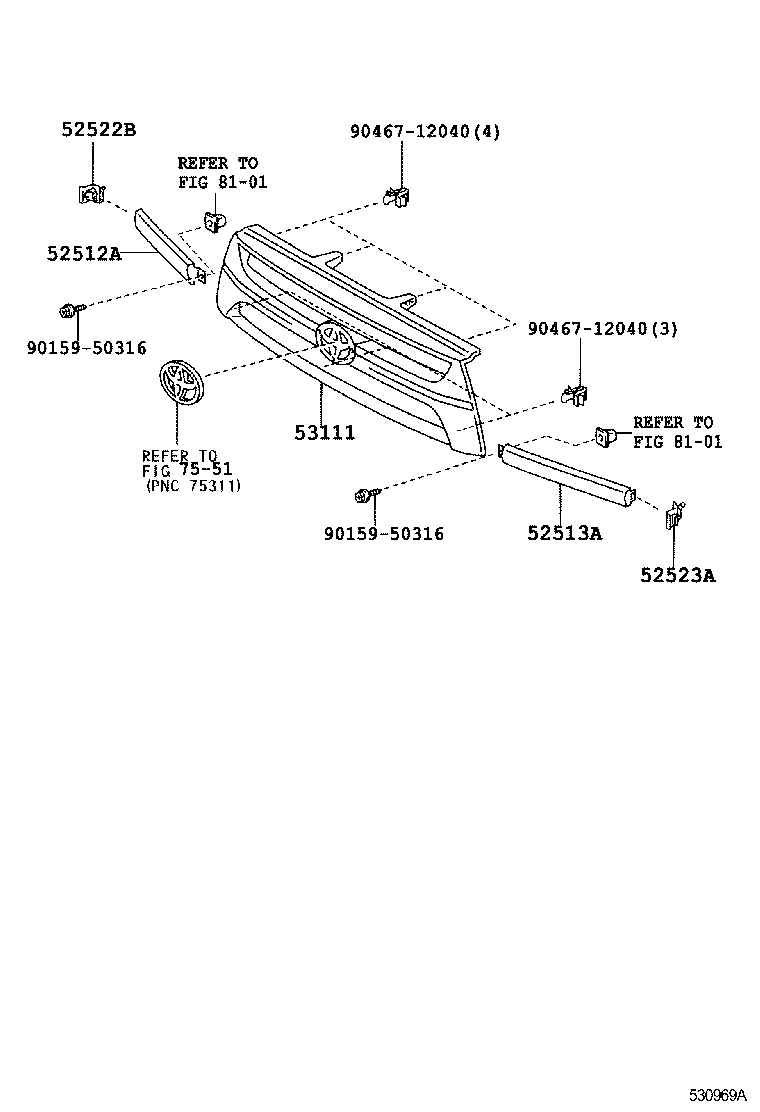

Click highlighted areas on diagram

diagram 52512A 52513A 52522B 52523A 53111 7551 8101 8101 9015950316 9015950316 9046712040 9046712040
Part # Description Qty Price
52512A - FILLER, FRONT BUMPER, RH
52512-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52513A - FILLER, FRONT BUMPER, LH
52513-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52522B - RETAINER, FRONT BUMPER FILLER, NO.2
52522-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52523A - RETAINER, FRONT BUMPER FILLER, NO.3
52523-35030

KDN185,KZN185,RZN18#,VZN18#

 1
53111 - GRILLE, RADIATOR
53111-35400

KDN185,RZN18#,VZN185..WIB

ﾒｯｷ

 1
Common parts
90159-50316
90467-12040
Linked diagrams
7551
8101
