KZN185W-GAPXT (1995)
Toyota Hilux Surf

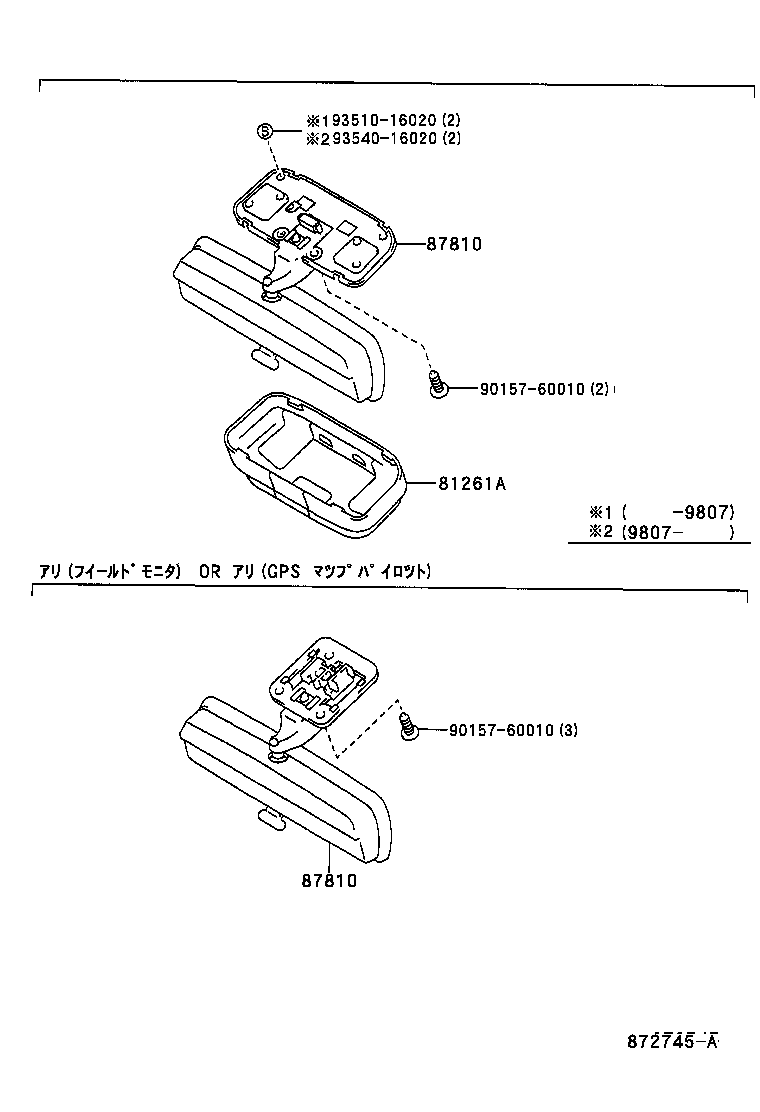

ILLUST NO. 1 OF 4(9511-0008)
ｲﾝﾅ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81261A - LENS AND COVER, MAP LAMP | ||||
| 87818-35010B1 |
KZN185,RZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87818-35010B1 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 87818-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),OAK,TRIM4# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-35020E0 |
KZN185,RZN185,VZN185..SSRV,SSRX OAK,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-89141B1 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),MOON MIST,TRIM1# |
1 | ||
| 87810-89141E1 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) OR ｱﾘ(GPS ﾏﾂﾌﾟ ﾊﾟｲﾛﾂﾄ),OAK,TRIM4# |
1 | ||
| 87810-35020B1 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 87810-35020E0 |
KZN185,RZN185,VZN185..SSRV,SSRX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90157-60010 | ||||
| 93510-16020 | ||||
| 93540-16020 | ||||

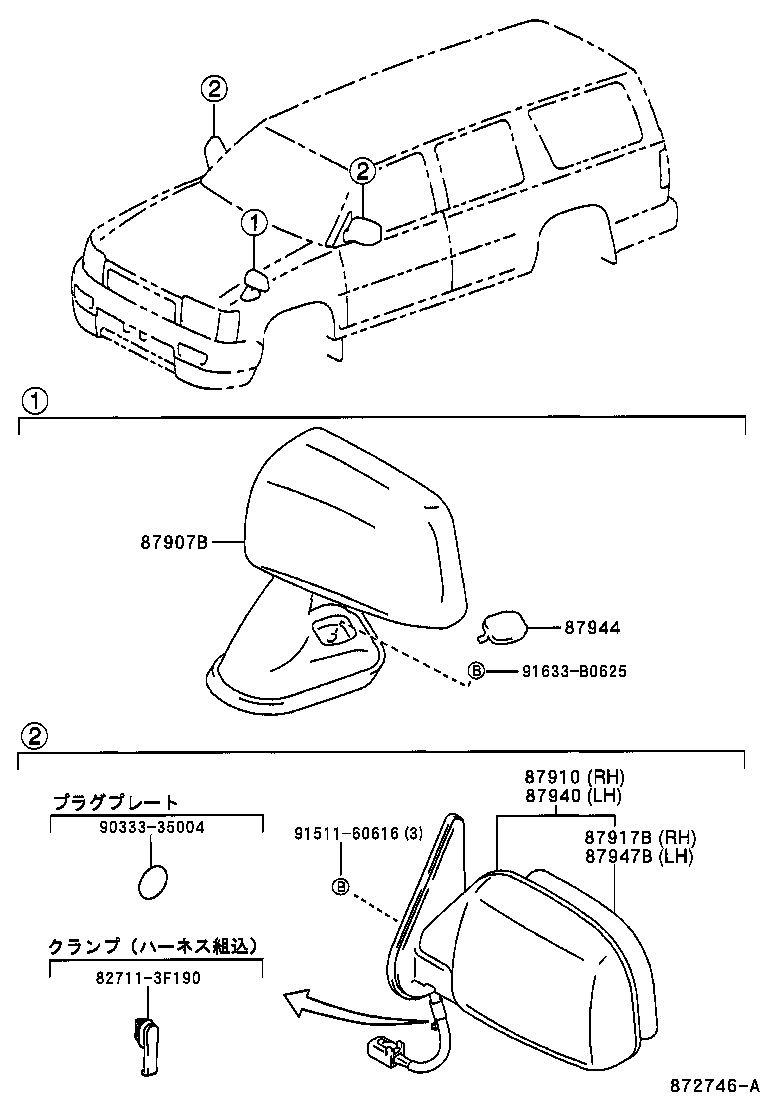

ILLUST NO. 3 OF 4(9511- )
ｱｳﾀ ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 87907-35030D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87907-35030C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 87907-35030K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE M.M.,926 |
1 | ||
| 87907-35060B0 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87907-35060J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87907-35030H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87907-35030J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87907-35030B1 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME,1A5 |
1 | ||
| 87907-35060D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87907-35060J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87907-35030J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87907-35060K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE ME.,926 |
1 | ||
| 87907-35060H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-35350D0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),RED MM,3K4 |
1 | ||
| 87910-35350C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK.M,204 |
1 | ||
| 87910-35340D0 |
KZN185,RZN185..SSRV,SSRX RED MM,3K4 |
1 | ||
| 87910-35330J1 |
KZN185,RZN185..SSR DK.BLUE M.M,8L7 |
1 | ||
| 87910-35340B0 |
KZN185,RZN185..SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 87910-35340J1 |
KZN185,RZN185..SSRV,SSRX DK.BLUE M.M,8L7 |
1 | ||
| 87910-35330K0 |
KZN185,RZN185..SSR GRAYISH PURPLE M.M,926 |
1 | ||
| 87910-35330D0 |
KZN185,RZN185..SSR RED MM,3K4 |
1 | ||
| 87910-35340K0 |
KZN185,RZN185..SSRV,SSRX GRAYISH PURPLE M.M,926 |
1 | ||
| 87910-35330J0 |
KZN185,RZN185..SSR LT.BLUE M.M,8L6 |
1 | ||
| 87910-35330H0 |
KZN185,RZN185..SSR DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35350D0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,RED MM,3K4 |
1 | ||
| 87910-35340H0 |
KZN185,RZN185..SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35340J0 |
KZN185,RZN185..SSRV,SSRX LT.BLUE M.M,8L6 |
1 | ||
| 87910-35330B0 |
KZN185,RZN185..SSR WARM GRAY PEARL ME,1A5 |
1 | ||
| 87910-35350B0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,WARM GRAY PEARL ME,1A5 |
1 | ||
| 87910-35750D0 |
KZN185,RZN185..SSR RED MM,3K4 |
1 | ||
| 87910-35350H0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35350J0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,LT.BLUE M.M,8L6 |
1 | ||
| 87910-35750H0 |
KZN185,RZN185..SSR DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35750J1 |
KZN185,RZN185..SSR DK.BLUE M.M.,8L7 |
1 | ||
| 87910-35750K0 |
KZN185,RZN185..SSR GRAYISH PURPLE ME.,926 |
1 | ||
| 87910-35750B0 |
KZN185,RZN185..SSR WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87910-35760B0 |
KZN185,RZN185,VZN185..SSRV,SSRX WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87910-35760J1 |
KZN185,RZN185,VZN185..SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 87910-35770B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87910-35750J0 |
KZN185,RZN185..SSR LT.BLUE M.M.,8L6 |
1 | ||
| 87910-35350K0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,GRAYISH PURLE M.M,926 |
1 | ||
| 87910-35760J0 |
KZN185,RZN185,VZN185..SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 87910-35770J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,LT.BLUE M.M.,8L6 |
1 | ||
| 87910-35760D0 |
KZN185,RZN185,VZN185..SSRV,SSRX RED MM,3K4 |
1 | ||
| 87910-35350J1 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.BLUE M.M,8L7 |
1 | ||
| 87910-35760K0 |
KZN185,RZN185,VZN185..SSRV,SSRX GRAYISH PURPLE ME.,926 |
1 | ||
| 87910-35770H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35770J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,8L7 |
1 | ||
| 87910-35760H0 |
KZN185,RZN185,VZN185..SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87910-35770D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,3K4 |
1 | ||
| 87910-35770K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAYISH PURPLE ME.,926 |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-35270 |
KZN185,RZN185,VZN185 |
1 | ||
| 87931-35540 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-35320D0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),RED MM,3K4 |
1 | ||
| 87940-35300D0 |
KZN185,RZN185..SSR RED MM,3K4 |
1 | ||
| 87940-35300B0 |
KZN185,RZN185..SSR WARM GRAY PEARL ME,1A5 |
1 | ||
| 87940-35310H0 |
KZN185,RZN185..SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35300K0 |
KZN185,RZN185..SSR GRAYISH PURPLE M.M,926 |
1 | ||
| 87940-35300J0 |
KZN185,RZN185..SSR LT.BLUE M.M,8L6 |
1 | ||
| 87940-35310B0 |
KZN185,RZN185..SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 87940-35300J1 |
KZN185,RZN185..SSR DK.BLUE M.M,8L7 |
1 | ||
| 87940-35320C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK.M,204 |
1 | ||
| 87940-35310J1 |
KZN185,RZN185..SSRV,SSRX DK.BLUE M.M,8L7 |
1 | ||
| 87940-35310K0 |
KZN185,RZN185..SSRV,SSRX GRAYISH PURPLE M.M,926 |
1 | ||
| 87940-35300H0 |
KZN185,RZN185..SSR DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35320D0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,RED MM,3K4 |
1 | ||
| 87940-35320B0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,WARM GRAY PEARL ME,1A5 |
1 | ||
| 87940-35310D0 |
KZN185,RZN185..SSRV,SSRX RED MM,3K4 |
1 | ||
| 87940-35700J1 |
KZN185,RZN185..SSR DK.BLUE M.M.,8L7 |
1 | ||
| 87940-35310J0 |
KZN185,RZN185..SSRV,SSRX LT.BLUE M.M,8L6 |
1 | ||
| 87940-35320J1 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.BLUE M.M,8L7 |
1 | ||
| 87940-35320J0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,LT.BLUE M.M,8L6 |
1 | ||
| 87940-35700K0 |
KZN185,RZN185..SSR GRAYISH PURPLE ME.,926 |
1 | ||
| 87940-35700D0 |
KZN185,RZN185..SSR RED MM,3K4 |
1 | ||
| 87940-35700B0 |
KZN185,RZN185..SSR WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87940-35320K0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,GRAYISH PURPLE M.M,926 |
1 | ||
| 87940-35710J1 |
KZN185,RZN185,VZN185..SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 87940-35710H0 |
KZN185,RZN185,VZN185..SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35710J0 |
KZN185,RZN185,VZN185..SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 87940-35700J0 |
KZN185,RZN185..SSR LT.BLUE M.M.,8L6 |
1 | ||
| 87940-35700H0 |
KZN185,RZN185..SSR DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35710D0 |
KZN185,RZN185,VZN185..SSRV,SSRX RED MM,3K4 |
1 | ||
| 87940-35720J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.BLUE M.M.,8L7 |
1 | ||
| 87940-35710K0 |
KZN185,RZN185,VZN185..SSRV,SSRX GRAYISH PURPLE ME.,926 |
1 | ||
| 87940-35720J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,LT.BLUE M.M.,8L6 |
1 | ||
| 87940-35320H0 |
KZN185,RZN185..SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ,DK.TEAL GREEN MC.,751 |
1 | ||
| 87940-35720D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,RED MM,3K4 |
1 | ||
| 87940-35720B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87940-35710B0 |
KZN185,RZN185,VZN185..SSRV,SSRX WARM GRAY PEARL ME.,1A5 |
1 | ||
| 87940-35720K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,GRAYISH PURPLE ME.,926 |
1 | ||
| 87940-35720H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-,DK.TEAL GREEN MC.,751 |
1 | ||
| 87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH | ||||
| 87944-35020C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 87944-35020B1 |
KZN185,RZN185,VZN185 WARM GRAY PEARL ME,1A5 |
1 | ||
| 87944-35020D0 |
KZN185,RZN185,VZN185 RED MM,3K4 |
1 | ||
| 87944-35020K0 |
KZN185,RZN185,VZN185 GRAYISH PURPLE M.M.,926 |
1 | ||
| 87944-35020J1 |
KZN185,RZN185,VZN185 DK.BLUE M.M.,8L7 |
1 | ||
| 87944-35020J0 |
KZN185,RZN185,VZN185 LT.BLUE M.M.,8L6 |
1 | ||
| 87944-35020H0 |
KZN185,RZN185,VZN185 DK.TEAL GREEN MC.,751 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87961-35510 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 87947-35260 |
KZN185,RZN185,VZN185 |
1 | ||
| Common parts | ||||
| 82711-3F190 | ||||
| 90333-35004 | ||||
| 91511-60616 | ||||
| 91633-B0625 | ||||

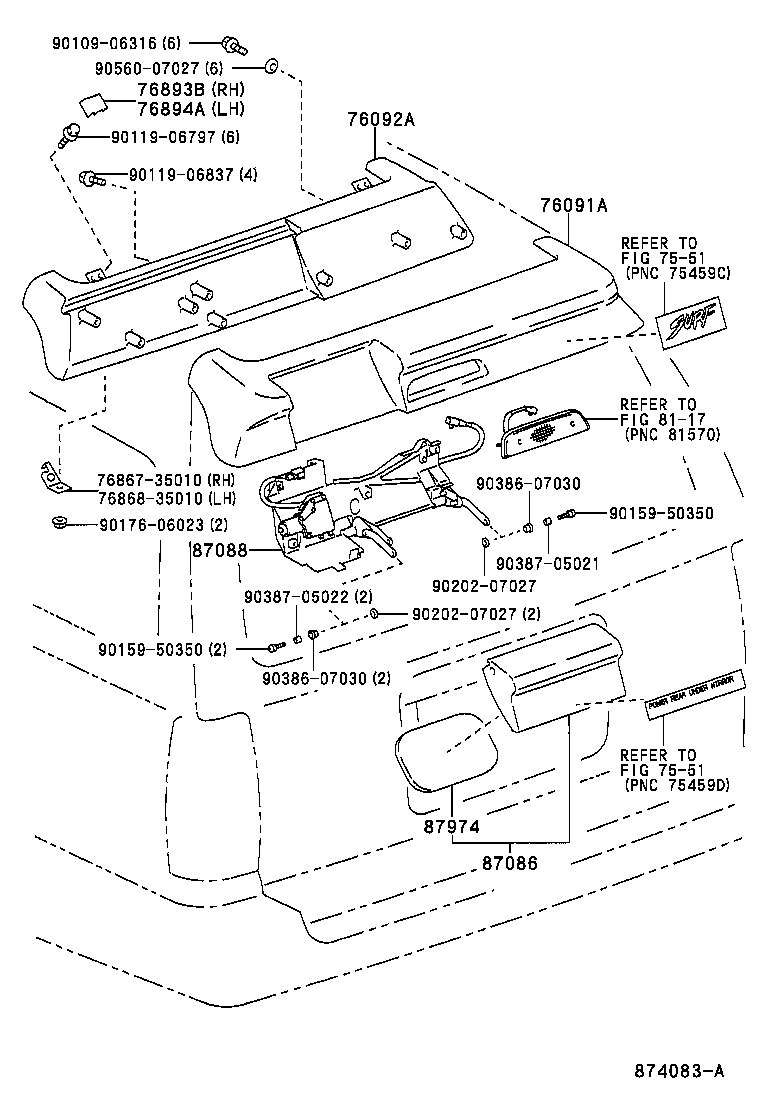

ILLUST NO. 4 OF 4(9511- )
ﾊﾟﾜ-ﾘﾔｱﾝﾀﾞ-ﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76091A - DEFLECTOR SUB-ASSY, RR UPR | ||||
| 76091-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76091-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76091-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76091-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 76091-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76091-35010C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 76091-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76092A - DEFLECTOR SUB-ASSY, RR LWR | ||||
| 76092-35011B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME.,1A5 |
1 | ||
| 76092-35011H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76092-35011J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76092-35011J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76092-35011K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE ME.,926 |
1 | ||
| 76092-35011D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76092-35011C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 76893B - COVER, REAR DEFLECTOR STAY, RH | ||||
| 76893-35010C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 76893-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76893-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76893-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 76893-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76893-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76893-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76894A - COVER, REAR DEFLECTOR STAY, LH | ||||
| 76894-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 76894-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 76894-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 76894-35010C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 76894-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 76894-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 76894-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 87086 - MIRROR SUB-ASSY, OUTER UNDER RR VIEW | ||||
| 87086-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX WARM GRAY PEARL ME,1A5 |
1 | ||
| 87086-35010C0 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),BLACK M.(204) |
1 | ||
| 87086-35010J1 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 87086-35010H0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX DK.TEAL GREEN MC.,751 |
1 | ||
| 87086-35010D0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX RED MM,3K4 |
1 | ||
| 87086-35010K0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX GRAYISH PURPLE M.M.,926 |
1 | ||
| 87086-35010J0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX LT.BLUE M.M.,8L6 |
1 | ||
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-35021 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 87088-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 87974 - MIRROR, OUTER UNDER RR VIEW | ||||
| 87974-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| Common parts | ||||
| 76867-35010 | ||||
| 76868-35010 | ||||
| 90109-06316 | ||||
| 90119-06797 | ||||
| 90119-06837 | ||||
| 90159-50350 | ||||
| 90176-06023 | ||||
| 90202-07027 | ||||
| 90386-07030 | ||||
| 90387-05021 | ||||
| 90387-05022 | ||||
| 90560-07027 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
