KZN185W-GAPXT (1995)
Toyota Hilux Surf

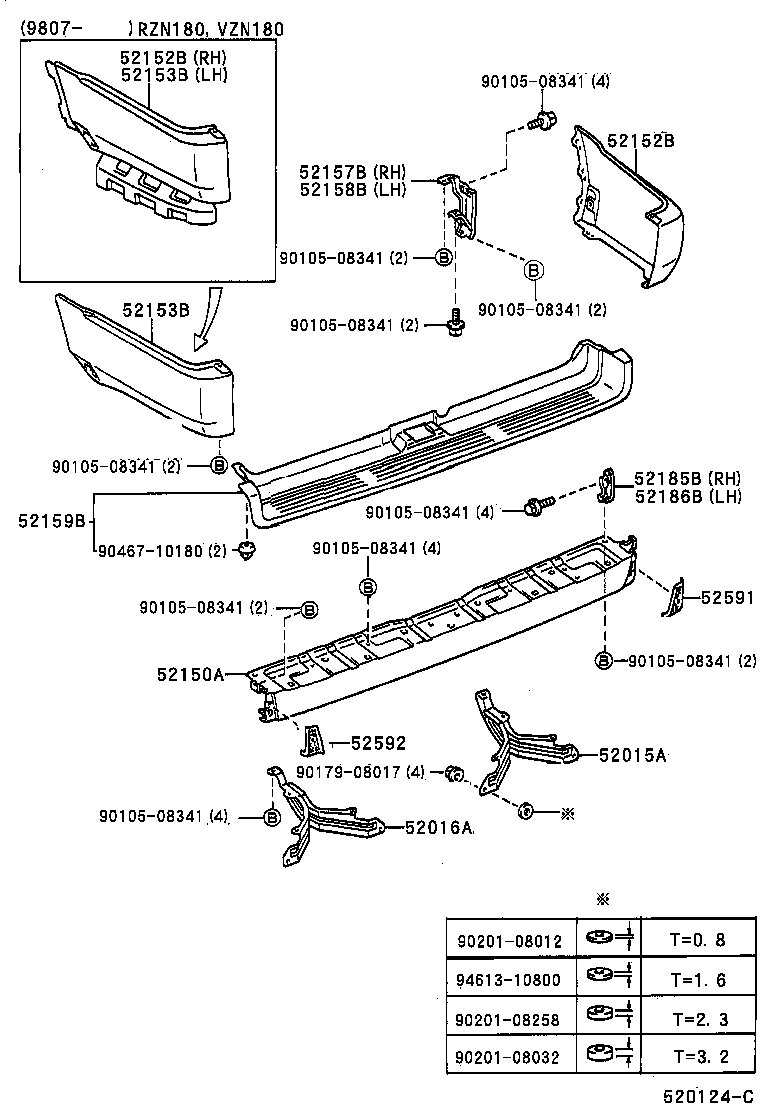

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 52150A - BUMPER ASSY, REAR | ||||
| 52105-35170D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52105-35170B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52105-35140 |
KZN185,RZN185,VZN185..WIB ｼﾙﾊﾞ- |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-35071 |
KZN185,RZN185,VZN185..WIB ｼﾙﾊﾞｰ ﾒﾀﾘﾂｸ ﾄｿｳ |
1 | ||
| 52106-35100D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52106-35101D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52106-35100B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52106-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52106-35101B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-35071 |
KZN185,RZN185,VZN185..WIB ｼﾙﾊﾞｰ ﾒﾀﾘﾂｸ ﾄｿｳ |
1 | ||
| 52106-35100D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52106-35101D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52106-35100B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52106-35070 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52106-35101B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-35091D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52107-35091B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52107-35090D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52107-35061 |
KZN185,RZN185,VZN185..WIB ｼﾙﾊﾞｰ ﾒﾀﾘﾂｸ ﾄｿｳ |
1 | ||
| 52107-35090B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52107-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-35091D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52107-35091B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52107-35090D0 |
KZN185,RZN185,VZN185..WIB RED MM,3K4 |
1 | ||
| 52107-35061 |
KZN185,RZN185,VZN185..WIB ｼﾙﾊﾞｰ ﾒﾀﾘﾂｸ ﾄｿｳ |
1 | ||
| 52107-35090B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52107-35060 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52157B - STAY, REAR BUMPER SIDE, NO.2 RH | ||||
| 52093-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52158B - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52094-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-35011 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ) |
1 | ||
| 52159-35021 |
RZN185..SSRV,SSRX;KZN185,VZN185..WIB |
1 | ||
| 52159-35020 |
RZN185..SSRV,SSRX;KZN185,VZN185..WIB |
1 | ||
| 52159-35010 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ) |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90179-08017 | ||||
| 90201-08012 | ||||
| 90201-08032 | ||||
| 90201-08258 | ||||
| 90467-10180 | ||||
| 94613-10800 | ||||
