KZN185W-GAPVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)

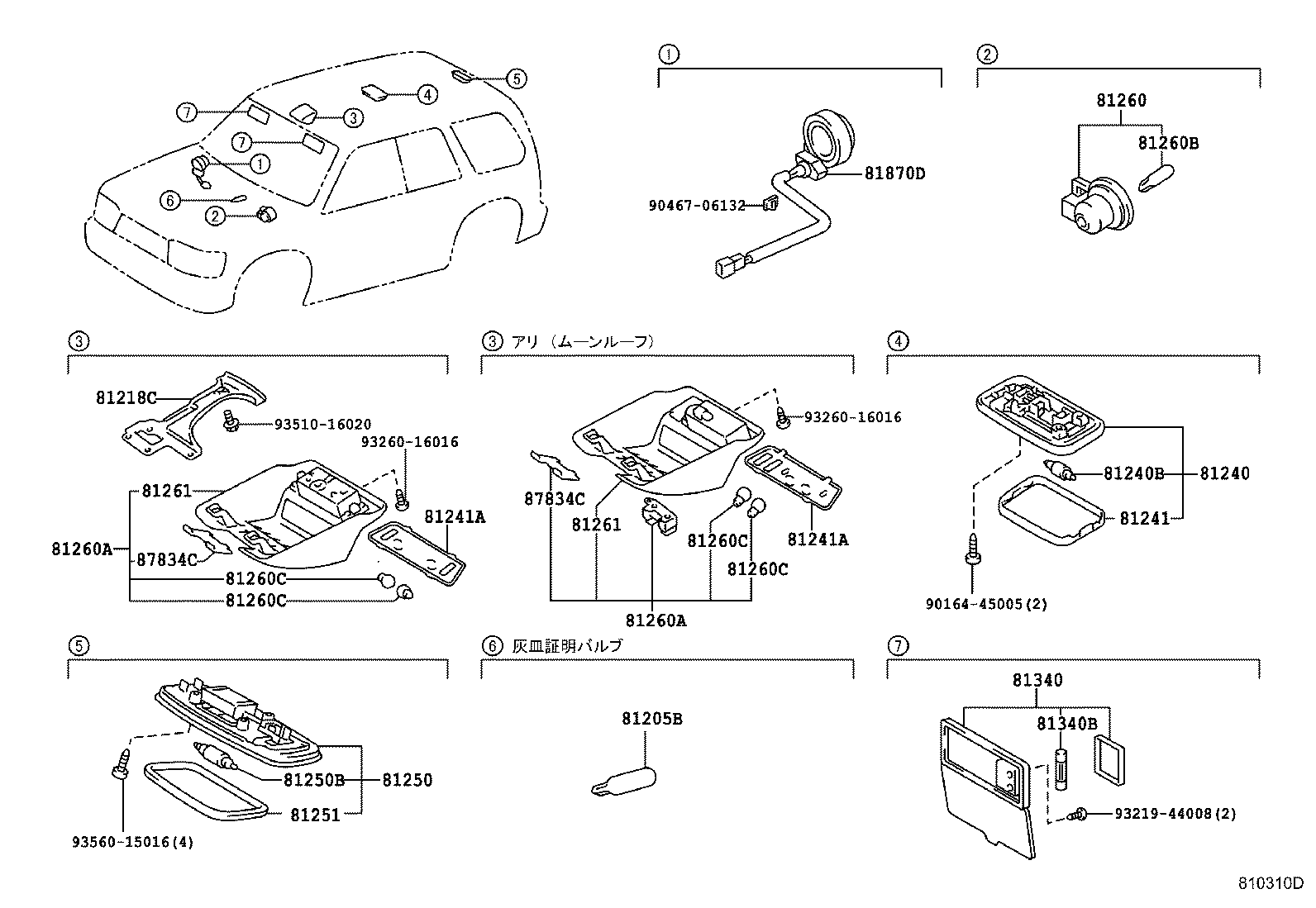

Click highlighted areas on diagram

diagram 81205B 81218C 81240 81240B 81241 81241A 81241A 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81261 81261 81340 81340B 81870D 87834C 87834C 9016445005 9046706132 9321944008 9326016016 9326016016 9351016020 9356015016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11041

KDN185,KZN185,RZN18#,VZN18#

14V 1.4W

 1
81218C - BRACKET, MAP LAMP
81218-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12060E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
81240-12060B2

KZN185,RZN185,VZN185

MOON MIST,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

KDN185,KZN185,RZN18#,VZN18#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

KDN185,KZN185,RZN18#,VZN18#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
81241-35020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81241A - LENS, ROOM LAMP, NO.2
81241-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
81241-35020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-35010B0

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
81240-32031B1

KZN185,RZN185,VZN185

MD.MOON MIST,TRIM1#

 1
81240-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 1
81250B - BULB, ROOM LAMP, NO.2
90981-14002

KDN185,KZN185,RZN18#,VZN18#

12V 5W

 1
90981-14004

KZN185,RZN185,VZN185

12V 8W

 1
81251 - LENS, ROOM LAMP, NO.2
81241-32031

KZN185..5F..TDE;RZN185..SSR,SSRV,SSRX;KZN185..NOB..SSRX..TDE;KZN185,VZN185..WIB..4FC

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33010

KDN185,KZN185,RZN18#,VZN18#

 1
81260A - LAMP ASSY, MAP
81260-35020B0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
81260-35020E0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.OAK,TRIM4#

 1
81260-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
81260-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
81260A - LAMP ASSY, MAP
81260-35020B0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
81260-35020E0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.OAK,TRIM4#

 1
81260-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
81260-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

KDN185,KZN185,RZN18#,VZN18#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
81261-35020B0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
81261-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
81261-35020E0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.OAK,TRIM4#

 1
81261 - LENS AND COVER, MAP LAMP
81261-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
81261-35020B0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
81261-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
81261-35020E0

RZN185..SSRV,SSRX;KZN185..SSRX..TDE;KZN185,VZN185..SSRG,SSRV

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.OAK,TRIM4#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-35020

KDN185,KZN185,RZN18#,VZN18#

 1
87834C - COVER, MAP LAMP
87834-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
87834-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
87834C - COVER, MAP LAMP
87834-35010B0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MOON MIST,TRIM1#

 1
87834-35010E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

MD.OAK,TRIM4#

 1
Common parts
90164-45005
90467-06132
93219-44008
93260-16016
93510-16020
93560-15016
