KZN185W-GAPVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

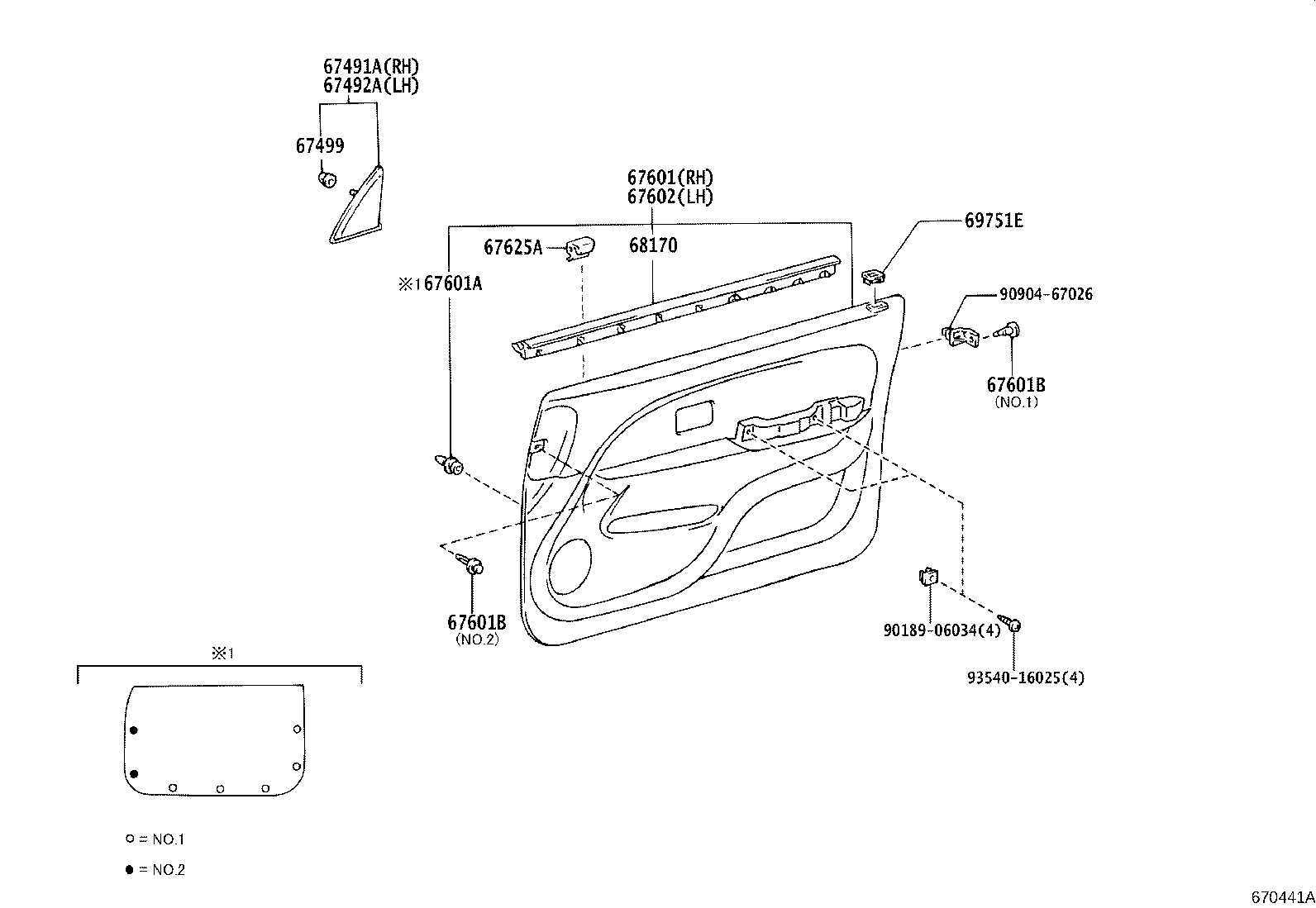

ILLUST NO. 1 OF 3(9511- )

Click highlighted areas on diagram

diagram 67491A 67492A 67499 67601 67601A 67601B 67601B 67602 67625A 68170 69751E 9018906034 9090467026 9354016025
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-35020C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

BLACK,TRIM1#,4#

 1
67491-35020C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 1
67491-35010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(6 ｽﾋﾟ-ｶ),BLACK,TRIM1#

 1
67491-35020C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
67491-35010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(6 ｽﾋﾟ-ｶ),BLACK,TRIM1#,4#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-35020C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

BLACK,TRIM1#,4#

 1
67492-35010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(6 ｽﾋﾟ-ｶ),BLACK,TRIM1#

 1
67492-35020C0

KZN185,RZN185,VZN185

BLACK,TRIM1#

 1
67492-35010C0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(6 ｽﾋﾟ-ｶ),BLACK,TRIM1#,4#

 1
67492-35020C0

KZN185,RZN185..SSR

BLACK,TRIM1#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-89101

KDN185,KZN185,RZN18#,VZN18#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-35300E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ﾄﾘﾑ = TYPE B-*104,OAK,TRIM4#

 1
67650-35300B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ﾄﾘﾑ = TYPE B-*104,MD.MOON MIST,TRIM1#

 1
67650-35290B1

KZN185,RZN185..SSR

ﾄﾘﾑ = TYPE D-*104,MD.MOON MIST,TRIM1#

 1
67610-3D230C0

KZN185,RZN185..4FC..SSRV

ﾘﾐﾃﾂﾄﾞ *(C),BLACK,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12050

KZN185,RZN185,VZN185

 14
67771-22040

KZN185,RZN185,VZN185

NO.2

 4
67771-12030

KZN185,RZN185,VZN185

NO.2

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07085E4

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#,NO.2

 2
90467-07066E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#,NO.1

 2
90467-07085B2

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#,NO.2

 2
90467-07066B4

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#,NO.1

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07085E4

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#,NO.2

 2
90467-07066E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#,NO.1

 2
90467-07085B2

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#,NO.2

 2
90467-07066B4

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#,NO.1

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-3D240B1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ﾄﾘﾑ = TYPE B-*104,MD.MOON MIST,TRIM1#

 1
67660-35140C0

KZN185,RZN185..4FC..SSRV

ﾘﾐﾃﾂﾄﾞ *(C),BLACK,TRIM1#

 1
67620-3D240E1

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ﾄﾘﾑ = TYPE B-*104,OAK,TRIM4#

 1
67620-3D230B1

KZN185,RZN185..SSR

ﾄﾘﾑ = TYPE D-*104,MD.MOON MIST,TRIM1#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-35010

KZN185,RZN185,VZN185

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-35030

KDN185,KZN185,RZN18#,VZN18#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-35030E0

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

OAK,TRIM4#

 2
69751-35030B0

KZN185,RZN18#,VZN18#

MD.MOON MIST,TRIM1#

 2
Common parts
90189-06034
90904-67026
93540-16025

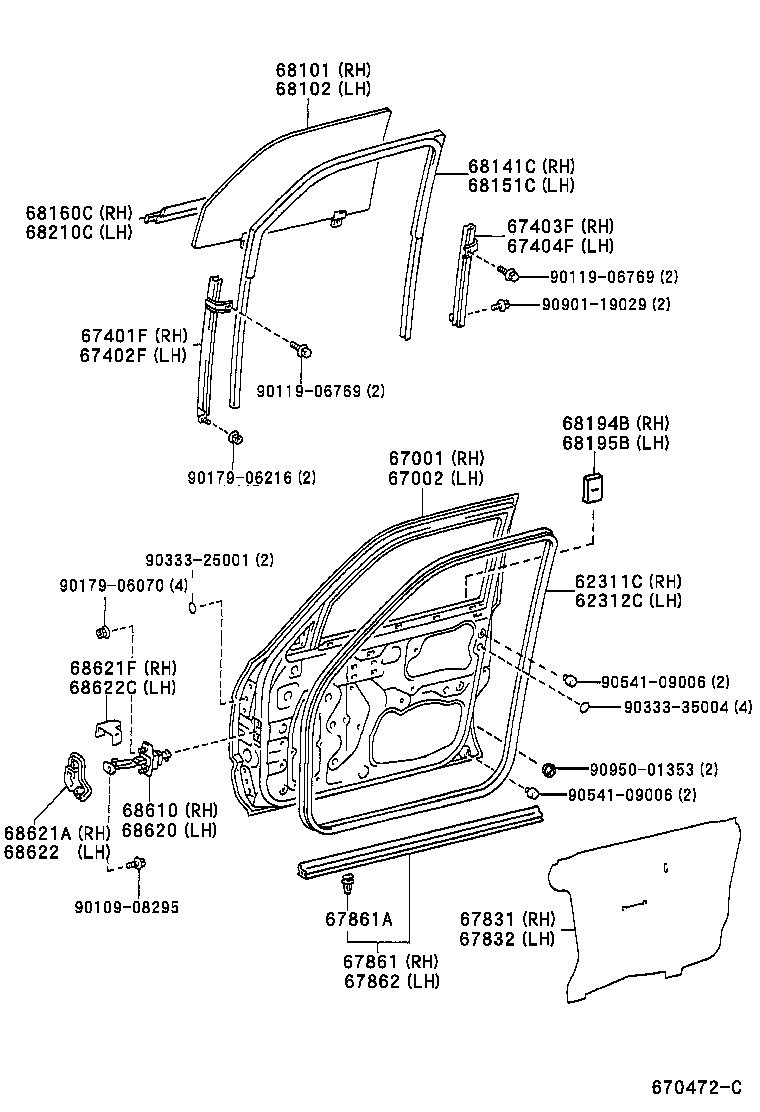

ILLUST NO. 2 OF 3(9511- )

Click highlighted areas on diagram

diagram 62311C 62312C 67001 67002 67401F 67402F 67403F 67404F 67831 67832 67861 67861A 67862 68101 68102 68141C 68151C 68160C 68194B 68195B 68210C 68610 68620 68621A 68621F 68622 68622C 9010908295 9011906769 9011906769 9017906070 9017906216 9033325001 9033335004 9054109006 9054109006 9090119029 9095001353
Part # Description Qty Price
62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-35010

KZN185,RZN185,VZN185

 1
62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-35010

KZN185,RZN185,VZN185

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-35330

KZN185,RZN185,VZN185..WIB

 1
67001-35331

KZN185,RZN185,VZN185..WIB

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-35340

KZN185,RZN185,VZN185..WIB

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-35030

KDN185,KZN185,RZN18#,VZN18#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-35040

KDN185,KZN185,RZN18#,VZN18#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-35040

KDN185,KZN185,RZN18#,VZN18#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-35040

KDN185,KZN185,RZN18#,VZN18#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-35050

KDN185,KZN185,RZN18#,VZN18#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-35030

KDN185,KZN185,RZN18#,VZN18#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-35040

KDN185,KZN185,RZN18#,VZN18#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-12150

KDN185,KZN185,RZN18#,VZN18#

 14
67862 - WEATHERSTRIP, FRONT DOOR, LH
67861-35040

KDN185,KZN185,RZN18#,VZN18#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-35150

KZN185,RZN185..SSR,SSRV

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-35150

KZN185,RZN185..SSR,SSRV

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-35020

KZN185,RZN185,VZN185

 1
68141-35022

KDN185,KZN185,RZN18#,VZN18#

 1
68141-35021

KZN185,RZN185,VZN185

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-35022

KDN185,KZN185,RZN18#,VZN18#

 1
68151-35021

KZN185,RZN185,VZN185

 1
68151-35020

KZN185,RZN185,VZN185

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-35010

KDN185,KZN185,RZN18#,VZN18#

 1
68194B - SEAL, FRONT DOOR BELT, REAR RH
68194-35010

KZN185,RZN185,VZN185

 1
68194-35011

KDN185,KZN185,RZN18#,VZN18#

 1
68195B - SEAL, FRONT DOOR BELT, REAR LH
68194-35010

KZN185,RZN185,VZN185

 1
68194-35011

KDN185,KZN185,RZN18#,VZN18#

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-35010

KDN185,KZN185,RZN18#,VZN18#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-35010

KDN185,KZN185,RZN18#,VZN18#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-35010

KDN185,KZN185,RZN18#,VZN18#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-35030

KDN185,KZN185,RZN18#,VZN18#

 1
68621F - COVER, FRONT DOOR CHECK, RH
68621-35020

KDN185,KZN185,RZN18#,VZN18#

 1
68622 - COVER, FRONT DOOR CHECK, LH
68621-35030

KDN185,KZN185,RZN18#,VZN18#

 1
68622C - COVER, FRONT DOOR CHECK, LH
68622-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90109-08295
90119-06769
90179-06070
90179-06216
90333-25001
90333-35004
90541-09006
90901-19029
90950-01353

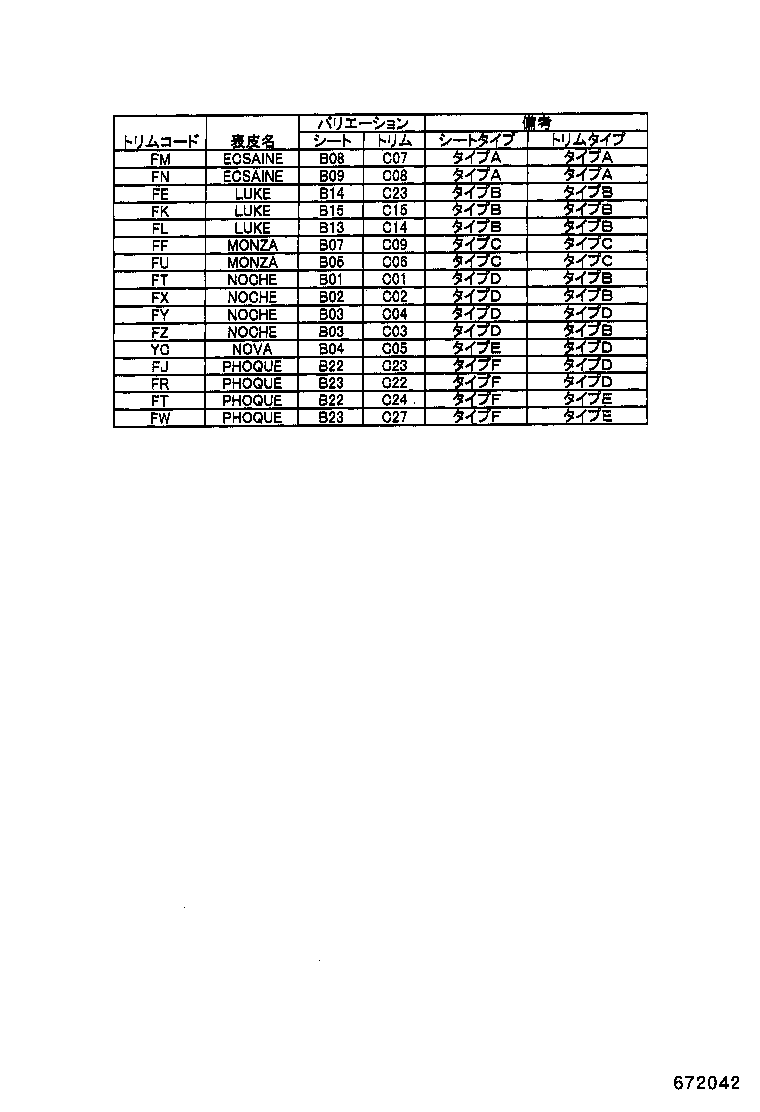

ILLUST NO. 3 OF 3(9511-0008)

Click highlighted areas on diagram

ﾄﾘﾑ ｺ-ﾄﾞ

diagram
Part # Description Qty Price
