KZN185W-GAPVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)1KZTE

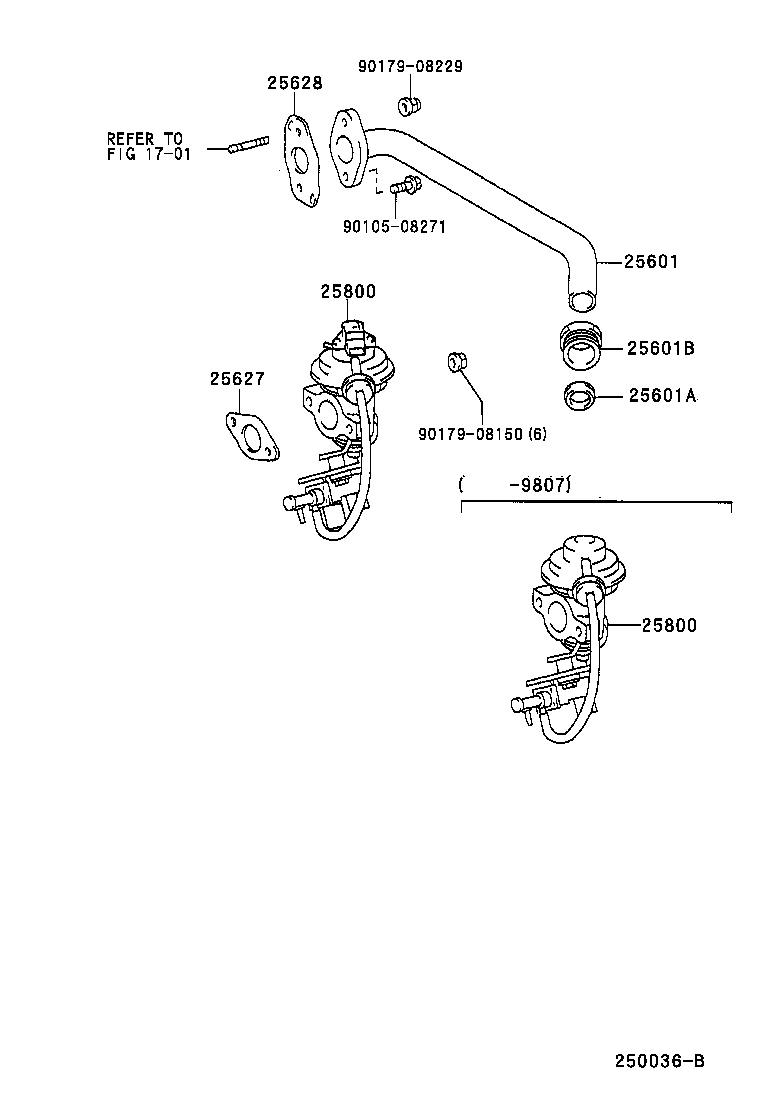

Click highlighted areas on diagram

diagram 1701 25601 25601A 25601B 25627 25628 25800 25800 9010508271 9017908150 9017908229
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-67010

1KZTE..KZN185..TDE

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-26001

1KZTE..KZN185

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33002

1KZTE..KZN185

 1
25627 - GASKET, EGR VALVE
25627-67010

1KZTE..KZN185

 1
25628 - GASKET, EGR INLET
25628-67010

1KZTE..KZN185

 1
25628-67020

1KZTE..KZN185

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-67021

1KZTE..KZN185

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-67021

1KZTE..KZN185

 1
Common parts
90105-08271
90179-08150
90179-08229
Linked diagrams
1701
