KZN185W-GAPVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )1K#

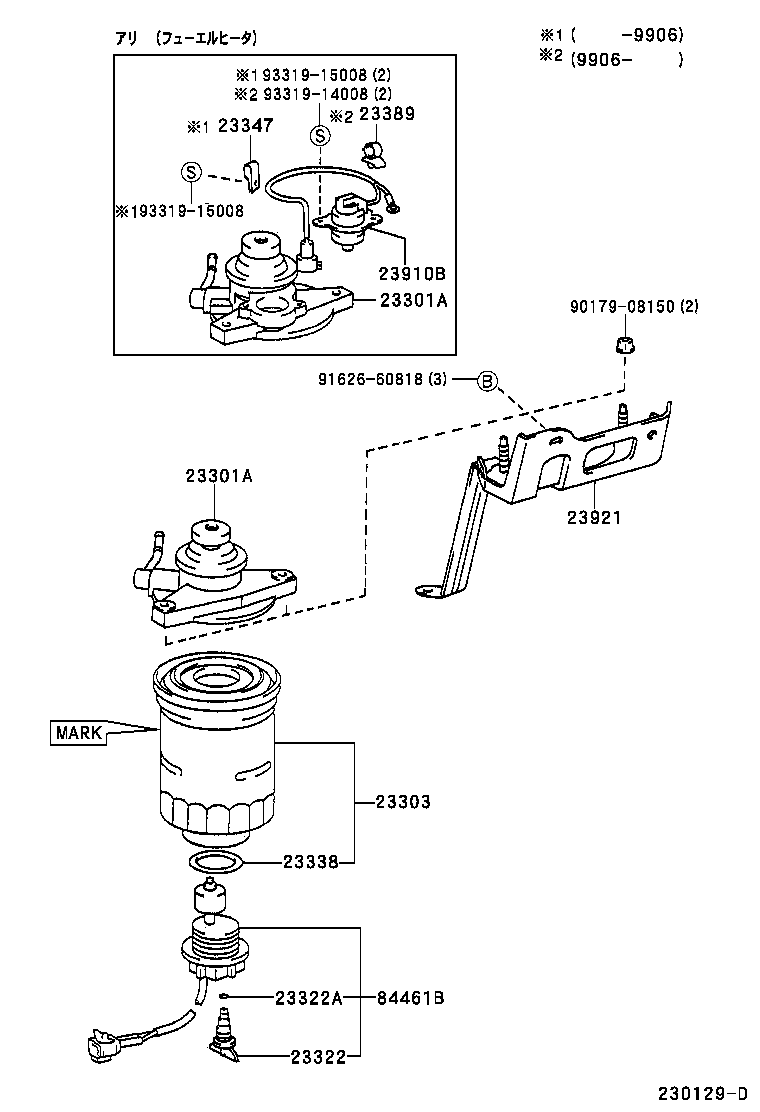

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23347 23389 23910B 23921 84461B 9017908150 9162660818 9331914008 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-67120

1KZTE..KZN185..5F..TDE;1KZTE..KZN185..WIB..4FC;1KZTE..KZN185..NOB..SSRX..TDE

ﾅｼ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23380-67130

1KZTE..KZN185

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ),*491

 1
23301A - CAP ASSY, FUEL FILTER
23380-67120

1KZTE..KZN185..5F..TDE;1KZTE..KZN185..WIB..4FC;1KZTE..KZN185..NOB..SSRX..TDE

ﾅｼ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23380-67130

1KZTE..KZN185

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ),*491

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1KZTE..KZN185

MARK 23303-64010

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

1K#..KDN185,KZN185

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1K#..KDN185,KZN185

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1K#..KDN185,KZN185

 1
23347 - CLIP, CORD
23347-54010

1KZTE..KZN185

 1
23910B - HEATER ASSY, FUEL
23910-67020

1KZTE..KZN185

 1
23921 - SUPPORT, FUEL FILTER
23921-67040

1K#..KDN185,KZN185

 1
84461B - SWITCH, LEVEL WARNING
84461-35110

KZN185

 1
84461-60070

KDN185,KZN185

 1
Common parts
90179-08150
91626-60818
93319-14008
93319-15008
