KZN185W-GAPVT (1995)
Toyota Hilux Surf
(9511-0008)1KZTE

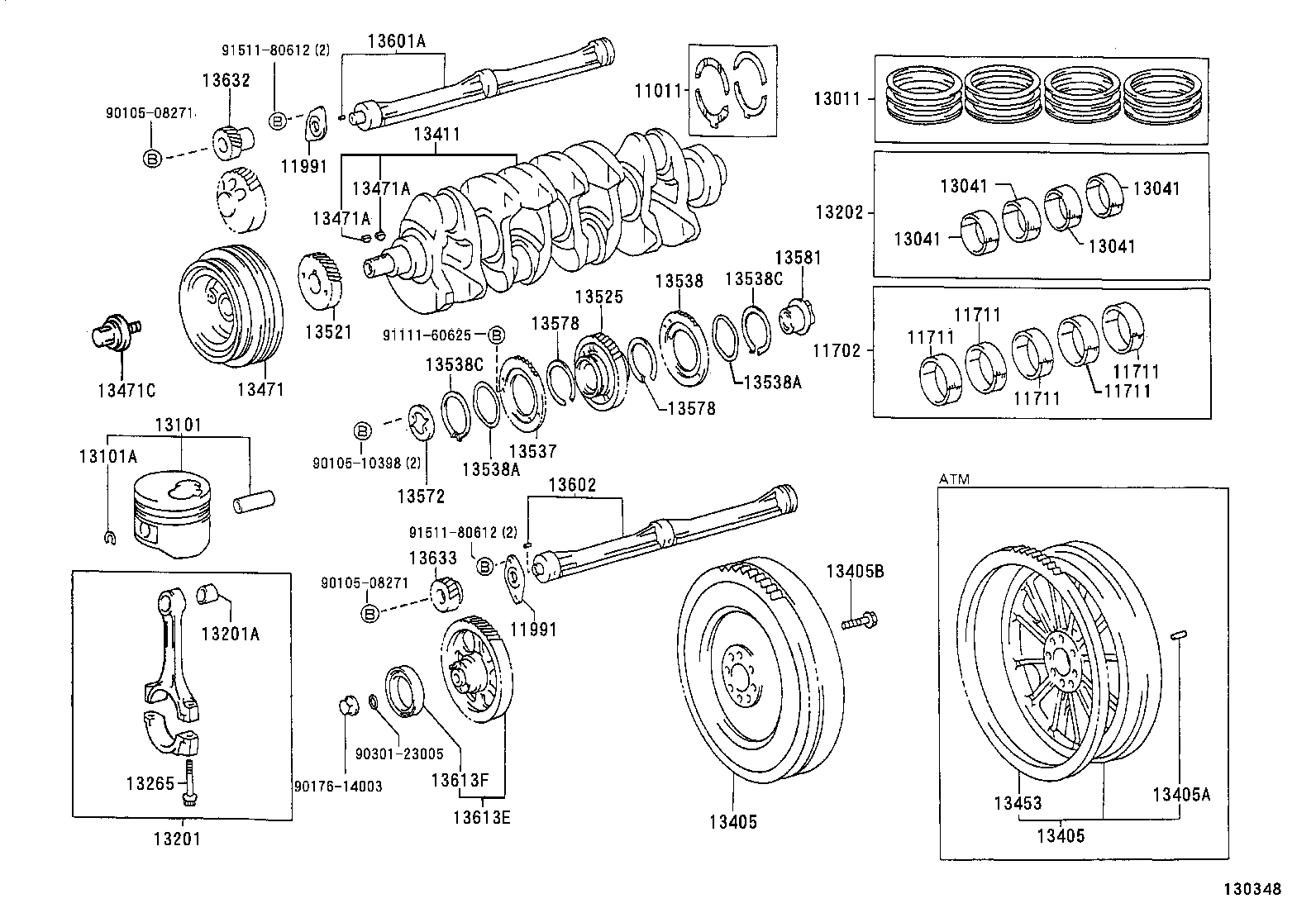

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-67020 |
1K#..KDN185,KZN185 O/S 0.125 |
1 | ||
| 11013-67020 |
1K#..KDN185,KZN185 O/S 0.250 |
1 | ||
| 11011-67020 |
1K#..KDN185,KZN185 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-67020 |
1KZTE..KZN185 U/S 0.50 |
1 | ||
| 11704-67020 |
1KZTE..KZN185 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6702005 |
1KZTE..KZN185 MARK 5 |
5 | ||
| 11701-6702003 |
1KZTE..KZN185 MARK 3 |
5 | ||
| 11701-6702004 |
1KZTE..KZN185 MARK 4 |
5 | ||
| 11701-6702002 |
1KZTE..KZN185 MARK 2 |
5 | ||
| 11701-6702006 |
1KZTE..KZN185 MARK 6 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6702005 |
1KZTE..KZN185 MARK 5 |
5 | ||
| 11701-6702003 |
1KZTE..KZN185 MARK 3 |
5 | ||
| 11701-6702004 |
1KZTE..KZN185 MARK 4 |
5 | ||
| 11701-6702002 |
1KZTE..KZN185 MARK 2 |
5 | ||
| 11701-6702006 |
1KZTE..KZN185 MARK 6 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6702005 |
1KZTE..KZN185 MARK 5 |
5 | ||
| 11701-6702003 |
1KZTE..KZN185 MARK 3 |
5 | ||
| 11701-6702004 |
1KZTE..KZN185 MARK 4 |
5 | ||
| 11701-6702002 |
1KZTE..KZN185 MARK 2 |
5 | ||
| 11701-6702006 |
1KZTE..KZN185 MARK 6 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6702005 |
1KZTE..KZN185 MARK 5 |
5 | ||
| 11701-6702003 |
1KZTE..KZN185 MARK 3 |
5 | ||
| 11701-6702004 |
1KZTE..KZN185 MARK 4 |
5 | ||
| 11701-6702002 |
1KZTE..KZN185 MARK 2 |
5 | ||
| 11701-6702006 |
1KZTE..KZN185 MARK 6 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-6702005 |
1KZTE..KZN185 MARK 5 |
5 | ||
| 11701-6702003 |
1KZTE..KZN185 MARK 3 |
5 | ||
| 11701-6702004 |
1KZTE..KZN185 MARK 4 |
5 | ||
| 11701-6702002 |
1KZTE..KZN185 MARK 2 |
5 | ||
| 11701-6702006 |
1KZTE..KZN185 MARK 6 |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1K#..KDN185,KZN185 |
2 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1K#..KDN185,KZN185 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-67020 |
1KZTE..KZN185 STD |
1 | ||
| 13014-67020 |
1KZTE..KZN185 O/S 0.75 |
1 | ||
| 13015-67020 |
1KZTE..KZN185 O/S 1.00 |
1 | ||
| 13013-67020 |
1KZTE..KZN185 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6703004 |
1KZTE..KZN185 MARK 4 |
4 | ||
| 13041-6703003 |
1KZTE..KZN185 MARK 3 |
4 | ||
| 13041-6703006 |
1KZTE..KZN185 MARK 6 |
4 | ||
| 13041-6703002 |
1KZTE..KZN185 MARK 2 |
4 | ||
| 13041-6703005 |
1KZTE..KZN185 MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6703004 |
1KZTE..KZN185 MARK 4 |
4 | ||
| 13041-6703003 |
1KZTE..KZN185 MARK 3 |
4 | ||
| 13041-6703006 |
1KZTE..KZN185 MARK 6 |
4 | ||
| 13041-6703002 |
1KZTE..KZN185 MARK 2 |
4 | ||
| 13041-6703005 |
1KZTE..KZN185 MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6703004 |
1KZTE..KZN185 MARK 4 |
4 | ||
| 13041-6703003 |
1KZTE..KZN185 MARK 3 |
4 | ||
| 13041-6703006 |
1KZTE..KZN185 MARK 6 |
4 | ||
| 13041-6703002 |
1KZTE..KZN185 MARK 2 |
4 | ||
| 13041-6703005 |
1KZTE..KZN185 MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6703004 |
1KZTE..KZN185 MARK 4 |
4 | ||
| 13041-6703003 |
1KZTE..KZN185 MARK 3 |
4 | ||
| 13041-6703006 |
1KZTE..KZN185 MARK 6 |
4 | ||
| 13041-6703002 |
1KZTE..KZN185 MARK 2 |
4 | ||
| 13041-6703005 |
1KZTE..KZN185 MARK 5 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-6703002 |
1KZTE..KZN185 STD,MARK 2 |
4 | ||
| 13101-6703001 |
1KZTE..KZN185 STD,MARK 1 |
4 | ||
| 13104-67020 |
1KZTE..KZN185 O/S 0.75 |
4 | ||
| 13101-6702001 |
1KZTE..KZN185 STD,MARK 1 |
4 | ||
| 13101-6702003 |
1KZTE..KZN185 STD,MARK 3 |
4 | ||
| 13105-67030 |
1KZTE..KZN185 O/S 1.00 |
4 | ||
| 13105-67020 |
1KZTE..KZN185 O/S 1.00 |
4 | ||
| 13103-67030 |
1KZTE..KZN185 O/S 0.50 |
4 | ||
| 13104-67030 |
1KZTE..KZN185 O/S 0.75 |
4 | ||
| 13101-6703003 |
1KZTE..KZN185 STD,MARK 3 |
4 | ||
| 13101-6702002 |
1KZTE..KZN185 STD,MARK 2 |
4 | ||
| 13103-67020 |
1KZTE..KZN185 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1K#..KDN185,KZN185 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-67020 |
1KZTE..KZN185 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73136 |
1KZTE..KZN185 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-67030 |
1KZTE..KZN185 U/S 0.50 |
1 | ||
| 13204-67030 |
1KZTE..KZN185 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67020 |
1KZTE..KZN185 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-67030 |
1K#..KDN185,KZN185..4FC |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-67030 |
1K#..KDN185,KZN185..4FC |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
1K#..KDN185,KZN185..4FC 長さ=15,外径=5 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-67010 |
1KZTE..KZN185 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-67020 |
1KZTE..KZN185..4FC..SSRX..TDE;1KZTE..KZN185..4FC..(SSRG,SSRV) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-67020 |
1KZTE..KZN185 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
1K#..KDN185,KZN185 |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
1K#..KDN185,KZN185 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-18003 |
1K#..KDN185,KZN185 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-67020 |
1K#..KDN185,KZN185 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-67900 |
1K#..KDN185,KZN185 |
1 | ||
| 13537 - GEAR, IDLE SUB, NO.1 | ||||
| 13537-67900 |
1K#..KDN185,KZN185 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-67900 |
1K#..KDN185,KZN185 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1K#..KDN185,KZN185 |
2 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1K#..KDN185,KZN185 |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1K#..KDN185,KZN185 |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1K#..KDN185,KZN185 |
2 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-67041 |
1K#..KDN185,KZN185 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1K#..KDN185,KZN185 |
2 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1K#..KDN185,KZN185 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-67041 |
1K#..KDN185,KZN185 |
1 | ||
| 13601A - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-67010 |
1KZTE..KZN185 |
1 | ||
| 13602 - BALANCESHAFT SUB-ASSY, NO.2 | ||||
| 13602-67010 |
1KZTE..KZN185 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13613-67900 |
1KZTE..KZN185 |
1 | ||
| 13613F - BEARING, RADIAL BALL | ||||
| 90363-60004 |
1KZTE..KZN185 |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-67010 |
1K#..KDN185,KZN185 |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-67010 |
1K#..KDN185,KZN185 |
1 | ||
| Common parts | ||||
| 90105-08271 | ||||
| 90105-10398 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 91111-60625 | ||||
| 91511-80612 | ||||
