KZN185W-GAPGT (1995)
Toyota Hilux Surf

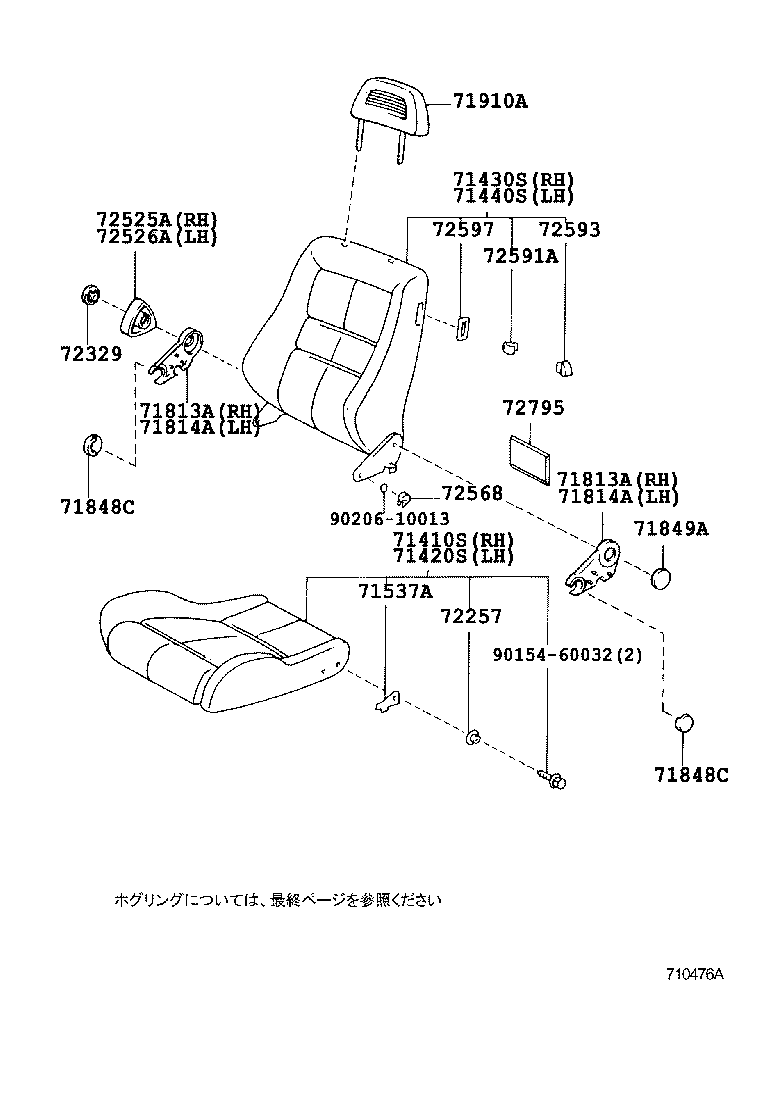

ILLUST NO. 1 OF 3(9511- )
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3D450B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71071-35540B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71071-35550B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71071-3D440B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-35540B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71071-3D440B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71071-3D450B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71071-35550B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3D420B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71073-3D430B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D-*104,MOON MIST,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3D440B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71073-3D420B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3D210B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71410-3D170B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-3D200B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-3D200B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71410-3D210B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71410-3D170B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3D750B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D-*104,MOON MIST,TRIM1# |
1 | ||
| 71430-3D770B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430-3D720B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-3D720B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71430-3D730B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71440-35690B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35050 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 71511-35040 |
KZN185,RZN185..SSR |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35050 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 71511-35040 |
KZN185,RZN185..SSR |
1 | ||
| 71517 - CLOTH, FRONT SEAT CUSHION UNDER | ||||
| 71517-35060 |
KZN185,RZN185..SSR |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-10010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35040 |
KZN185,RZN185..SSR |
1 | ||
| 71551-35050 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-35050 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 71551-35040 |
KZN185,RZN185..SSR |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-60080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-60030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35060 |
KZN185,RZN185,VZN185 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-35060 |
KZN185,RZN185,VZN185 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-35110 |
KZN185,RZN185..SSR |
1 | ||
| 71630-35100 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-35110 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-35050 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-35050 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35260B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
2 | ||
| 71910-35250B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
2 | ||
| 71910-35240C0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B3 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| Common parts | ||||
| 90520-01006 | ||||
| 91651-60614 | ||||
ILLUST NO. 3 OF 3(9511- )
ﾘﾔ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-35060 |
KZN185,RZN185,VZN185 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-35060 |
KZN185,RZN185,VZN185 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-35410B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71075-35390B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71075-35380B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-35210B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71076-35180B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71076-35190B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-35650B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71077-35660B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71077-35590B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-35350B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71078-35390B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71078-35400B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-35020 |
KDN185,KZN185,RZN18#,VZN18# 外側 |
1 | ||
| 71301-35030 |
KDN185,KZN185,RZN18#,VZN18# 内側 |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-35020 |
KDN185,KZN185,RZN18#,VZN18# 外側 |
1 | ||
| 71301-35030 |
KDN185,KZN185,RZN18#,VZN18# 内側 |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-35030 |
KDN185,KZN185,RZN18#,VZN18# 内側 |
1 | ||
| 71301-35020 |
KDN185,KZN185,RZN18#,VZN18# 外側 |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-35020 |
KDN185,KZN185,RZN18#,VZN18# 外側 |
1 | ||
| 71301-35030 |
KDN185,KZN185,RZN18#,VZN18# 内側 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-35580B0 |
KZN185,VZN185..SSRG ***,ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71460-35560B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71460-35550B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-35310B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71470-35330B0 |
KZN185,VZN185..SSRG ***,ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71470-35300B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-35640B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D-*104,MOON MIST,TRIM1# |
1 | ||
| 71480-35660B0 |
KZN185,VZN185..SSRG ***,ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-35680B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-35410B0 |
KZN185,VZN185..SSRG ***,ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71490-35390B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71490-35420B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-35030 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71657 - CLOTH, REAR SEAT BACK UNDER | ||||
| 71657-35060 |
KZN185,VZN180;RZN185..SSRG,SSRV;RZN180,VZN185..SPR,SSRX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 71657 - CLOTH, REAR SEAT BACK UNDER | ||||
| 71657-35060 |
KZN185,VZN180;RZN185..SSRG,SSRV;RZN180,VZN185..SPR,SSRX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 71657 - CLOTH, REAR SEAT BACK UNDER | ||||
| 71657-35060 |
KZN185,VZN180;RZN185..SSRG,SSRV;RZN180,VZN185..SPR,SSRX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71769-60010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
12 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71769-60010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
12 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020B2 |
KZN185,RZN185,VZN185 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35230B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
2 | ||
| 71940-35250C0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,BLACK,TRIM1# |
2 | ||
| 71940-35220B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35230B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
2 | ||
| 71940-35250C0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,BLACK,TRIM1# |
2 | ||
| 71940-35220B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 72613C - STRIKER, REAR SEAT LOCK | ||||
| 72613-35030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 72613C - STRIKER, REAR SEAT LOCK | ||||
| 72613-35030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20050C0 |
KZN185,VZN185..SSRG BLACK,TRIM16 |
1 | ||
| 72646-20050B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20050C0 |
KZN185,VZN185..SSRG BLACK,TRIM16 |
1 | ||
| 72646-20050B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-20040B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-20040C1 |
KZN185,VZN185..SSRG BLACK,TRIM16 |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-20040B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
2 | ||
| 72658-20040C1 |
KZN185,VZN185..SSRG BLACK,TRIM16 |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-35010C1 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
1 | ||
| 72665-35010B0 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-35010C1 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
1 | ||
| 72666-35010B0 |
KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08202 | ||||
| 90105-08298 | ||||
| 90105-08368 | ||||
| 90159-60555 | ||||
| 91611-60616 | ||||
| 93560-54012 | ||||
| 93560-55014 | ||||
ILLUST NO. 1 OF 3(9511-0008)SSRG
ﾌﾛﾝﾄ ｼ-ﾄ;ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3D210B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71410-3D170B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-3D200B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-3D200B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71410-3D210B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71410-3D170B0 |
KZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3D750B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D-*104,MOON MIST,TRIM1# |
1 | ||
| 71430-3D770B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430-3D720B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-3D720B0 |
KZN185,RZN185..SSR ***,ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
1 | ||
| 71430-3D730B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ***,ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
1 | ||
| 71440-35690B0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-10010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1# |
4 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71814-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,外側 |
1 | ||
| 71813-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,内側 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71814-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,外側 |
1 | ||
| 71813-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,内側 |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71813-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,内側 |
1 | ||
| 71814-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,外側 |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71813-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,内側 |
1 | ||
| 71814-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1#,外側 |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-35010C0 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
2 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-35010C0 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
2 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71849-35010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35260B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｼ-ﾄ = TYPE D OR TYPE F-*104,MOON MIST,TRIM1# |
2 | ||
| 71910-35250B0 |
KZN185,RZN185..SSR ｼ-ﾄ = TYPE E-*104,MOONMIST,TRIM1# |
2 | ||
| 71910-35240C0 |
KZN185,RZN185,VZN185..SSRG ｼ-ﾄ = TYPE C-*104,BLACK,TRIM1# |
2 | ||
| 72257 - STRIKER, FRONT SEAT LOCK | ||||
| 72257-10010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1# |
4 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-35010C0 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-89105B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72525-35010C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-35010C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 72526-89101B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72568 - PLATE, RECLINING BOLT LOCK | ||||
| 72568-17010 |
KZN185,RZN185,VZN185..SSRG |
4 | ||
| 72591A - LEVER, RECLINING REMOTE CONTROL | ||||
| 72591-10030 |
KZN185,RZN185,VZN185..SSRG |
4 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-12010C0 |
KZN185,VZN185..SSRG BLACK,TRIM1# |
4 | ||
| 72597 - BEZEL, RECLINING REMOTE CONTROL | ||||
| 72597-12010C0 |
KZN185,RZN185,VZN185..SSRG BLACK,TRIM1# |
4 | ||
| 72795 - PAD, LUMBAR SUPPORT | ||||
| 72795-12030 |
KZN185,RZN185,VZN185..SSRG |
2 | ||
| Common parts | ||||
| 90154-60032 | ||||
| 90206-10013 | ||||

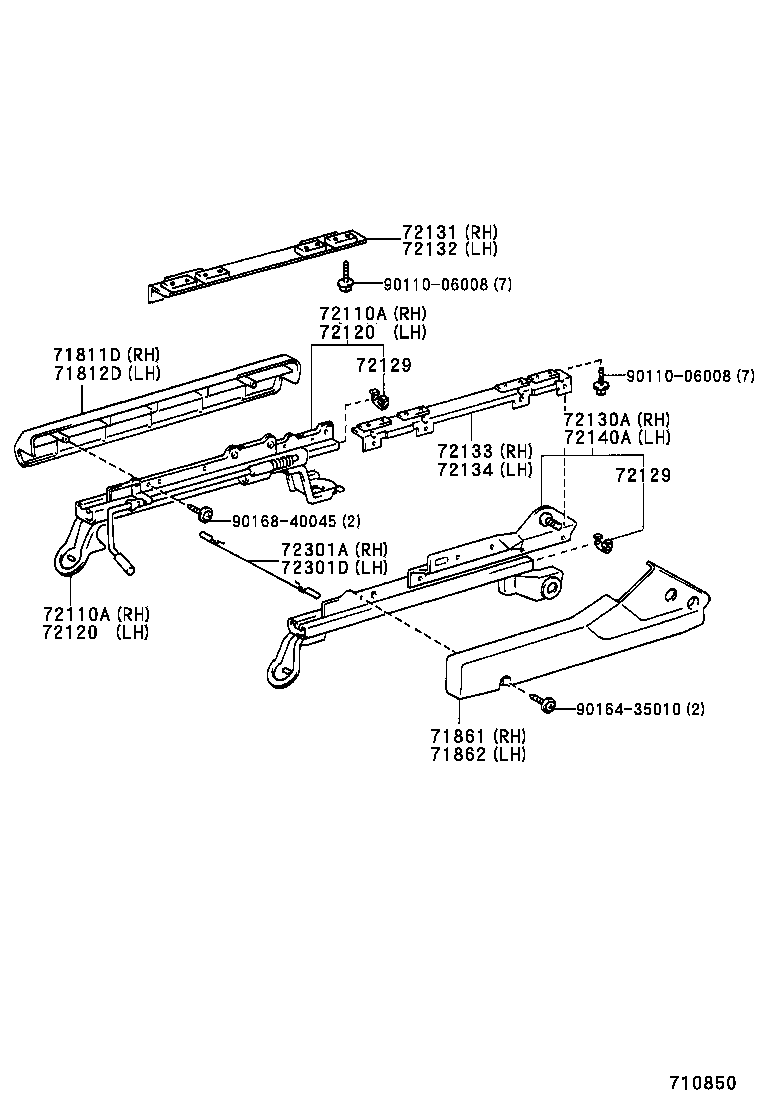

ILLUST NO. 2 OF 3(9511- )
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35040B0 |
KZN185,RZN185..SSR MD.MOON MIST,TRIM1# |
1 | ||
| 71811-35050B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 71812-35030C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35040B0 |
KZN185,RZN185..SSR MD.MOON MIST,TRIM1# |
1 | ||
| 71811-35050B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 71812-35030C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35030C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71812-35050B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-35060B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 71861-35040C0 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-35060B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 71861-35040C0 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-35040C0 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71862-35050B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 71875-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 71875-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 71875-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 71875-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71876-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 71876-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-35080 |
KZN185,RZN185..SSR |
1 | ||
| 72011-35070 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-35080 |
KZN185,RZN185..SSR |
1 | ||
| 72011-35070 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-35100 |
KZN185,RZN185,VZN185 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-35080 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72021-35070 |
KZN185,RZN185..SSR |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-35080 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 72021-35070 |
KZN185,RZN185..SSR |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-35090 |
KZN185,RZN185,VZN185 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35020B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1#,内側 |
1 | ||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72138-35010B0 |
RZN185..WIB..4FC;KZN185,VZN185..EFI,TDE;RZN185..5F..(SSR,SSRV) MD.MOON MIST,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-89103B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1#,外側 |
1 | ||
| 72138-35010B0 |
RZN185..WIB..4FC;KZN185,VZN185..EFI,TDE;RZN185..5F..(SSR,SSRV) MD.MOON MIST,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-35030 |
KZN185,VZN185..SSRG ｱﾘ(ﾚｶﾛｼ-ﾄ(FU16,FF16)) |
1 | ||
| 72301-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-35030 |
KZN185,VZN185..SSRG ｱﾘ(ﾚｶﾛｼ-ﾄ(FU16,FF16)) |
1 | ||
| 72301-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-35030 |
KZN185,VZN185..SSRG ｱﾘ(ﾚｶﾛｼ-ﾄ(FU16,FF16)) |
1 | ||
| 72301-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B4 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-89105B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72525-35010C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-89105B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 72525-35010C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-35010C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 72526-89101B1 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91512-61018 | ||||
| 91615-60825 | ||||
| 93249-54008 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
ILLUST NO. 2 OF 3(9511-0008)SSRG
ﾌﾛﾝﾄ ｼ-ﾄ;ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35040B0 |
KZN185,RZN185..SSR MD.MOON MIST,TRIM1# |
1 | ||
| 71811-35050B0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.MOON MIST,TRIM1# |
1 | ||
| 71812-35030C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35030C0 |
KZN185,RZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71812-35050B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-35060B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 71861-35040C0 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-35040C0 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16),BLACK,TRIM1# |
1 | ||
| 71862-35050B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-35030 |
KZN185,VZN185..SSRG |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-35030 |
KZN185,VZN185..SSRG |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-35040 |
KZN185,VZN185..SSRG |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-35040 |
KZN185,VZN185..SSRG |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 72129-21010 |
KZN185,VZN185..SSRG ﾚｶﾛｼ-ﾄ(FU16,FF16) |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-35030 |
KZN185,VZN185..SSRG |
1 | ||
| 72131 - BRACKET, FRONT OUTER SEAT TRACK UPPER RAIL, RH | ||||
| 72131-35020 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 72132 - BRACKET, FRONT OUTER SEAT TRACK UPPER RAIL, LH | ||||
| 72132-35010 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 72133 - BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, RH | ||||
| 72133-35010 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 72134 - BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH | ||||
| 72133-35010 |
KZN185,RZN185,VZN185..SSRG |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-35040 |
KZN185,VZN185..SSRG |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-35030 |
KZN185,VZN185..SSRG ｱﾘ(ﾚｶﾛｼ-ﾄ(FU16,FF16)) |
1 | ||
| 72301-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-35030 |
KZN185,VZN185..SSRG ｱﾘ(ﾚｶﾛｼ-ﾄ(FU16,FF16)) |
1 | ||
| 72301-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90110-06008 | ||||
| 90164-35010 | ||||
| 90168-40045 | ||||
(9511- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
