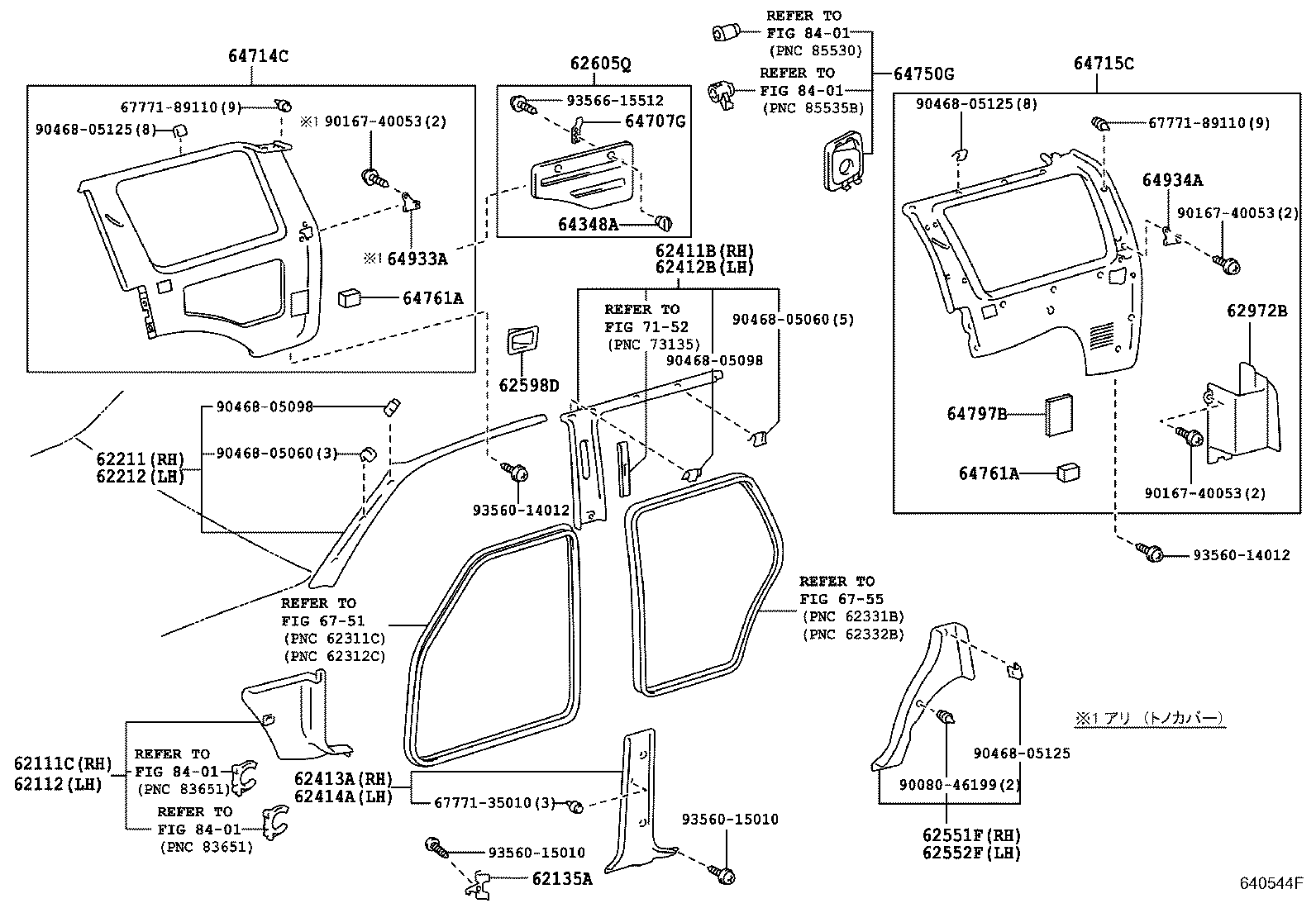

KZN185W-GAPGH (1996)
Toyota Hilux Surf
(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 62111-35030E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62111-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62111-35030E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62111-35030E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62111-35030B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62112-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62112-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62112-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62135A - RETAINER, COWL SIDE COVER | ||||
| 62135-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-35040E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62211-35040E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62211-35040B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62211-35040E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-35040B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62212-35040E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62212-35040E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62212-35040E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62411-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62411-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62411-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62412-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62412-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62412-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62413-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62413-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62413-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62414-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62414-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62414-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62551-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62551-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62551-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62552-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62552-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62552-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62597A - BOX, SIDE TRIM | ||||
| 62597-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 62605-35020E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 62605-35020E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 62605-35020B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 62605-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62972B - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62971-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-35120B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64714-35150B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64714-35140B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64730-35010E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64714-35170B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64730-35030B0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MOON MIST,TRIM1# |
1 | ||
| 64714-35150E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64730-35010B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64730-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64730-35030E0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MD.OAK,TRIM4# |
1 | ||
| 64714-35170E0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),OAK,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-35100B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64715-35100E0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),OAK,TRIM4# |
1 | ||
| 64740-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64740-35030B0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MOON MIST,TRIM1# |
1 | ||
| 64715-35080E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64740-35030E0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MD.OAK,TRIM4# |
1 | ||
| 64740-35010E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64740-35010B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64715-35080B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64750G - GARNISH ASSY, DECK SIDE, REAR RH | ||||
| 64750-35010E1 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64750-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64750-35010E1 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64750-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64750-35010B1 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64761A - SILENCER, DECK SIDE TRIM, NO.1 | ||||
| 64761-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 64761A - SILENCER, DECK SIDE TRIM, NO.1 | ||||
| 64761-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 64797B - SILENCER, DECK SIDE TRIM, NO.2 | ||||
| 64797-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-35010 |
KZN185,RZN18#,VZN18#..WIB..(SPR,SSRG,SSRX) |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-35010 |
KZN185,RZN18#,VZN18#..WIB..(SPR,SSRG,SSRX) |
1 | ||
| 64981A - STOPPER, QUARTER TRIM LID | ||||
| 64981-16021 |
KZN185,RZN185,VZN185 |
1 | ||
| 64982A - KNOB, QUARTER TRIM LID | ||||
| 64982-16020B2 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64982-16020E4 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-35010 | ||||
| 67771-89110 | ||||
| 90080-46199 | ||||
| 90167-40053 | ||||
| 90468-05060 | ||||
| 90468-05098 | ||||
| 90468-05125 | ||||
| 93560-14012 | ||||
| 93560-15010 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
| 7152 | ||||
(9807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 62111-35030E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62111-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62111-35030E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62111-35030E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62111-35030B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62112-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62112-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62112-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62135A - RETAINER, COWL SIDE COVER | ||||
| 62135-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-35040E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62211-35040E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62211-35040B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62211-35040E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-35040B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62212-35040E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62212-35040E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62212-35040E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62411-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62411-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62411-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62412-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62412-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62412-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62413-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62413-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62413-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62414-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62414-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62414-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62551-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62551-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62551-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX OAK,TRIM4# |
1 | ||
| 62552-35010E0 |
KZN185,RZN18#,VZN18#..WIB OAK,TRIM4# |
1 | ||
| 62552-35010B0 |
KZN185,RZN18#,VZN18# MD.MOON MIST,TRIM1# |
1 | ||
| 62552-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62598D - COVER, SIDE TRIM BOX | ||||
| 62598-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 62605-35020E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 62605-35020E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 62605-35020B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 62605-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 62972B - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62971-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 64348A - KNOB, PACKAGE TRAY TRIM | ||||
| 64348-35020E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
2 | ||
| 64348-35020B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
2 | ||
| 64348-35020E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
2 | ||
| 64707G - STOPPER, JACK COVER | ||||
| 64768-60010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-35120B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64714-35150B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64714-35140B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64730-35010E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64714-35170B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64730-35030B0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MOON MIST,TRIM1# |
1 | ||
| 64714-35150E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64730-35010B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64730-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64730-35030E0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MD.OAK,TRIM4# |
1 | ||
| 64714-35170E0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),OAK,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-35100B0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),MD.MOON MIST,TRIM1# |
1 | ||
| 64715-35100E0 |
KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) ｱﾘ(ﾄﾉ ｶﾊﾞ-),OAK,TRIM4# |
1 | ||
| 64740-35010E0 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64740-35030B0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MOON MIST,TRIM1# |
1 | ||
| 64715-35080E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64740-35030E0 |
KZN185,RZN18#,VZN18#..WIB ｱﾘ(ﾄﾉｶﾊﾞ-),MD.OAK,TRIM4# |
1 | ||
| 64740-35010E0 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64740-35010B0 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64715-35080B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64750G - GARNISH ASSY, DECK SIDE, REAR RH | ||||
| 64750-35010E1 |
KZN185,RZN18#,VZN18#..WIB MD.OAK,TRIM4# |
1 | ||
| 64750-35010B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 64750-35010E1 |
KZN185,RZN18#,VZN18#..SPR,SSRG,SSRX MD.OAK,TRIM4# |
1 | ||
| 64750-35010E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 64750-35010B1 |
KZN185,RZN18#,VZN18# MOON MIST,TRIM1# |
1 | ||
| 64761A - SILENCER, DECK SIDE TRIM, NO.1 | ||||
| 64761-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 64761A - SILENCER, DECK SIDE TRIM, NO.1 | ||||
| 64761-35010 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 64797B - SILENCER, DECK SIDE TRIM, NO.2 | ||||
| 64797-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-35010 |
KZN185,RZN18#,VZN18#..WIB..(SPR,SSRG,SSRX) |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-35010 |
KZN185,RZN18#,VZN18#..WIB..(SPR,SSRG,SSRX) |
1 | ||
| Common parts | ||||
| 67771-35010 | ||||
| 67771-89110 | ||||
| 90080-46199 | ||||
| 90167-40053 | ||||
| 90468-05060 | ||||
| 90468-05098 | ||||
| 90468-05125 | ||||
| 93560-14012 | ||||
| 93560-15010 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
| 7152 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
