KZN185W-GAPGH (1996)

Toyota Hilux Surf

Production Jul 1996 - Aug 2000
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)KZN185 ; (0008- )KDN185

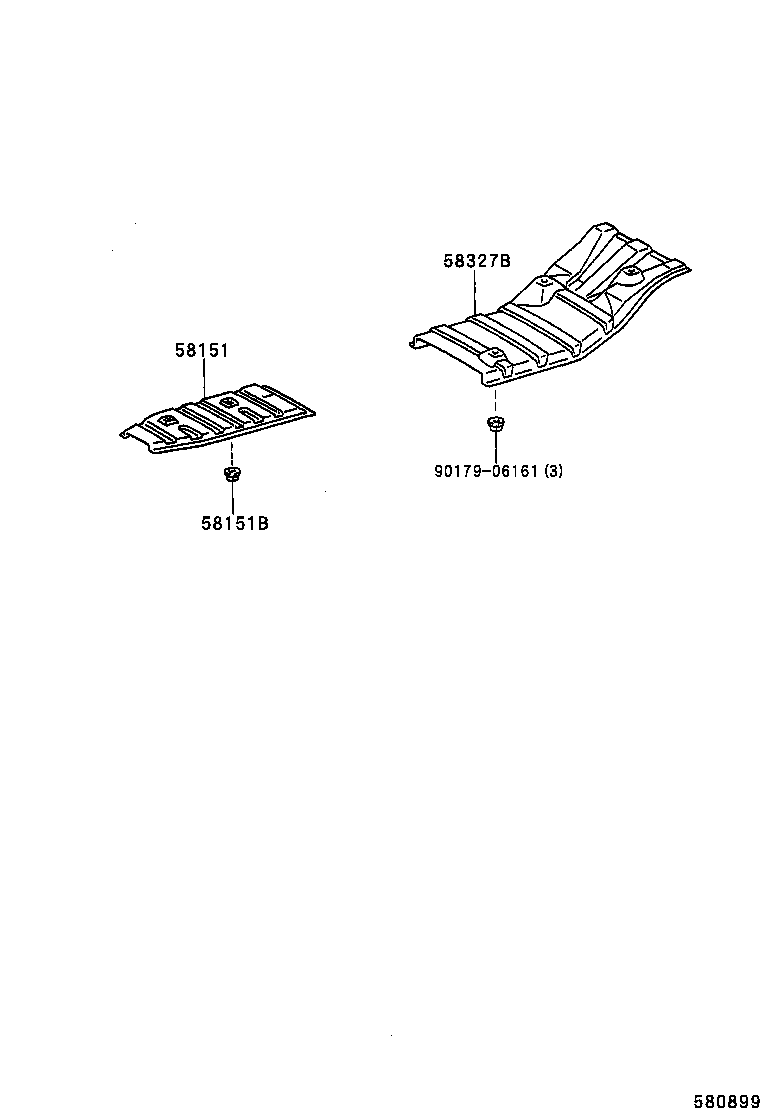

Click highlighted areas on diagram

diagram 58151 58151B 58327B 9017906161
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-35100

KDN185,KZN185

 1
58151B - NUT
90179-06161

KDN185,KZN185,RZN18#

 2
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90179-06161
