KZN185W-GAMXT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)

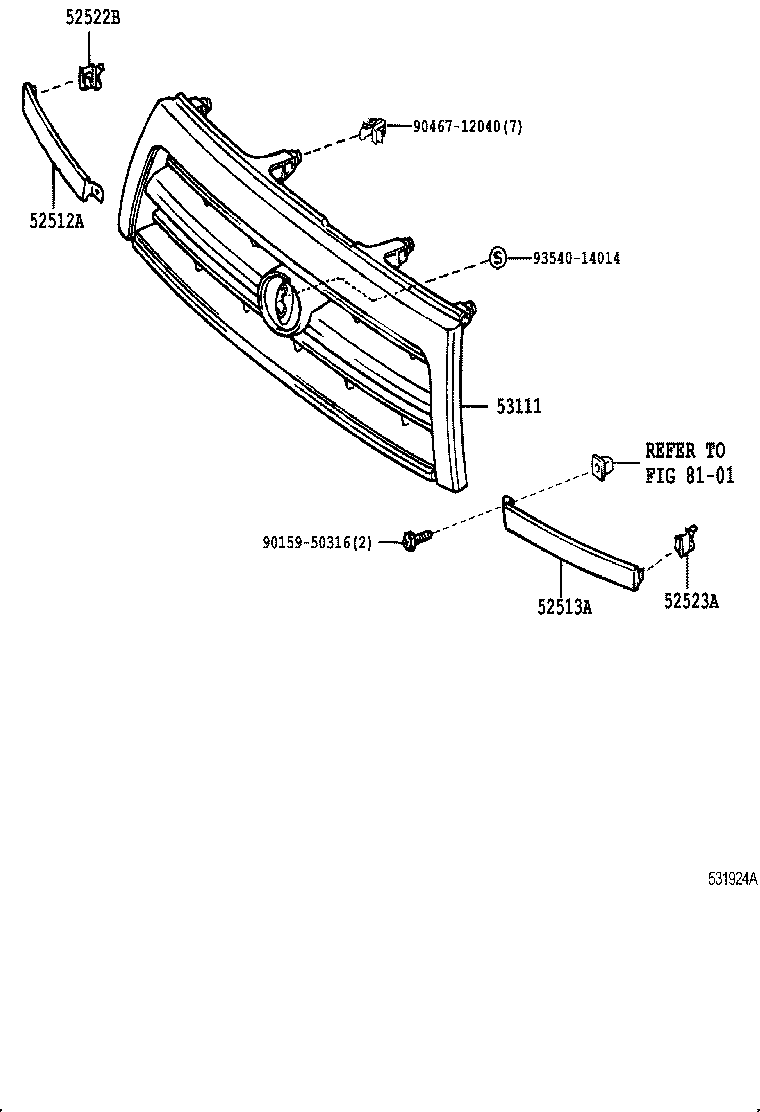

Click highlighted areas on diagram

diagram 52512A 52513A 52522B 52523A 53111 8101 9015950316 9046712040 9354014014
Part # Description Qty Price
52512A - FILLER, FRONT BUMPER, RH
52512-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52513A - FILLER, FRONT BUMPER, LH
52513-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52522B - RETAINER, FRONT BUMPER FILLER, NO.2
52522-35030

KDN185,KZN185,RZN18#,VZN18#

 1
52523A - RETAINER, FRONT BUMPER FILLER, NO.3
52523-35030

KDN185,KZN185,RZN18#,VZN18#

 1
53111 - GRILLE, RADIATOR
53111-35340

KZN185,RZN185,VZN185

ﾒｯｷ

 1
53111-35360D0

KZN185,RZN185,VZN185..WIB

RED MM,3K4

 1
53111-35360B0

KZN185,RZN185,VZN185..WIB

WARM GRAY PEARL ME.,1A5

 1
Common parts
90159-50316
90467-12040
93540-14014
Linked diagrams
8101
