KZN185W-GAMXH (1998)
Toyota Hilux Surf

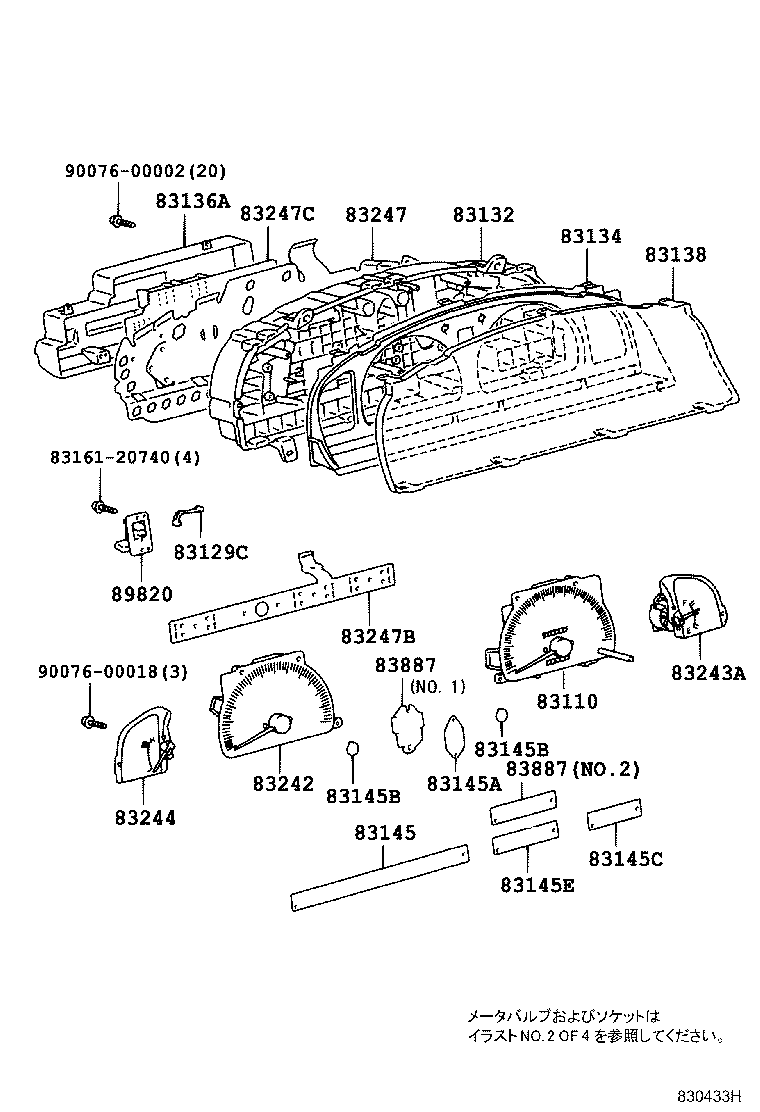

ILLUST NO. 1 OF 4(9807- )
ｺﾝﾋﾞﾈ-ｼﾖﾝﾒ-ﾀ,ｱﾅﾛｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-35020 |
KZN185 YAZAKI |
1 | ||
| 83220-35410 |
KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX YAZAKI |
1 | ||
| 83129C - WIRE, COMBINATION METER | ||||
| 83875-6A840 |
KZN185,RZN185..5F |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83841-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-3D200 |
KZN185,RZN185..5F |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83851-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83851-35040 |
KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83852-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-35060 |
KZN185 |
1 | ||
| 83831-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-35040 |
KZN185,VZN185..WIB |
1 | ||
| 83831-35860 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KZN185,RZN185,VZN185 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KZN185,RZN185,VZN185 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83832-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-35060 |
KZN185 |
1 | ||
| 83881-3D220 |
KDN185,KZN185..SSRV,SSRX |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-35060 |
KZN185 |
1 | ||
| 83882-3D220 |
KDN185,KZN185..SSRV,SSRX |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-3D200 |
KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX |
1 | ||
| 83883-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-35090 |
KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 83861-35060 |
KZN185..SSR,SSRV,SSRX |
1 | ||
| 83862-3D220 |
KZN185..5F |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83862-3D230 |
KZN185..SSRX |
1 | ||
| 83862-3D231 |
KDN185,KZN185..SSRV,SSRX |
1 | ||
| 83887 - PLATE, COMBINATION METER PRISM, NO.1 | ||||
| 83887-35040 |
KZN185,VZN185..WIB |
1 | ||
| 83887-35860 |
KZN185,RZN185..5F |
1 | ||
| 83887 - PLATE, COMBINATION METER PRISM, NO.1 | ||||
| 83887-35040 |
KZN185,VZN185..WIB |
1 | ||
| 83887-35860 |
KZN185,RZN185..5F |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 83161-20740 | ||||
| 90076-00002 | ||||
| 90076-00018 | ||||

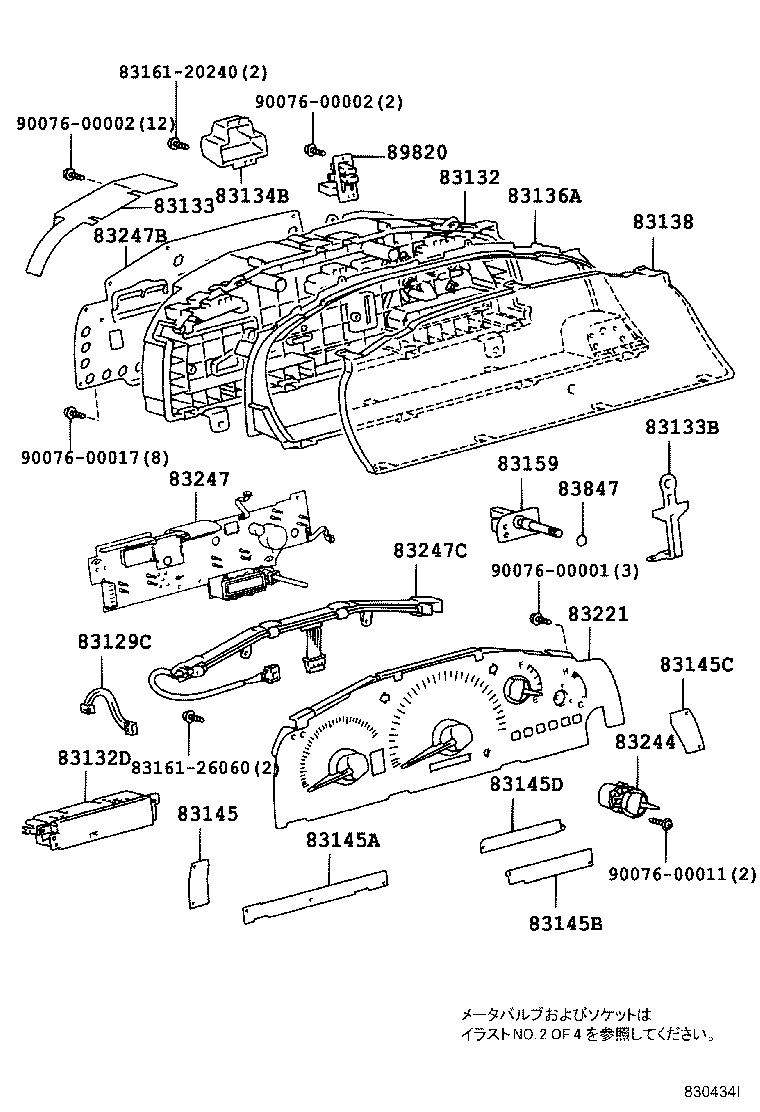

ILLUST NO. 1 OF 4(9807-0008)KZN185,RZN185,VZN185..WIB..4FC ; (0008- )WIB..SSRG,SSRX
ｺﾝﾋﾞﾈ-ｼﾖﾝﾒ-ﾀ,ｵﾌﾟﾃｲﾄﾛﾝ (TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129C - WIRE, COMBINATION METER | ||||
| 83875-6A840 |
KZN185,RZN185..5F |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83841-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83851-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83851-35040 |
KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83852-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-35060 |
KZN185 |
1 | ||
| 83831-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-35040 |
KZN185,VZN185..WIB |
1 | ||
| 83831-35860 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KZN185,RZN185,VZN185 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83832-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-3D200 |
KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX |
1 | ||
| 83883-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-35090 |
KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 83861-35060 |
KZN185..SSR,SSRV,SSRX |
1 | ||
| 83862-3D220 |
KZN185..5F |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83862-3D230 |
KZN185..SSRX |
1 | ||
| 83862-3D231 |
KDN185,KZN185..SSRV,SSRX |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-26060 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90076-00011 | ||||
| 90076-00017 | ||||

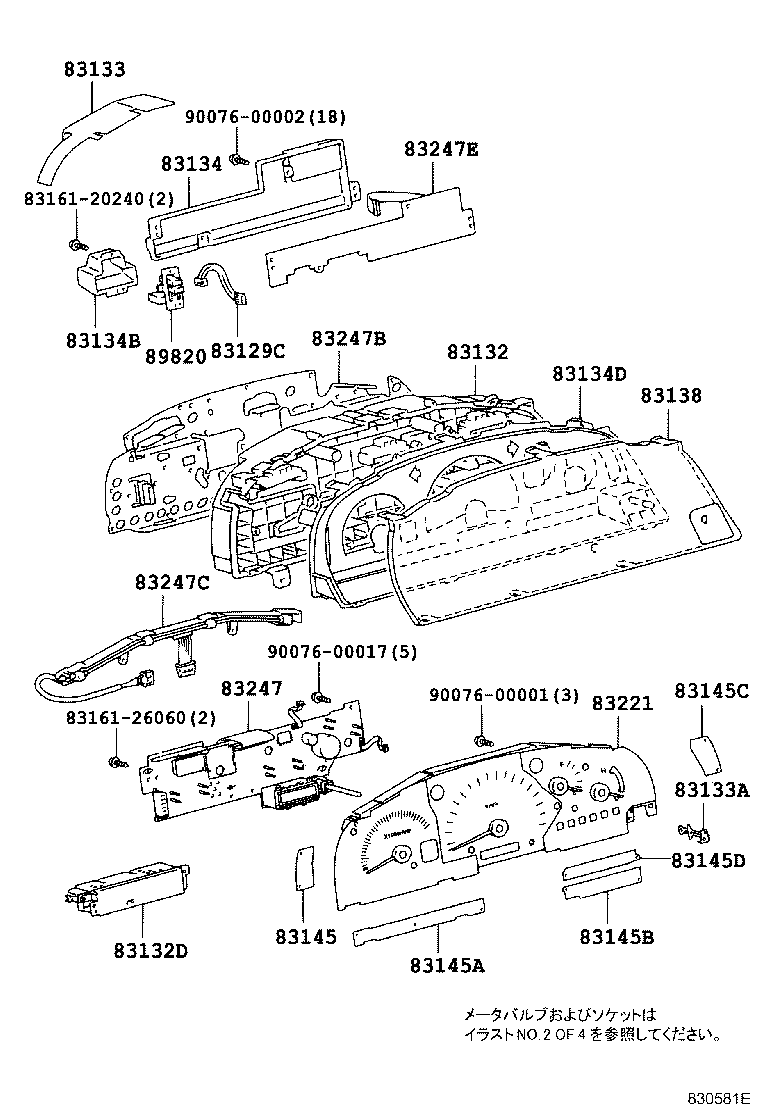

ILLUST NO. 1 OF 4(9906-0008)WIB..4FC ; (0008- )WIB..SSRG,SSRX
ｺﾝﾋﾞﾈ-ｼﾖﾝﾒ-ﾀ,ｵﾌﾟﾃｲﾄﾛﾝ (TYPE B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129C - WIRE, COMBINATION METER | ||||
| 83875-6A840 |
KZN185,RZN185..5F |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83841-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-3D200 |
KZN185,RZN185..5F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83852-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-35060 |
KZN185 |
1 | ||
| 83831-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-35040 |
KZN185,VZN185..WIB |
1 | ||
| 83831-35860 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KZN185,RZN185,VZN185 |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83832-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-35090 |
KZN185..WIB..(SSRV,SSRX) ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 83861-35060 |
KZN185..SSR,SSRV,SSRX |
1 | ||
| 83862-3D220 |
KZN185..5F |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-3D200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83862-3D230 |
KZN185..SSRX |
1 | ||
| 83862-3D231 |
KDN185,KZN185..SSRV,SSRX |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-26060 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90076-00017 | ||||

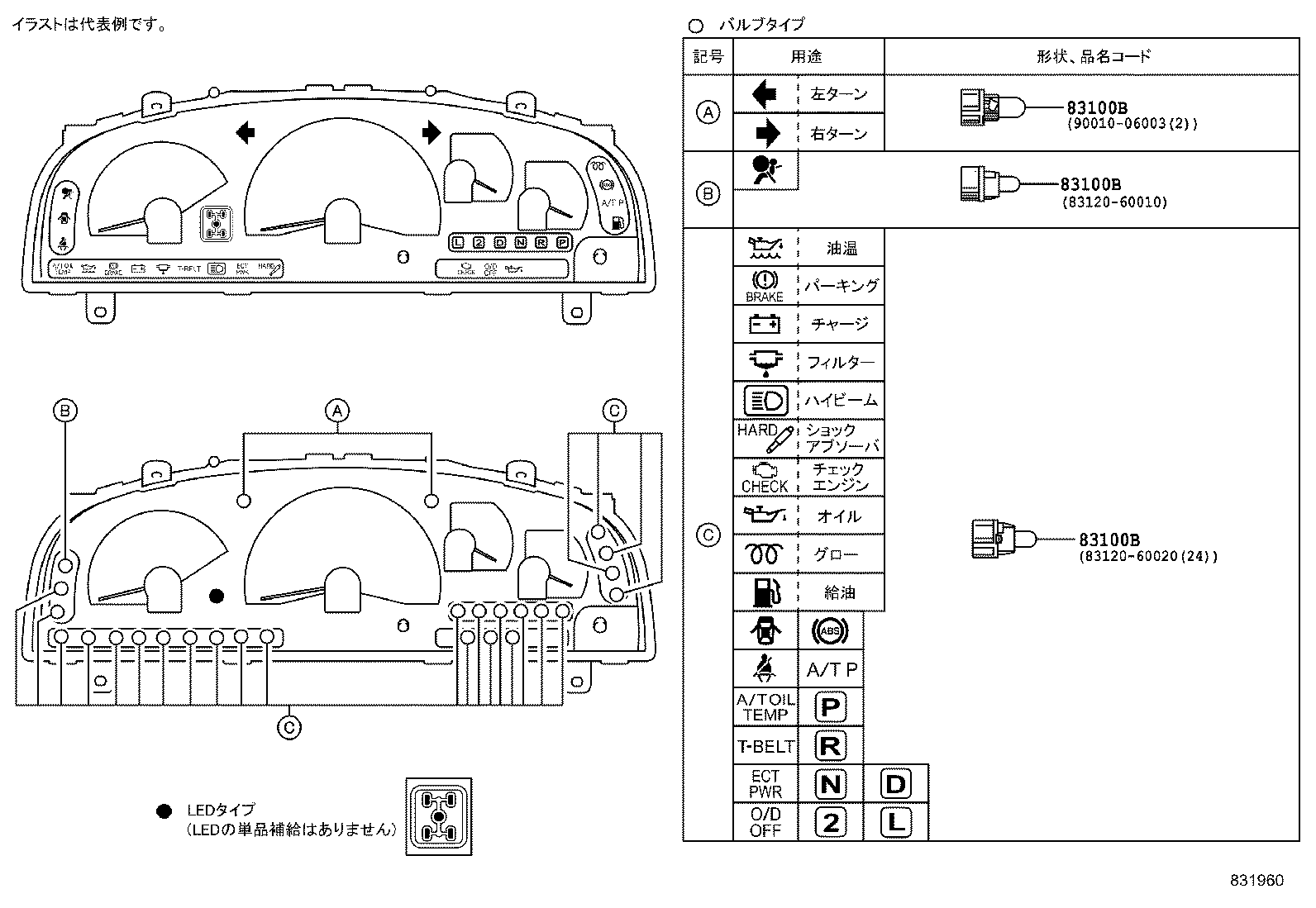

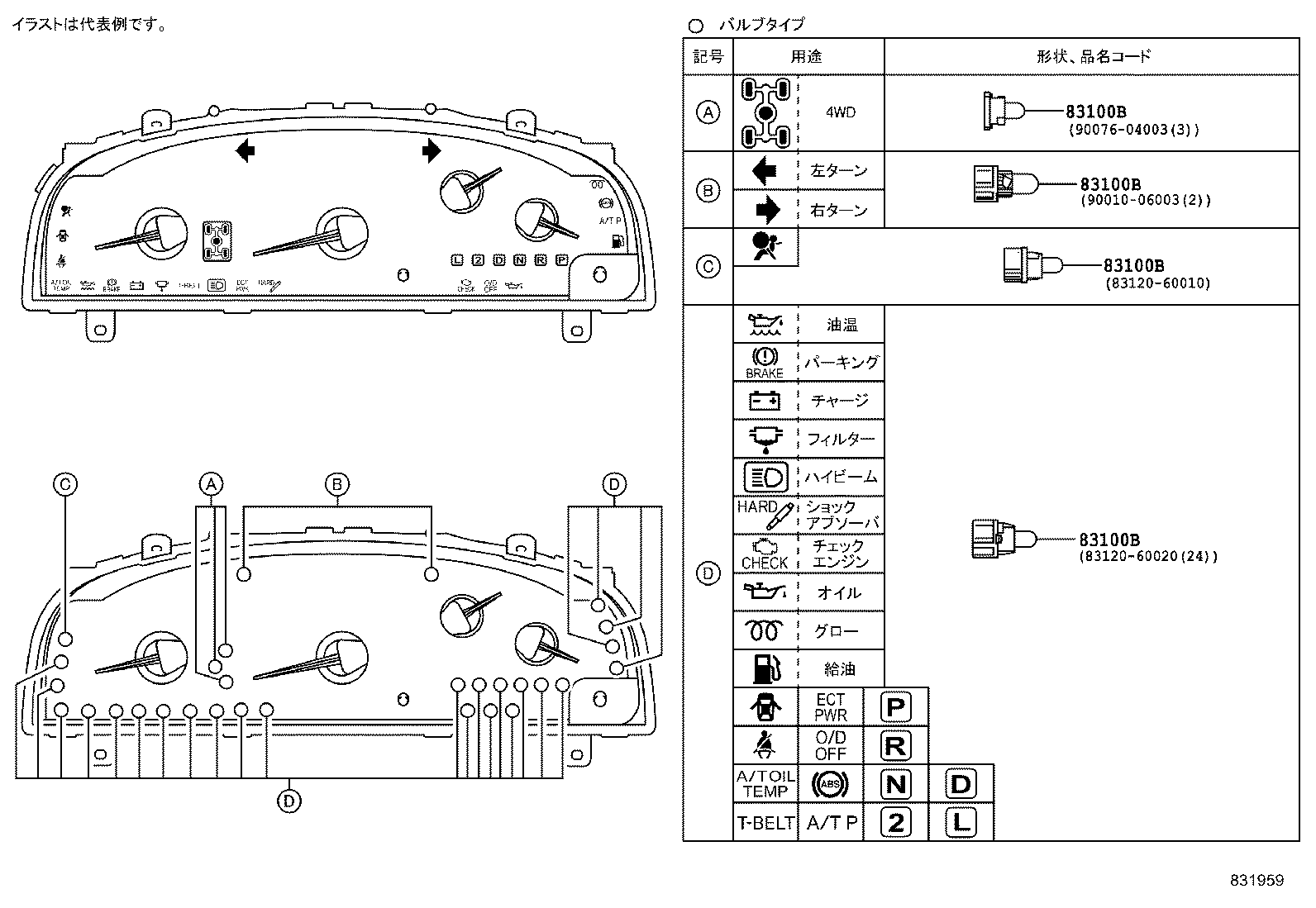

ILLUST NO. 2 OF 4(9807- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞ ﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||

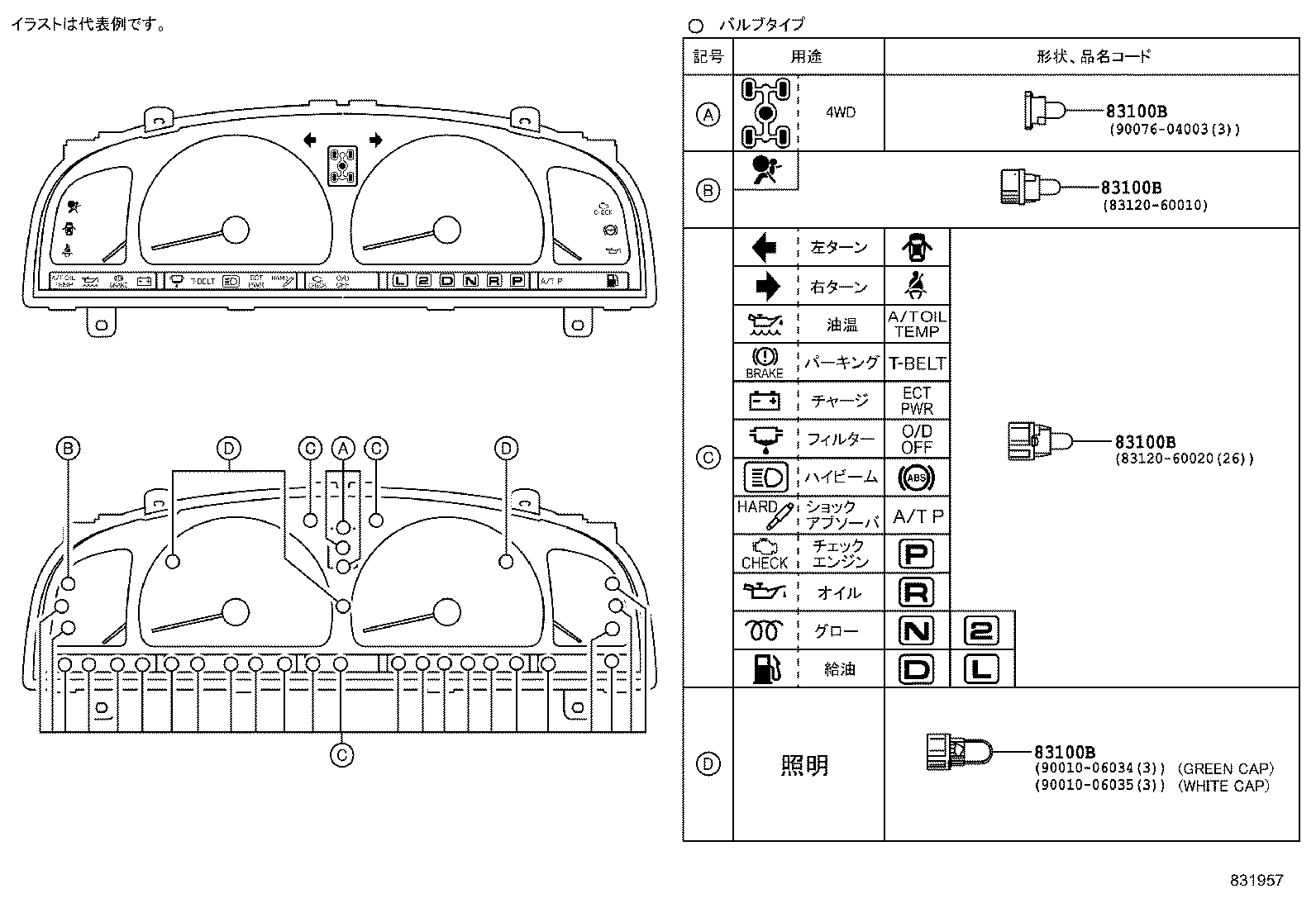

ILLUST NO. 2 OF 4(9807-0008)KZN185,RZN185,VZN185..WIB..4FC ; (0008- )WIB..SSRG,SSRX
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒｰﾀ)-(TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
ILLUST NO. 2 OF 4(9906-0008)WIB..4FC ; (0008- )WIB..SSRG,SSRX
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒｰﾀ)-(TYPE B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-36080 |
KZN185,RZN185,VZN185 12V 2.0W |
1 | ||
| 90076-04003 |
KZN185..WIB..(SSRV,SSRX) 12V 1.12W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
3 | ||
| 83109-24030 |
KZN185,RZN185,VZN185 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
KZN185..5F..(SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
14 | ||
| 99132-12034 |
KZN185,RZN185,VZN185 12V 3.4W |
1 | ||
| 90981-11018 |
KZN185..5F..(SSR,SSRV,SSRX) 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83120-60010 |
KZN185,RZN18#,VZN18# 14V 2.0W |
1 | ||
| 83120-60020 |
KZN185..5F 12V 1.4W,ｿｹｯﾄ付き |
16 | ||
| 90076-04003 |
KZN185..5F;KZN185,RZN185..NOB;KZN185,RZN185,VZN185..SSRG 12V 1.12W,ｿｹｯﾄ付き |
3 | ||
| 90010-06034 |
KZN185,RZN185,VZN185..SSR,SSRX 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
Part Price Details
Loading price information...
Part Number:
Price:
