KZN185W-GAMVT (1995)
Toyota Hilux Surf
Production
Nov 1995
-
Jul 1998
Engine
1KZTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
KZN185 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88411-22310 |
KZN185,RZN185,VZN185 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35470 |
KZN185 |
1 | ||
| 88320-35610 |
KZN185 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35250 |
KZN185 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||

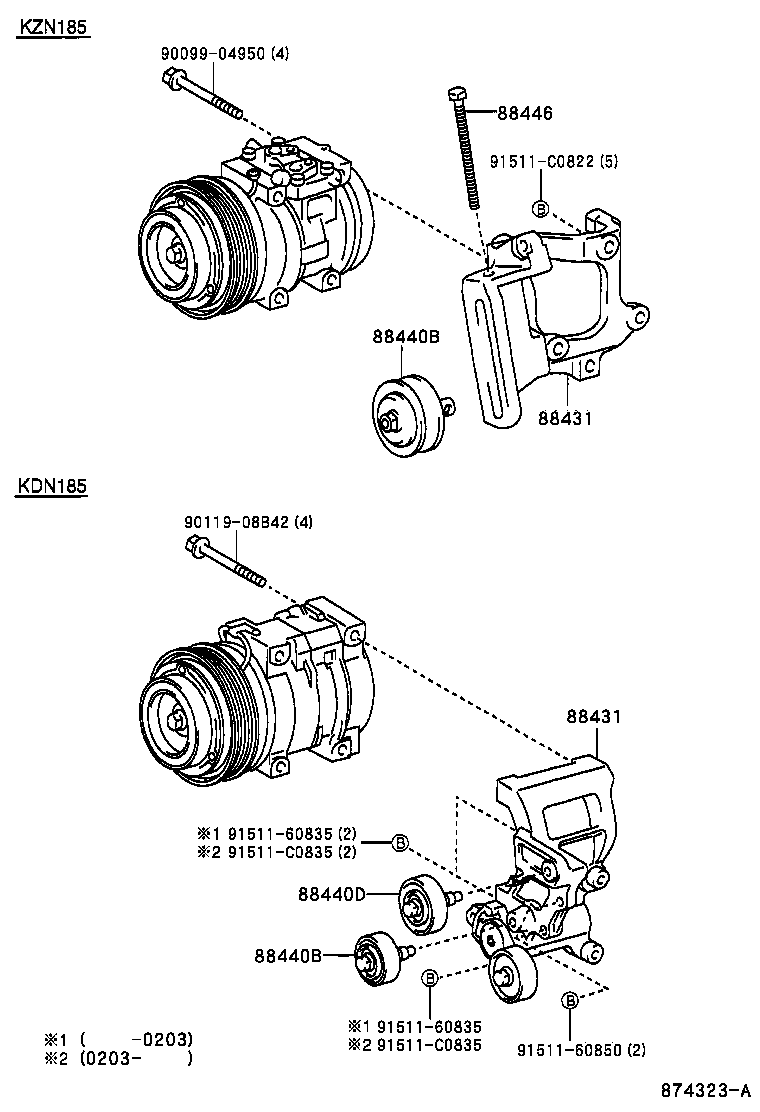

ILLUST NO. 2 OF 2(9511- )KDN185,KZN185
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60220 |
KZN185 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60220 |
KZN185 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-60050 |
KZN185 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-60050 |
KZN185 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60040 |
KZN185 |
1 | ||
| Common parts | ||||
| 90099-04950 | ||||
| 90119-08B42 | ||||
| 91511-60835 | ||||
| 91511-60850 | ||||
| 91511-C0822 | ||||
| 91511-C0835 | ||||
