KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )KDN185,KZN185..SSR,SSRV,SSRX

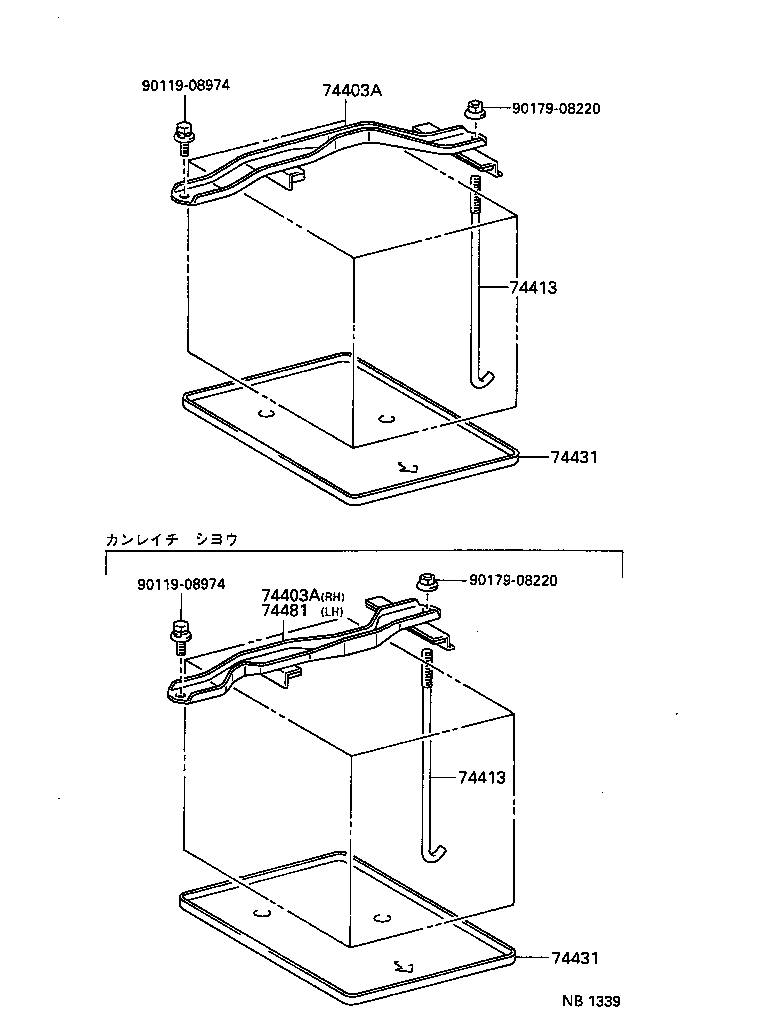

Click highlighted areas on diagram

diagram 74403A 74403A 74413 74413 74431 74431 74481 9011908974 9011908974 9017908220 9017908220
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-35010

KDN185,KZN185

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-35010

KDN185,KZN185

 1
74413 - BOLT, BATTERY CLAMP
74451-35060

RZN185,VZN185;KDN185,KZN185,RZN180,VZN180..SPR,SSR,SSRV,SSRX

 1
74451-35060

KDN185,KZN185

85D26R + 85D26L

 2
74413 - BOLT, BATTERY CLAMP
74451-35060

RZN185,VZN185;KDN185,KZN185,RZN180,VZN180..SPR,SSR,SSRV,SSRX

 1
74451-35060

KDN185,KZN185

85D26R + 85D26L

 2
74431 - TRAY, BATTERY
74431-35040

KDN185,KZN185..SSR,SSRV,SSRX

 1
74431-14030

KDN185,KZN185

85D26R + 85D26L

 2
74431 - TRAY, BATTERY
74431-35040

KDN185,KZN185..SSR,SSRV,SSRX

 1
74431-14030

KDN185,KZN185

85D26R + 85D26L

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-35140

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90119-08974
90179-08220
