KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )KDN185,KZN185

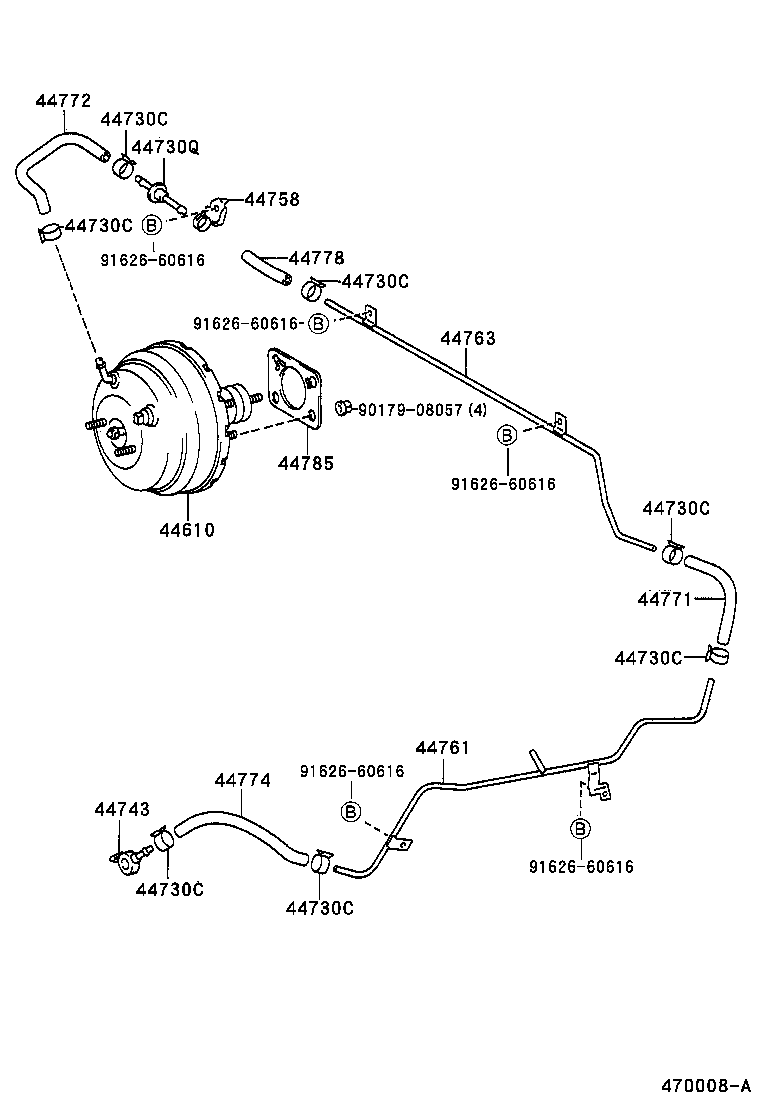

Click highlighted areas on diagram

diagram 44610 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730Q 44743 44758 44761 44763 44771 44772 44774 44778 44785 9017908057 9162660616 9162660616 9162660616 9162660616 9162660616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D680

KZN185

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KDN185,KZN185

 7
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-10010

KDN185,KZN185,RZN18#,VZN18#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09175

KDN185,KZN185

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35070

KDN185,KZN185,RZN18#,VZN18#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-35130

KZN185

 1
44763 - TUBE, BOOSTER VACUUM
44763-35040

KZN185..TDE

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-35190

KDN185,KZN185

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-35320

KDN185,KZN185,RZN18#,VZN18#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95447-09220

KZN185

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
95446-09100

KDN185,KZN185,RZN18#,VZN18#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90179-08057
91626-60616
