KZN185W-GAMVT (1995)
Toyota Hilux Surf

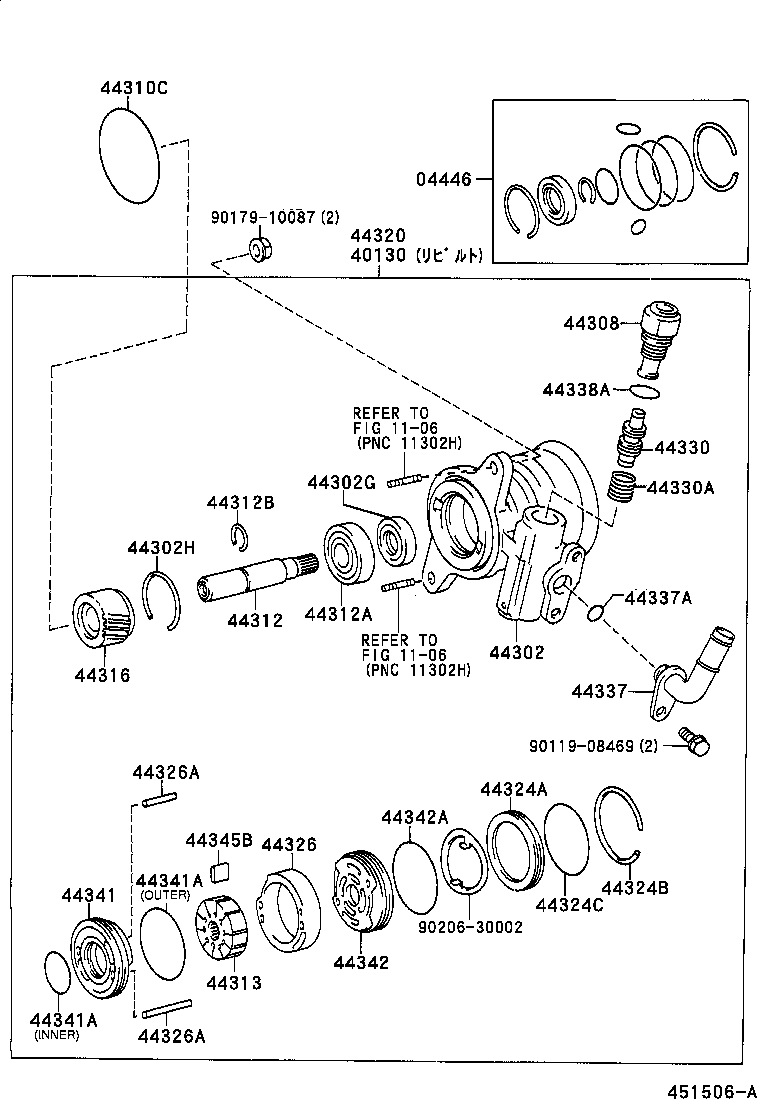

ILLUST NO. 1 OF 2(9511- )KDN185,KZN185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-26040 |
KDN185,KZN185 |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-35500 |
KZN185 TOYODA KOKI |
1 | ||
| 40130-35530 |
KDN185,KZN185 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-26020 |
KDN185,KZN185 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90316-17004 |
KDN185,KZN185 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90520-38016 |
KDN185,KZN185 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35090 |
KDN185,KZN185 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
KDN185,KZN185 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-60020 |
KDN185,KZN185 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17016 |
KDN185,KZN185 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
KDN185,KZN185 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26100 |
KDN185,KZN185,RZN18#,VZN18# ﾏｰｸ 4 |
1 | ||
| 44313-26090 |
KDN185,KZN185,RZN18#,VZN18# ﾏｰｸ 3 |
1 | ||
| 44313-26080 |
KDN185,KZN185,RZN18#,VZN18# ﾏｰｸ 2 |
1 | ||
| 44313-26070 |
KDN185,KZN185,RZN18#,VZN18# ﾏｰｸ 1 |
1 | ||
| 44313-26060 |
KDN185,KZN185,RZN18#,VZN18# ﾏｰｸ無し |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60030 |
KDN185,KZN185 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-35500 |
KZN185 |
1 | ||
| 44310-35530 |
KDN185,KZN185 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-60040 |
KDN185,KZN185 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
KDN185,KZN185 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
KDN185,KZN185 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12280 |
KDN185,KZN185 ﾏｰｸ 1 |
1 | ||
| 44325-12270 |
KDN185,KZN185 ﾏｰｸ無し |
1 | ||
| 44325-12290 |
KDN185,KZN185 ﾏｰｸ 2 |
1 | ||
| 44325-12310 |
KDN185,KZN185 ﾏｰｸ 4 |
1 | ||
| 44325-12300 |
KDN185,KZN185 ﾏｰｸ 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KDN185,KZN185 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
KDN185,KZN185 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KDN185,KZN185 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
KDN185,KZN185 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26220 |
KDN185,KZN185 ﾏｰｸ D |
1 | ||
| 44330-26210 |
KDN185,KZN185 ﾏｰｸ C |
1 | ||
| 44330-26190 |
KDN185,KZN185 ﾏｰｸ A |
1 | ||
| 44330-26230 |
KDN185,KZN185 ﾏｰｸ E |
1 | ||
| 44330-26200 |
KDN185,KZN185 ﾏｰｸ B |
1 | ||
| 44330-26240 |
KDN185,KZN185 ﾏｰｸ F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
KDN185,KZN185 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-35060 |
KDN185,KZN185 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
KZN185 |
1 | ||
| 90301-11016 |
KDN185,KZN185 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
KZN185,RZN185,VZN185 内径=19.5,外径=22.5 |
1 | ||
| 90301-19013 |
KDN185,KZN185,RZN18#,VZN18# 内径=19.2,外径=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-60010 |
KDN185,KZN185 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 |
KDN185,KZN185 内側 |
1 | ||
| 90301-53006 |
KDN185,KZN185 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 |
KDN185,KZN185 内側 |
1 | ||
| 90301-53006 |
KDN185,KZN185 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-60020 |
KDN185,KZN185 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53006 |
KDN185,KZN185 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-60010 |
KDN185,KZN185 長さ=15.000 |
10 | ||
| 44345-60030 |
KDN185,KZN185 長さ=14.996 |
10 | ||
| 44345-60020 |
KDN185,KZN185 長さ=14.998 |
10 | ||
| 44345-60040 |
KDN185,KZN185 長さ=14.994 |
10 | ||
| 44345-60050 |
KDN185,KZN185 長さ=14.992 |
10 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90179-10087 | ||||
| 90206-30002 | ||||
| Linked diagrams | ||||
| 1106 | ||||

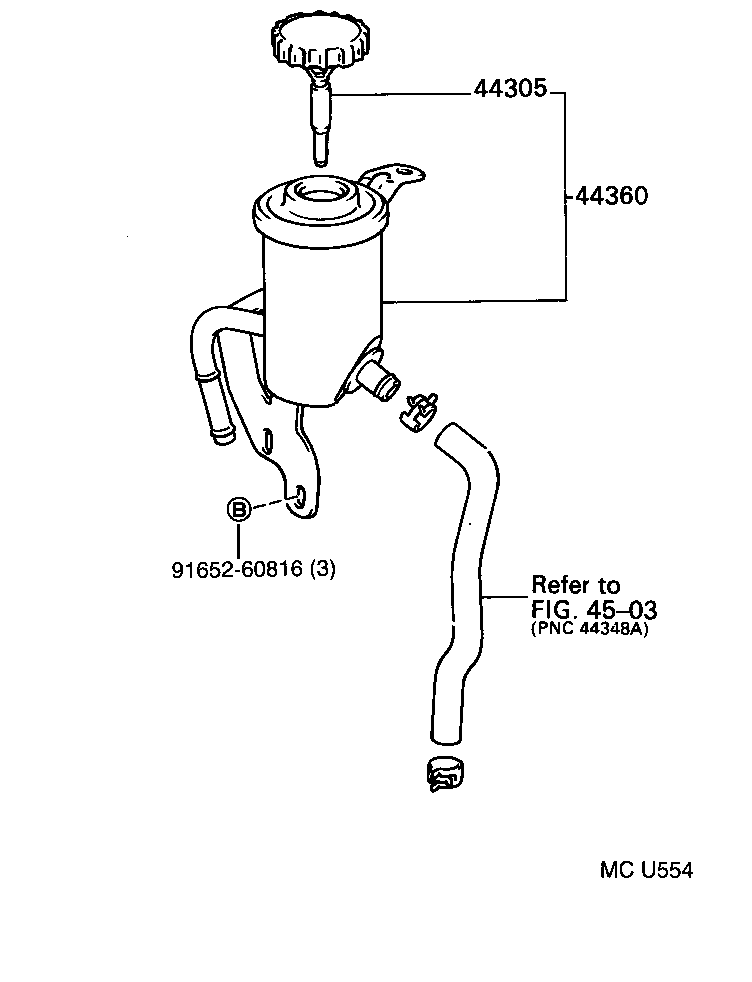

ILLUST NO. 2 OF 2(9511- )KDN185,KZN185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-24030 |
KDN185,KZN185 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-35130 |
KZN185 |
1 | ||
| Common parts | ||||
| 91652-60816 | ||||
| Linked diagrams | ||||
| 4503 | ||||
