KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)KZN185..5F

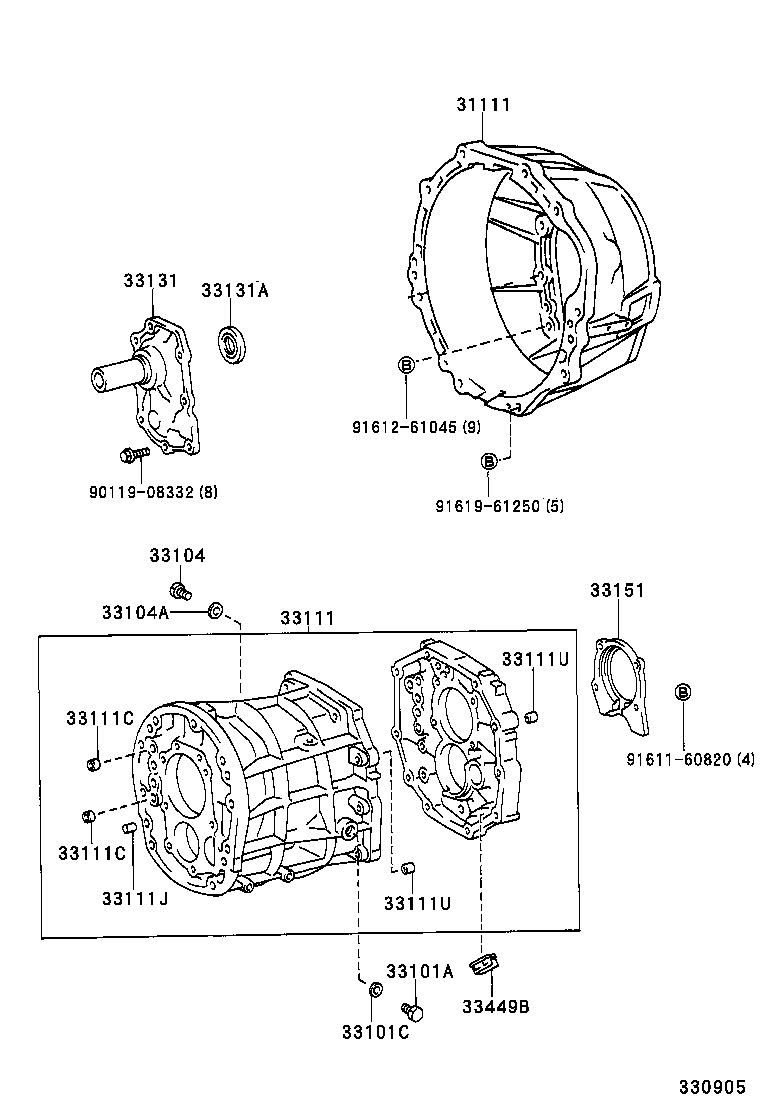

Click highlighted areas on diagram

R151F

diagram 31111 33101A 33101C 33104 33104A 33111 33111C 33111C 33111J 33111U 33111U 33131 33131A 33151 33449B 9011908332 9161160820 9161261045 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-35100

KZN185..5F

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

KZN185,RZN185..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

KZN185,RZN185..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

KZN185,RZN185..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

KZN185,RZN185..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35080

KZN185..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KZN185..5F

外径=14

 1
96411-41800

KZN185..5F

外径=18

 3
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KZN185..5F

外径=14

 1
96411-41800

KZN185..5F

外径=18

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

KZN185..5F

長さ=16,外径=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KZN185..5F

長さ=14,外径=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KZN185..5F

長さ=14,外径=15

 4
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031

KZN185..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

KZN185..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

KZN185..5F

 1
33449B - MAGNET, TRANSMISSION
33449-35030

KZN185..5F

 1
Common parts
90119-08332
91611-60820
91612-61045
91619-61250
